Product Specifications
| Prod Model: |
CJ19 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Usage: |
Switching Capacitors |
Product Description
General Description:

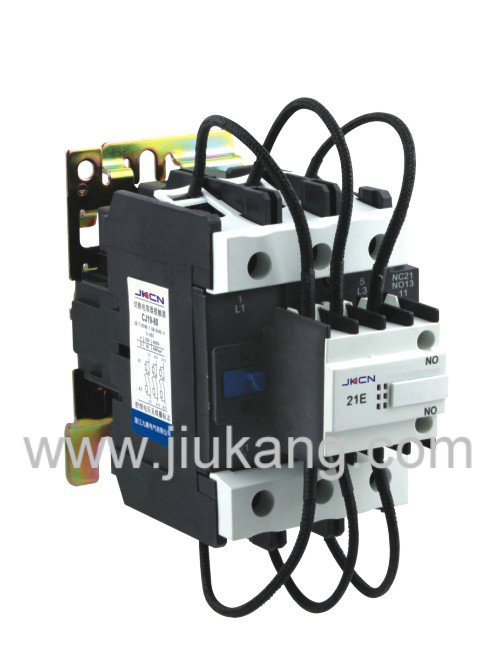

Model CJ19, CJ19B and CJ19C switching capacitor contactors( hearafter called " the contactor" for short) are the contactors sepecially used for make and break of low voltage shunt capacitors and widely used in reactive power used for make and break of capacitor up to 60 kvar electric power system of AC 50Hz and reated working oltage 380V for the purpose of improvement of power factor.
Main Feactures:
1. Rated current: 32~95A
2. Working voltage US5hz V: 220, 380vac
3. Rated curent for short-circuit protected fuse: 1.5~2.5In
4. Rated insulation voltage Ui 50Hz V: 500vac, 660vac
5. Conventional heating current of auxiliary contacts A: 10A
6. Mechnical life ten thousand times: 100Weight kg: About 0.57~ 0.6kg
Price Term: FOB, CNF, CIF
Established in 1993, Sino-U. S Joint Venture Zhejiang Jiukang Electric Co. Ltd. Is a joint venture possesssing factory building of 16800sqm. More than 500 employees and 20senior engineers and technicians.
The enterprise was certified ISO9001 International Quality Management System, ISO14001 International Environmental Management System. The products have approved National Compulsory Certificate CCC, CQC, European Communities CE Certificate, Environmental Protection RoHS certificate and American UL Certificate.
We mainly produces self-healing low-voltage shunt capacitors, reactive power compensation controller, high voltage capacitors, CBB60, CBB61, CBB65 and CD60 series AC motor capacitor and the other electrical appliances.
By adopting the latest Zn/Al compound metallized film material in the world and through advanced equipment introduced from Japan and Korea, Jiukang brand low-voltage capacitors are strictly produced according to National Standard and IEC standard.
We sincerely welcome mass of customers at home and overseas to come, talk about business and develop together.
