Product Specifications
| Material: |
Steel |
| Scale: |
Heavy Duty |
| Type: |

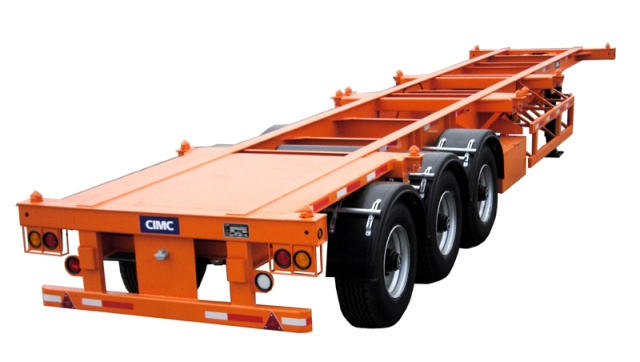

Semi-Trailer |
Product Description
Dimension:
Length: Approx 12, 395 mm
Width: Approx 2, 490 mm(including mud guard)
Height: Approx 1, 448mm @ unload
Weight:
Tare Weight(Tolerance 0~-4%): Approx7, 300 kg
Max. Payload: Approx 30, 480 kg
Gross Vehicle Weight: 37, 780 kg
Steel Structure:
Material: High strength low alloy steel with Q345(350MPa) yield strength is used for welded I-beam and Q235(235MPa) yield strength steel is used for the fabricated parts.
Platform: Checked steel floor, the thickness is 3mm.
OEM Parts Configuration:
King Pin: 2" bolting king pin. Brand: JOST.
Twist Locks: Twelve(12) units retractable ISO type twist locks.
Landing Gear: 2 speed road side winding with sand shoe, Lifting capacity 24T. Type:
JOST D200T, left operating. Made in China.
Suspension: Three axle air suspension with no axle lifting. Chinese brand choose by the factory.
Axles: 150x150 square axle with 13 tons capacity. Brake: S420x180, Wheel fitting
10xM22x1.5/ PCD335/281. Type: BPW. Made in China.
Rims: 11.75-22.5, 10 Holes ISO, 6 pieces + 1piece.
Tires: 385/65R22.5, 6 pieces+ 1piece. Chinese famouse brand, choose by the factory.
Brake chamber: Type 30/30 on the rear two axles, Type 30 on the front axle.
Electrical System: 24 volt lighting system 7 way ISO receptacle
Qingdao CIMC Special Vehicles Co., Ltd. (QCSV) is one of the subsidiaries of China International Marine Containers (Group) Ltd. (CIMC), one of the biggest container manufacturing groups in the world, and it is a joint venture of CIMC Vehicles and CIMC Vehicles Investment Holding Company Limited. Our main products are semi-trailers, chassis, trailers, special vehicles and special containers.
Located in Qingdao, we enjoy convenient transportation. Our company is near the seaport, the international airport and the highways. The total investment capital of QCSV is USD10, 000, 000, and the registration capital is USD4, 500, 000 with a 27, 600-square-meter factory and 24, 000-square-meter workshop for the Phase One Project.
We have world-class equipment and production lines. Famous brand components of home and abroad are adopted as important parts of our products, and the international standards are followed for excellent quality. Our principle is "quality first, credit standing primo and customer supreme". We will provide our customers with first-class products and excellent services. We can also design for your special needs.
With strong advantages and supports of CIMC, we aim at the global market of transportation methods and commit ourselves to becoming a leading production base in the field of special vehicles.
