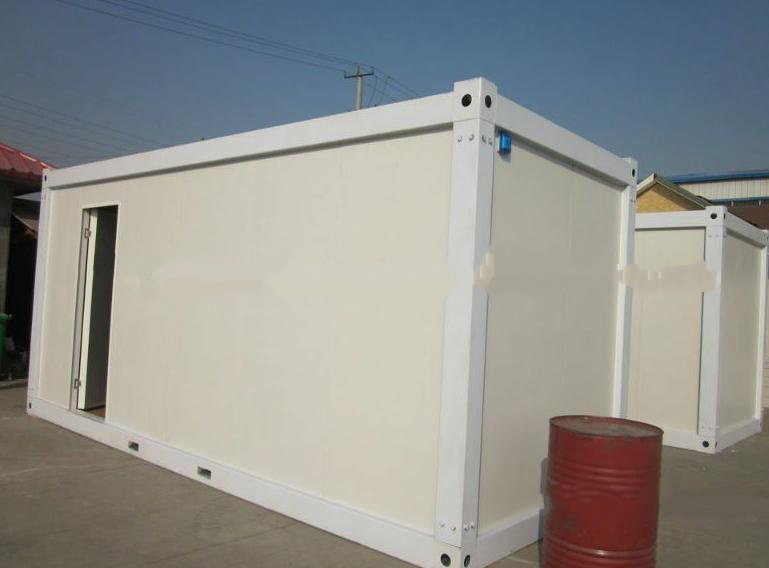

Container Storage Cube

Product Specifications

Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Certification:	ISO
Usage:	Dormitories
Material:	Steel Structure

Product Description

1. Dimension:

Outside Dimension (mm):
Length: 6055

Width: 2435

Height: 2591

Internal Dimension (mm):
Length: 5845

Width: 2225

Height: 2293

2. Usage:
Hospital, dormitory, office, storeroom, hotel, etc.

Facilities: Basic facilities: Door, window, electricity, floor, roof, socket, light

Optional facilities: Toilet, shower, washbasin, urinal, water pipe

3. STEEL FRAMEWORK

3.1 Material: Cold formed steel profiles in a thickness of 3 to 4mm (bottom rails).
3.2 Surface working: Electric galvanization min 15 μ M, zinc compatible epoxy ground coat in a thickness of 30μ M, final zinc compatible vinyl acrylic coat in a thickness of 60-70μ M.
3.3 Fittings: 8 comer fittings (dimensions according to ISO standard 1161), rainwater pipe in the roof framework, plate thickness of 10mm excluding top corner fittings of the top kit of each bundle (20mm thickness)
3.4 Forklift openings: Openings for fork-lift pockets in the floor framework, dim 88× 250mm in a distance of 1200mm

4. FLOOR
4.1 Composition:
External wainscot: Flat galvanized steel sheet metal in a thickness of 0.5mm.
Insulation filling: Non combustible mineral wool in a thickness of 100 mm among steel transverse supports. Mineral wool density: 60 Kg/m3
Steam blockade: PE foil in a thickness of 80μ M
Plywood panel in a thickness of 18mm
Glued PVC flooring covering in a thickness of 1.5mm.

4.2 Permitted loading: 2.50 KN/m2
4.3 Coefficient of thermal conductivity: L=0.039 W/mK
4.4 R value (Thermal Resistance) = 2.56 m2K/W
4.5 XPS insulation option: It is possible to choose an alternative insulation filling: Extruded polystyrene (XPS) in a thickness of 80 mm among steel transverse supports.
XPS density: 35 kgs/cubic meter
Coefficient of thermal conductivity: L=0.029 W/mK
R value (Thermal Resistance) = 2.76 m2K/W
5. CEILING:
5.1 Composition:
-external wainscot: Flat galvanized and painted steel sheet metal in a thickness of 0.5mm.
-insulation filling: Non combustible mineral wool in a thickness of 100mm among plywood purlins. Mineral wool density: 60 Kg/m3
-steam blockade: PE foil in a thickness of 80μ M
-inner wainscot: Chip wood panel in a thickness of 9 mm with a foil in white color; Joining of chip wood panels with PVC profiles
5.2 Meteor water outlet: 4 each of PVC rainwater pipes, diameter 50mm in corner pillars
5.3 Permitted loading: 1.50 KN/m²
5.4 Coefficient of thermal conductivity: L=0.039 W/mK
5.5 R value (Thermal Resistance) = 2.56 m2K/W
6. FACADE WALLS
6.1 Side panels width: 1145mm; Total panel thickness: 70mm.
Five panels fit into the long side and two panels fit into the short
Side of container and they are fully interchangeable
6.2 Composition:
-External wainscot: Galvanized and painted steel sheet metal in a thickness of 0.5mm.
-Insulation filling: Non combustible mineral wool in a thickness of 50mm in the wood framework. Mineral wool density: 60 Kg/m3
-Inner wainscot: Chip wood panel in a thickness of 9 mm with a foil in wood pattern (bright oak or white).
Joining of panels with PVC profiles. Final elements in the interior are made of chip wood panel in a thickness 8mm with a foil in wood pattern.
6.3 Permitted loading: 1.00 KN/m²
6.4 Coefficient of thermal conductivity: L=0.039 W/mK
6.5 R value (Thermal Resistance) = 1.28 m2K/W
6.6 100 mm insulation option: The framework can be modified so that mineral wool insulation reaches a thickness of 100mm. In this case R value (Thermal Resistance) goes up to: 2.56 m2K/W.

7. DOORS
Standard external door. Single fold, 40mm thick

8. WINDOWS
8.1 Windows
Made of PVC, white color

8.2 Rolling shutters
Option 1: External PVC rolling shutters in PVC guides.
Option 2: External Aluminum rolling shutters without insulation in Aluminum guides.
9. ELECTRICAL INSTALLATIONS
According to customer country requirement
