Product Specifications
| Prod Model: |
70 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Product Description

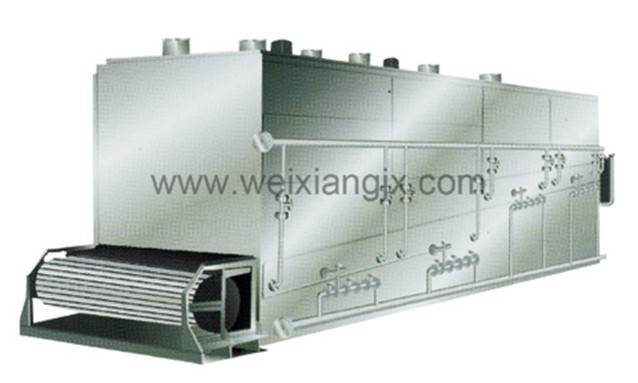

DWT Series Belt electric food dryer
Main Application:
DWT Series Belt Dryer is continuous drying equipment for batch production. The machine is used for drying material in pieces, tapes and particles shape, such as de-watering egetables and herbs. Especially it is good for heat sensitive raw materials. The advantage of the machine is fast drying speed, high evaporation efficiency, good product quality. For pasty and mushy material, it can be dried in a strip shape processed by a granulator.
Operating Principle:
The material is uniformly spread on the stainless steel net by feeder. The mesh belt uses generally 12-60 mesh stainless steel wire net and it is drawn and moved inside the dryer by a transferring device. The dryer is composed of several units. For each unit, hot air is circulated separately. In the first unit, air out from circulation air blower(5) passes through beside in to low unit after air is up and heated by steam heater(4)be shared by separator (3)the air is sprayed through mesh belt in to top of the machine. The drying process is hot air passes through the mesh belt covered with special moisture from the top to the bottom or from the bottom to the top. This will complete the heat and mass transfer process. The air pipe of the top is connected with a fan, some air is recycled, and some is exhausted. Exhausted gas is discharged with a special moisture elimination blower and other waster gas is controlled through and adjustment valve. The top and low circulation units can be freely equipped according to the users' requirement. The unit number can be selected according to the demand.
Feature:
In particle application, we recognized that one design solution for various materials' drying process is unrealistic.
Therefore, DWT series dryer emphasizes is specificity compare with the versatility. Different models in DWT series are designed for different material, such as vegetable dehydrating dryer, rice dryer, pigment dryer, cotton and wool dryer, roasted food dryer, plastic granules, magnetic, yellow iron oxide pigments, light calcium carbonate, white carbon and so on. Customers can have a discussion with our sales when they choose for the specific material. According to the material, sales will suggest the amount of wind, temperature, relative humidity, operating speed and other technical parameters of the equipment, in order to the suitability, reliability, optimum operating performance.
Nowadays, Jiangyin Haixiang Machinery Co., ltd have customers both in China and abroad. Foreign customers such as Russian, East Europe, Middle East, South America, North America, East Asia, Southeast Asia, Africa, etc.
|
Model |
DW-1.2-8 |
DW-1.2-10 |
DW-1.6-8 |
DW-1.6-10 |
DW-2-8 |
DW-2-10 |
DW-2-20 |
|
Unit number |
4 |
5 |
4 |
5 |
4 |
5 |
10 |
|
Belt width (m) |
1.2 |
1.2 |
1.6 |
1.6 |
2 |
2 |
2 |
|
Drying setion length(m) |
8 |
10 |
8 |
10 |
8 |
10 |
20 |
|
Thickness of the material to be covered (mm) |
≤60 |
|
Temperature (°C) |
50~140 |
|
Steam pressure (Mpa) |
0.2~0.8 |
|
Steam consumption (kg/h) |
120~300 |
150~375 |
150~375 |
170~470 |
180~500 |
225~600 |
450~1200 |
|
Drying time (h) |
0.2~1.2 |
0.25~1.5 |
0.2~1.2 |
0.25~1.5 |
0.2~1.2 |
0.25~1.5 |
0.5~3 |
|
Drying capacity (kg/h) |
60~160 |
80~220 |
75~220 |
95~250 |
100~260 |
120~300 |
240~600 |
|
Total power of the equipment (kw) |
11.4 |
13.6 |
11.4 |
13.6 |
14.7 |
15.8 |
36.8 |
|
Overall dimensions |
L(m) |
9.56 |
11.56 |
9.56 |
11.56 |
9.56 |
11.56 |
21.56 |
|
W(m) |
1.49 |
1.49 |
1.9 |
1.9 |
2.32 |
2.32 |
2.32 |
|
H(m) |
2.3 |
2.3 |
2.4 |
2.4 |
2.5 |
2.5 |
2.5 |
|
Weight(kg) |
4500 |
5600 |
5300 |
6400 |
6200 |
7500 |
14000 |
