Product Specifications
| Prod Model: |
PLJ |
| Markets: |
Southeast Asia,Africa,Oceania,Mid East,Eastern Asia |
| Usage: |
Outer |
| Packaging Containers: |
Bottle |
| Operational Method: |
Sterilizing |
| Product Type: |
Chemicals |
| Product State: |
Massive |
| Type: |
Multifunction Packaging Machinery |
Product Description

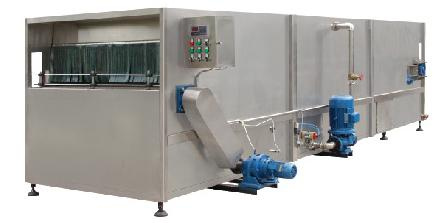

Based on advanced technologies from Germany, Italy and Japan, this tunnel pasteurizer has characteristic of smooth running, lower heat conductivity, high temperature precision in all temperature sections. Its mesh belt and chain wheels are famous brand of REXNORD from America.
This tunnel pasteurizer has 5 temperature sections, so temperature difference between section is small. It could assure good sterilizing, effects, reduce bottle broken rate. Hot water is recycled to use in temperature sections in order to save heat energy and reduce water consumption. This tunnel pasteurizer could process bottled beverage or beer products, which completely conforms to relevant technologic requirements.
|
Main Technical parameters |
|
Model |
PLJ-4000 |
PLJ-6000 |
PLJ-10000 |
|
Capacity(b/h) |
2000-4000 |
4000-6000 |
8000-10000 |
|
Bottle inlet temp. |
3-5 |
|
Bottle outlet temp. |
<45 |
|
Sterilizing temp. |
62-85 |
|
Sterilizing time |
10 |
|
Steam pressure |
0.5-0.6MPa |
|
Width of belt(m) |
1.22 |
1.5 |
2 |
|
Circling water(m3/h) |
6.3 |
10 |
20 |
|
Water consumption(m3/h) |
1 |
1.5 |
2 |
|
Water pressure:≥0.2Mpa,water temp. is 20C |
|
kg/h steam consumption |
200 |
350 |
600 |
|
Overall dimension(mm) |
8000×1500×1650 |
8000×1800×1650 |
8000×2200×1650 |
|
Total weight(kg) |
3800 |
5500 |
7000 |
We devote ourselves to the development, research and production of liquid food and beverage packing and filling industry and automatic blow molding machine in China.
For beverage machine, our Main products including:
The capacity of 5000-- 40000 BPH for HOT FILLING, MID-TEMP FILLING, ASEPTIC COLD FILLING LINES.
The capacity of 5000-- 40000 BPH for MINERAL WATER AND PURIFIED WATER PRODUCING LINE.
The capacity of 5000 -- 36000 BPH for CARBONATED BEVERAGE PRODUCTING LINE.
The capacity of 300 -- 2000 BPH for 3 gallon OR 5 gallon BARREL FILLING PRODUCTING LINE.
The capacity of 8000 BPH for the volume of 200ml to 500ml in MILK PACKAGING.
All kinds of WATER TREARMENT EQUIPMENT.
PET perform INJECT and BLOWING-STRETCHING MACHINE.
Mould plastics machine
Turn-key projects
Flat and tube UHT device, and CIP system.
All the products are sold well in every province and city of the whole country and also exported to several countries and areas with strong technical force, advanced equipment, scientific management system and perfect after-sales service.
