Product Specifications
| Prod Model: |
HC-FPC-004 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Size: |
279.5mm*162.5mm |
| Quality: |
Top Quality |
| Environmental Friendly: |
Raw Material Pass RoHS, SGS Test |
| Type: |
Rigid Circuit Board |
| Dielectric: |
FR-4 |
| Material: |
Complex |
| Flame Retardant Properties: |
V2 |
| Brand: |
Tkm |
Product Description

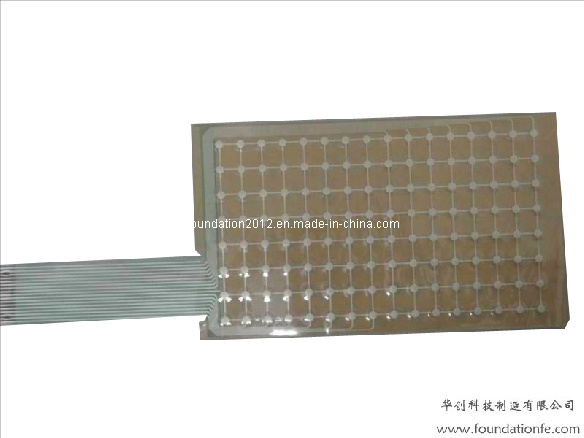

Control Feel Smooth Keys Embossing Flexible Printing Circuit Board
1. Size: 279.5mm*162.5mm
2. Keys: 128PCS of embossing without metal dome (top circuit are dome embossed)
3. S/S printing color: 5 colors of s/s printing ( 2 colors for top circuit and 2 colors for low circuit, 1 for the polydome)
4. Structure: Top circuit: PET0.125 + Domes spacer: KK0.125mm + Low circuit PET0.125 + Rear adhesive: 3M467MP
5. Tail: One tail, length: 163.00mm.
6. Contector: Without crimpflex.
Why choose us?
1 High reliable in function with Low cost
2 Function test 100% before shipment Rosh
3 Three factories to support mass production
4 Professional staffs and in administration level
5 Expert sales team to support customer services.
6 Metal dome or silicone keypad is also available.
7 Waterproof seal & design reach IP65.
8 17 years rich experiences in cooperation with famous brands such as SANYO/Philips /Siemens /Mettel etc.
| Technical Specification Of Membrane Swithc |
|
| wire lead resistance: | <1Ω/CM |
| Life time: | >1 Million times |
| rated current: | 25-100mA,0~30V DC |
| Operation Temperature: | -104°F~158°F |
| Rated Voltage: | <50V, DC |
| Operation Humidity: | at104°F,<98%RH |
| Insulation resistance: | <100MΩ,250V DC |
| Dome springback time: | <5 msec |
| Switch travel: | Flat Type 0.05-0.3mm |
| Base Material voltage withstand: | 1500 V DC |
| tactile type:0.3-1.5mm |
| Tail flexiblility: | any angle within 180 degree |
Foundation Industries Manufacturing Limited has been specialized in membrane field for over 15 years, which was founded in 1997, . It has two factories in Dongguan China, one is for membrane products (TKM membrane technology Ltd. )and the other is for silicone products(Huahongchuang). Now we have purchased a Taiwanese factory which is manufacturing various nameplates, and we' Ll use this new facility to expand our main business and make metal nameplate our new field.
We are an ISO9001: 2008 certified company and all of our products have passed RoHS and SGS test. We believe quality is vital for the growth of an enterprise, we undergo 100% functional test before shipment.
Our main product range are:
1)Membrane Switch and overlay
2)Flexible printing Circuit/ FPC/EL
3)Silicone products including silicone rubber key pad. And various silicone Rubber products.
4) Metal nameplate series
5) Rotary Switch/Rocker Switch/Push button Switch/Thermal protector
We' Ve established business relationship with over 120 customers from global market, including some famous brands such as PHILIPS, Siemens, Panasonic, SANYO, METTEL, BOSCH.
We sincerely hope can cooperate with you in the coming future!
