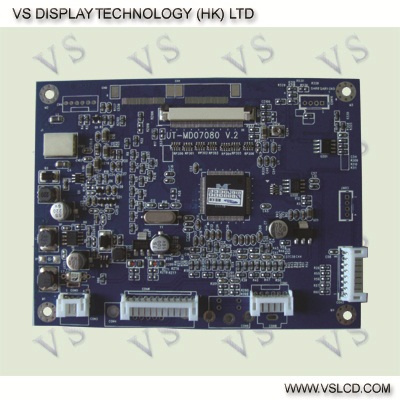

Controller Board (VS-MD07080 V. 2)
Product Specifications
| Prod Model: |
VS-MD07080 V. 2 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Product Description
TFT LCD Driver Board
1. VS-MD07080-V. 2 can compatible with 7", 8" and 10" TFT LCD
Can apply for AT080TN42, AT080TN01, AT080TN03, AT070TN83 V. 3, AT070TN82 V. 1, AT102TN01, AT102TN03, A101VW01, AT080TN52, AT070TN92.
2. Support Mode: 640*480, 800*600, 1024*768
3. Control Key: Key board, remotel control (optional)
4. Size: 114*86.4(mm)
5. Input signal: VGA, CVBS1, CVBS2, S-VIDEO (optional)
6. Power: 12V (DC) +/-1.5V
Applicaitons:
Digital Photo Frame, the advertising machine, the doorbell visualization, visual telephone, monitoring equipment and
Other devices
Advantages:
Good Quality, Competitive Price, Stable Supply, Fast Delivery
OEM, ODM based on the customer demands
|
ITEM |
DESCRIPTION |
UNIT |
|
Product Name |
TFT LCD Driver Board |
|
|
ITEM NO |
VS-MD07080 V. 2 |
|
|
Outline Dimension |
114 X 86.4 |
mm |
|
PCB Length |
114 |
mm |
|
PCB Width |
86.4 |
|
|
Relative humidity |
less 90% |
|
|
Operating Temp |
-10 to 60 |
C |
|
Storage Temp |
-20 to 70 |
C |
VS DISPLAY TECHNOLOGY Ltd is a Hi-tech manufacturer of liquid crystal displayer. It is establishment in 1998. The headquarters is located in Shenzhen.
The products include LCD Panel of TN, HTN, STN, FSTN, CSTN; LCM of COB, COG, TAB, COF; Some Accessories like Backlight, Touch Panel and finish product--Digital Photo Frame. Those product use in a broad range of applications: In telecommunication, GPS, electronic medication, video and audio system, apparatus and meters, home appliances, personal digital assistant (PDA), mobile phones, scientific instruments and other electronic appliances. We have won the great reputation both at home and abroad.
VS DISPLAY has supplied one-stop service from OEM, ODM product to after service. From conceptual design to mass product, we have been specialized in this field for more than ten years. Our effective engineer will cater for you to design a product that meets all you demands and provide overseas technical support by wire.
All products are directly exported to Europe, North, Asia, South-American and so on. On using equipment from Japan and USA, enchancing in-house manufacturing capability to keep down production cost, and getting high-quality products. As a result, we have earned an excellent reputation in the overseas market.
Fabrication base covers 30, 000sq meters. 3 COB lines, 3 COG lines, 1TAB lines
QC system: ISO9001
Standard series:
Character: 8x1, 8x2, 16x1, 16x2, 16x4, 20x2, 20x4, 24x2, 40x2, 40x4 etc.
Graphic: 128 x32, 128 x 64, 128x128, 160x32, 160x128, 160x160, 240 x128, 240x64, 320x240, 320x480 etc.
TFT LCD: 1.44", 1.77", 1.8", 2.0", 2.2", 2.4", 2.8", 3.0", 3.2", 3.5", 4.3", 5.0", 5.6", 7", 8", 9", 10.2" etc.
TFT Driver Board: 3.5", 4.3", 5.0" 5.6", 7", 8", 9", 10", 12", 15.6", 17", 19"
TFT+MCU: 3.5", 5.7
