Contruction Building Pipe Tube Cutting Machine Cutter Tools with Air Plasma Flame Gas Bevel Intersection Groove Cutting for All Kind Material Pipe

Product Specifications

Prod Model:	ZLQ-65
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Cutting Steel Type:	Round or Square Tube
Figures Can Be Cut:	Variety of Graphics by Outspreading Intersecting L
Control Axes:	3-4-5-6 Axies, Bevel Cutting with Six Spindle and
Diameter:	30-300mm 60-600mm 30-1000mm or Customized
Thickness Of The Pipe:	Flame : 6-200mm, Plasma : 1-60mm
Bevel Cutting Range:	Flame 60 Degree, Plasma 45 Degree
Cutting Mode:	Plasma or /and Oxygen
Pipe Cutting Length:	From 4000mm to as Required
Pipe Clamping Method:	Chuck
Power-Driven:	High-Precision AC Servo+Dedicated Planetary Reduce
Process Usage:	Metal-Cutting CNC Machine Tools
Performance Classification:	Economical CNC Machine Tools
Numerical Control:	NC
Movement Method:	CNC Cutting Machine
Control Method:	Auto CNC

Product Description

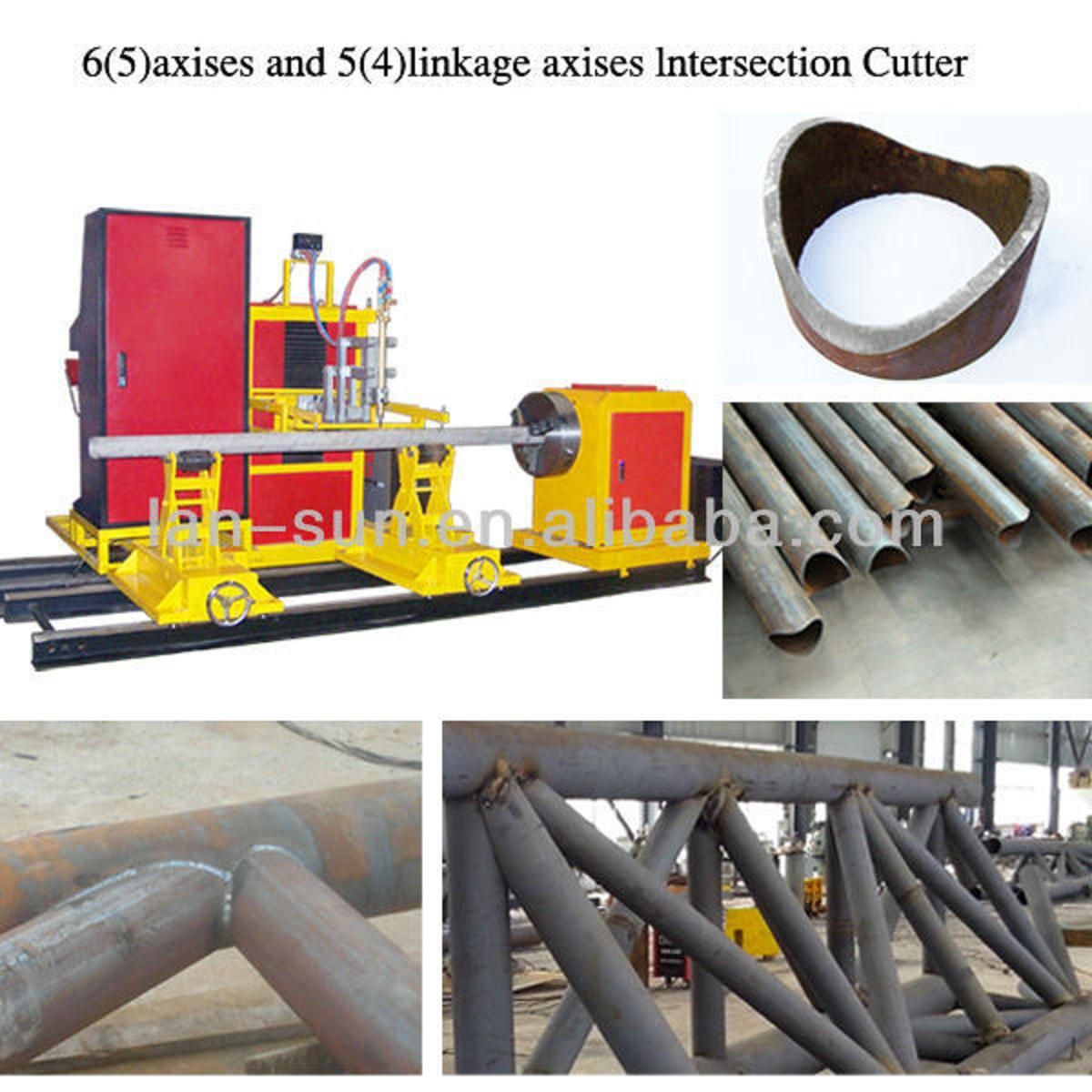

CNC Steel/metal pipe cutter Suitable for cutting the cylinder branch, two, three or more layer saddle cutting of the main pipe. ZLQ CNC Steel pipe cutter is special CNC equipment which is used for cutting metal pipe automatically. It can reslize auto program and auto CNC nesting work for any complicated joint type of intertube and pipe and non-intertube. And can cut any type welding bevel at one time. This product is widely used for steel structure, shipbuilding, bridge and heavy machine industries. Cutting technical specifications: 1. Cutting steel type: Round & square 2. Figures can be cut: Variety of graphics by outspreading intersecting line, can be with bevel 3. Control Axes: 3-4-5-6 axies, bevel cutting with six spindle and six-interlocking. 4. Diameter: 30-1000mm or customize (bigger dia. ) 5. Thickness of the pipe: Flame: 5-200mm, plasma: 1-60mm 6. Bevel cutting range: Flame 60degree, plasma 30 , 45degree. 7. Cutting way: Plasma or /and gas 8. Pipe max length: ≥ 6m 9. Pipe clamping method: Chuck 10. Power-driven: High-precision AC servo+dedicated planetary reducer 11. Control System: A dedicated intersecting line cutting system: 6-axis controlled, with quantitative intersecting line cutting macro library Processing range Pipe diameter: Φ 30-φ 1000mm Pipe length: 800-12000mm Max. Pipe weight: 15,000Kg Pipe thickness By air plasma: 1-60mm By gas: 5-200mm Workpiece rotation (γ Axis) Rotation angle Infinite rotation Rotation speed: 0-8r/min Servo motor power: 3.2KW Longitudinal moving(Yaxis) Stroke: 12000mm Speed: 50-10000mm/min Servo motor power: 0.85KW Cross moving(Xaxis) Stroke: 600mm Speed: 0-1500mm/min Servo motor power: 0.4KW Up-down moving(Z1axis) Stroke: 260mm Speed: 50-1500mm/min Servo motor power: 0.4KW Torch adjust(Z2axis) Stroke: 260mm Speed: 50-1500mm/min Servo motor power: 0.1KW Torch twisting (θ Axis) Twisting angle: +/-60 Speed: 0-16r/min Servo motor power: 0.1KW Electrical system Control mode: PLC Cutting ability: Pictures from cutomer's site: Certificates: Cutting video: http://www.tudou.com/home/_366244996/item
