Ningbo Blin Machinery Co., Ltd. >> Conventional Heavy-Duty Lathe with High Quality (BL-HL-A100B/125B/140B/160B)

Conventional Heavy-Duty Lathe with High Quality (BL-HL-A100B/125B/140B/160B)

Conventional Heavy-Duty Lathe with High Quality (BL-HL-A100B/125B/140B/160B)
Supplier: Ningbo Blin Machinery Co., Ltd.
Price: Negotiable/Piece
Min Order: 1/Piece
Quantity::
Trade Terms: FOB,CFR,CIF
contact supplier

Product Specifications

Prod Model: BL-HL-A100B/125B/140B/160B
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Max. Swing Dia. Over Bed: 1000mm
Max.Swing Dia. Over Cross Slide: 615mm
Center Distance: 1.5/2/3/4/5/6/8/10/12
Max. Turning Length: 1.3/1.8/2.8/3.8/4.8/5.8/7.8/9.8/11.8m
Bed Width: 755mm
Max. Loading Weight: 6t
Spindle Bore: 130mm
Spindle Speed Range: Normal:3.15~315(21 Steps),Reverse:3.5~291(12 Steps
Distance From Spindle Center To Tool: 48mm
Spindle Motor Power: 22kw
Type: Horizontal Lathe
Power Source: Electric
Controlling Mode: Artificial
Automatic Grade: Semiautomatic
Setting Mode: Floor-type
Precision: High Precision
Processing Accessory: Metal Surface
Tool Holder: One

Product Description

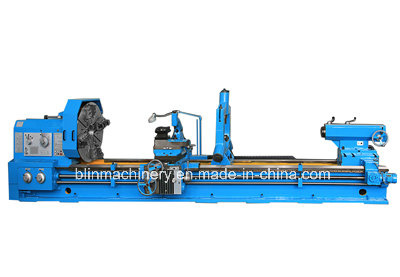

Heavy-duty Lathe(BL-HL-A100B/125B/140B/160B)



Features:
High power, High rigidity ,Wide rotating speed range.
Can be Used for high speed and strong force turning.
Suitable for turning cast iron/steel workpieces,and middle/big non-ferrous metal parts.
Can turn external cylindrical surface,inner hole and end face.
Also can turn various internal/external metric,inch module and diametrical pitch threads.
The top slide can be used independently for turning short taper.

Specification:

ItemUnitBL-HL-A100BBL-HL-A125BBL-HL-A140BBL-HL-A160B
Max. swing dia. over bedmmΦ1000Φ1250Φ1400Φ1640
Max.swing dia. over cross slidemmΦ615Φ865Φ1015Φ1250
Center distancem1.5/2/3/4/5/6/8/10/12
Max. turning lengthm1.3/1.8/2.8/3.8/4.8/5.8/7.8/9.8/11.8
Bed widthmm755
Max. loading weightt6
Spindle boremmΦ130
Spindle nosemmA2-15(8×M22)
Spindle hole taper/1:20/140
Spindle speed rangerpmNormal:3.15~315(21 steps),reverse:3.5~291(12 steps)
Longitudinal/cross feeding steps/56/56 steps
Feeding rangemmLongitudinal:0.1~12,Cross:0.05~6, top slide:0.025~3
Distance from spindle center to tool postmm48
Top slide travelmm300
Cross slide travelmm520580580630
Toolshank sizemm45×45
Tool post swivel angle°±90°
Tool post rapid moving speedmm/minLongitudinal:3740,Cross:1870, top:935
Metric threadmm1~120(44kinds)
Inch threadTPI28~1/4(31kinds)
Module threadM.P.0.5~60(45kinds)
Diametrical pitch threadD.P.1/2~56(38kinds)
Travel of tailstock quillmm300
Dia. of tailstock quillmmΦ160
Taper of tailstock quill/MT6#
Spindle motor powerkw22
Overall size(L×W×H)mm4600/5100/6100/7100/8100/9100/11100/13100/15100×2150×1700/1825/2150


Optional Accessories:
Big center rest
Big centering bracket
Motor driven tailstock
Built-in rotary tailstock
Chuck guard
Tool post guard
Cable carrying chain

BLIN MACHINERY Co., Ltd. (China) is a high reputed professional CNC Machine Tool manufacturer and exporter, main products are CNC Lathe, CNC Milling Machine(CNC Machining Center). Has total three production bases in China with more than 35 years history for machine tools manufacturing. Set overseas sales center in NINGBO city, include warehouse& showroom covered area 1500 square meter.

Besides our self-manufactured machines, we also cooperating closely with a number of leading machine builders in China for long term. We may provide nearly all types regular and special machines which customers need.

Focusing on international market, BLIN has placed the priority on both product quality and service. Our quality program starts as soon as customer's order is placed, and will follow through every stage including manufacturing, assembly, final testing, packing, and shipment to ensure the quality and spec. Strictly as customer's requirements. We promise every provided machine will be strictly tested and be ready to use before delivery.

By now, we already set up stable and long term business with customers from most countries in the world, such as USA, Mexico, Colombia, Ecuador, Argentina, Thailand, Indonesia, AUTRALIA, Iran, India, Russia, Germany, Poland, Spain, Finland, Netherlands etc. Our many models are hot sales in overseas market. We are sincerely prepared to co-operate with customers all over the world for mutual benefit and progress.

We look forward to hearing from you at any time!
