Traditional HEPA filter is a filterclean in half a century varieties commonly used in engineering. Because manufacturing is simple, inexpensive, many advantages temperature, shock, etc., in the filter varieties constantly updated Today, there are still many occasions separator filter occupies an irreplaceable position.

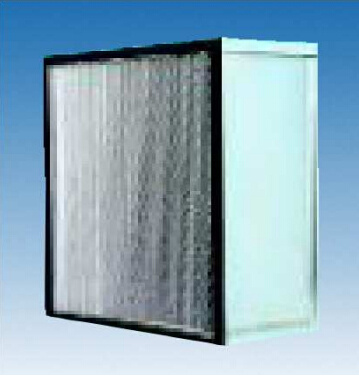

OBERY production GG clapboard filter, widely used in clean engineering industries, as well as the special requirements of air conditioning and process of the air supply system.
According to market requirements, OBERY produce three kinds of size series of GG type filters with separators:
- The basic dimensions of 610mm (24 ") of international standard specifications;
- The basic dimensions of 484mm of Chinese classics specifications
- The basic dimensions of 630mm of China Specification
In OBERY, all GG efficient filters in the factory have been by one performance test. Under normal circumstances, the test methods specified in the national standard GB6165 "sodium flame method", when the user requests otherwise, OBERY in accordance with customer requirements, the provisions of MPPS scanning method used in Europe or the United States provides the 0.1 ~ 0.2µm scanning test.
In addition to the traditional standard of GG clapboard filter, OBERY according to the special needs of users, make other specifications of the filters with separators, such as:
Alien size of the filter, to 0.1 ~ 0.2µm particle filtration efficiency of ≥99.999% ULPA very
efficient filters, efficiency F6 ~ F8 of general ventilation filters with separators, gas turbineand air compressor enhanced filters with separators.
Efficiency: Sodium Flame 99.97%, 99.99%
Media: Fiberglass
Frame: Galvanized steel, Medium density fiberboard, Aluminum
Separators: Aluminum, Card paper
Sealant: Polyurethane
Temperature:-20~ 90ºC
Humidity:with aluminum separators,
≤99%
with card paper separators,≤85%OBERY purification 610mm series HEPA filter efficiency of 99.99% sodium flame method, galvanized plate frame
1. 610mm series filter dimension 610, 762, 915, 1219, 1524, 1829mm, that is 8", 12", 24",30", 36",48",60",72".
2. For one-way flow filter cleaning system, test standard face velocity 0.45m / s (90fpm).

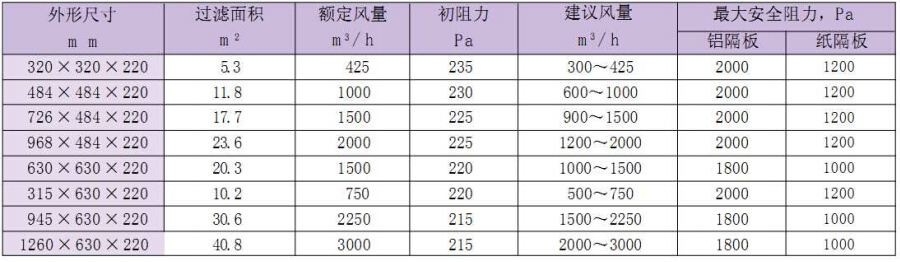

OBERY purification 484mm and 630mm series HEPA filter efficiency of 99.99% sodium flame method, galvanized plate frame.
Description:1. Compared with galvanized plate frame filter, the effective area is small about 5%, the high resistance of about 5%.
2. efficiency of 99.97% of the filter resistance data is slightly lower than the resistance table.
3. within the range of 50% to 150% of the nominal amount of wind resistance and air flow was approximately linear relationship.
4. "recommendation wind" as the empirical data, means more economical and
rational design air volume range.
