Product Specifications
| Prod Model: |
SS1200-12 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Certification: |
ISO |
| Application: |
Hardware Spraying Equipment |
| Method Type: |
Automatic |
| Type: |
Electrostatic Spraying Equipment |
Product Description

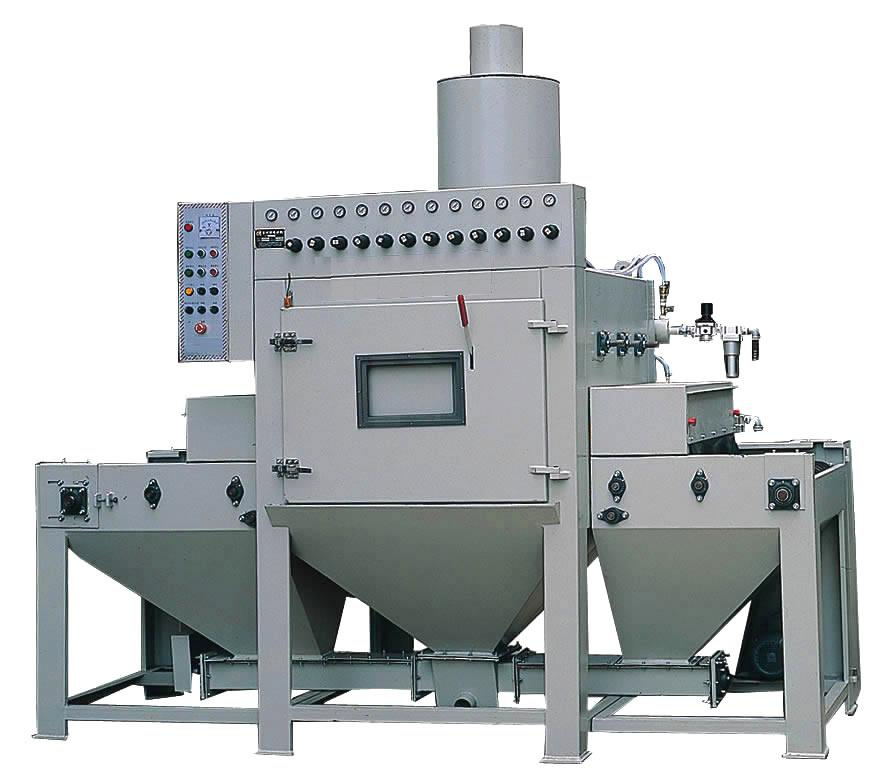

ParametersCJ-SS1200-12 Conveyer Automatically Sandblast Machine
Machinery-space size1400*1400*840(mm)
Dust-removal motor380V 50Hz 7.5kw
Swing spray-gun motor380V 50Hz 0.4kw
Conveyer motor380V 50Hz 0.75kw
Screw motor380V 50Hz 0.75kw
Compressed-air pressurePressure 2-7kg/cm2 Flow 9.6m3/min
Spraying gun12
Power380V 50Hz 9.6 KW
Dedusting mode64-bag dust-removal box, automatically(pulse filter is available)
Machine size4500*4500*3000 mm(L*W*H)
Feature:
I Adopting V-belt to send workpiece, the speed can be adjustable according to sandblasting requirements.
II The angle of spraying-gun can be adjusted freely as well as the bracket be adjusted by frequency conversion with fixing shot blasting. Widely applications and good flexibility.
III Adopting whirlwind separated system with good effect to reduce material loss...
IV Adopting PLC electrical control system, which is featured with well automation, stability and less fault.
V Nozzle adopts special high-resistance boron carbide with reliable and long-time using.
VI Independent bag dedusting system (pulse filter is available), good ventilation without pollution.
VII Adopt screwing integrated with pneumatic recycling to recycle abrasive with good stability.
VIII It can be manufactured according to the requirements of client.
Applications:
Sandblast processing for various slab, plate, square and special parts, such as flat stainless steel plate, normal steel plate, glass steel plate, stone, flat non-stick pan, roasting plate, oven, computer enclosure, DVD slab, laptop, adornment, badge, communications equipment, aluminum slab and other special parts.
Applicable sand: Alumina, carborundum, glass beads, walnut sand, resin sand, mini steel shots, steel grits, stainless steel grits and aluminum grits.
SCHROEDER's teamsresearch, develop, design, integrate, produce, assemble, test and install singlespecial machine up to complete production lines, according to customers'specifications, all over the world.
SCHROEDER the world leader in complete mechanical solution
SCHROEDER with a dedicated and experienced project team will implement your project in the most demanding environment, our leading mechanical, electrical and automation engineer will develop your own efficient production facilities based upon proven, reliable and tested new technology. Our customer's support team will be at your service all over the world to support you in your daily operation. SCHROEDERis your best partner in securing productivity for your next investment.
SCHROEDER performs in the following industrial sectors: Aeropsace, Automotive, Defense, Energy, Environment, Railway, Shipyards.
We provide design, realization and installation on site with training and after sales service all over the world.
SCHROEDER teams have long expertise and experience in designing special machines or prototypes adapted to the needs of our customers. This expertise gives to us the opportunity to grow all over the world, and so we already have delivered more than 200 machines in 50 countries. Our quality is well known and we integrate the latest technologies to our machines
