Product Specifications
| Prod Model: |
XLB-1200X1200X2 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Version: |
Xlb1200X2500X2 |
| Quality Guarantee: |
Two Years Life |
| Colour: |
Bule or as Per Customer's Requirements |
| Advantage1: |
High Working Pressure |
| Advantage2: |
High Producing Efficiency |
| Advantage3: |
Wide Application |
Product Description

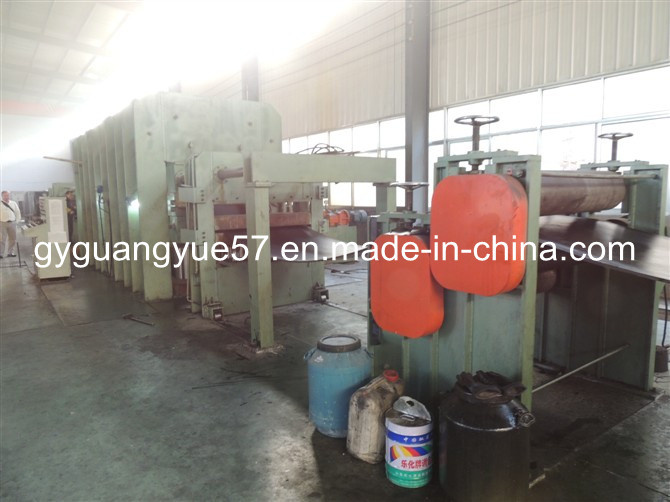

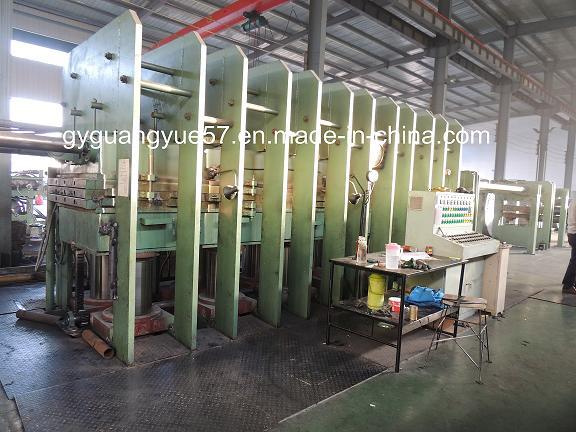

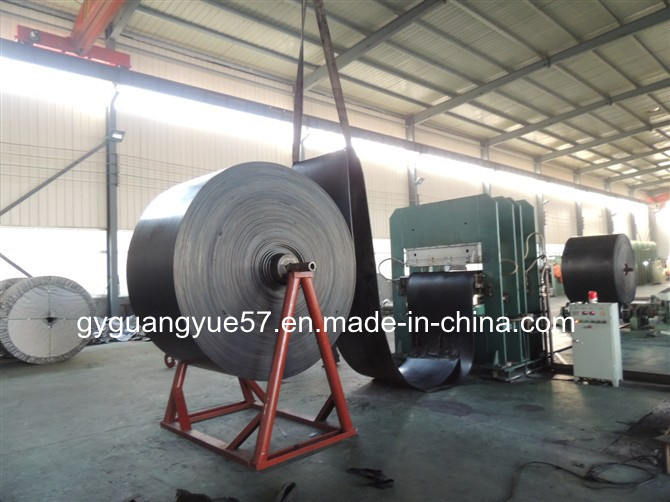

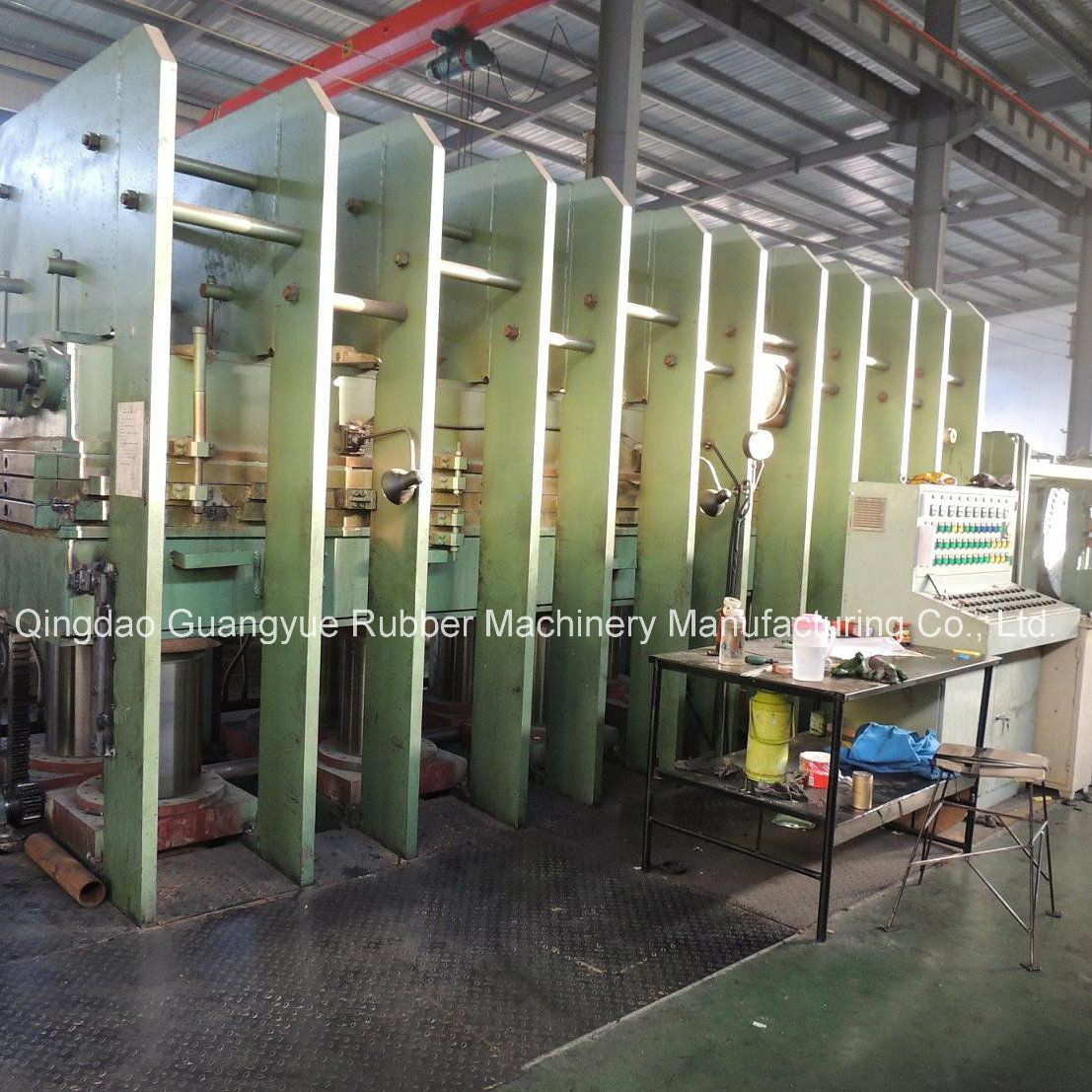

Conveyor Belt Vulcanizing Press
1. This series of products have high press in unit area, so that we can ensure the quality.
2. Machine can be equipped with model pulling and pushing device to reduce work strength based on product requirements. Hand control, electrical control and PLC control is optional.
The line of Conveyor Belt vulcanizing presses are of high automation level and compact advanced structure, suitable to vulcanize giant conveyer belt such as nylon conveyer belt, common conveyer belt, anti-fire conveyer belt, wire rope conveyer belt etc.
3. The main machine is of frame structure and equipped with special purpose hydraulic unit.
4. Both the hot plates and piston plunger are all made of superior material, they are accurately processed and have high etch and wear resistance.
5. The control system has been taken up with PLC so as to realize multi program automatic control of curing process, for example, the temperature of the hot plates can be measured and regulated automatically.
6. This will improve the control level and provide with high efficiency of production and low intensity of labor.
We are Qingdao Guangyue Rubber Machinery Manufacturing Co., Ltd. Our main products are plate vulcanizing machine, curing press, rubber machine, conveyer belt vulcanizing press, Rubber crushing mill, Rubber refining mill, rubber tiles vulcanizing press, tire building machine, rubber kneader, two-roll mixing mill and so on.
The products have been exported to many countries, such as America, Canada, Australia, South Korea, and Southeast Asia, Middle-east, etc.
If you interested in our products mentioned above. Kindly let us know by return email. | Model | XLB-D/Q
1200X1200X2 | XLB-D/Q
1300X2000X1 | XLB-D/Q
1200X2500X1 | XLB-D/Q
1500X2000X1 | XLB-D/Q
2000X3000X1 | XLB-D/Q
1400X5700X1 |
| Total pressure(MN) | 3.15 | 5.60 | 7.50 | 10.0 | 18.0 | 28.0 |
| Plate size(m) | 1.2X1.2 | 1.3X2.0 | 1.2X2.5 | 1.5X2.0 | 2.0X3.0 | 1.4X5.7 |
| Plate distance(mm) | 200 | 400 | 400 | 400 | 400 | 400 |
| Working layer number | 2 | 1 | 1 | 1 | 1 | 1 |
| Piston stroke(mm) | 400 | 400 | 400 | 400 | 400 | 400 |
| Plate pressure(Mpa) | 22 | 21.5 | 25 | 33.5 | 30 | 35 |
| Main motor power(kw) | 3 | 8 | 9.5 | 11 | 26 | 55 |
| Overall dimension(mm) | L | 1685 | 2000 | 2560 | 2810 | 2900 | 5700 |
| W | 1320 | 1860 | 1700 | 1550 | 3200 | 2450 |
| H | 2450 | 2500 | 2780 | 3325 | 2860 | 4150 |
| Weight(ton) | 9.5 | 17 | 20 | 24 | 66 |
