Product Specifications
| Prod Model: |
GUDE-2008 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Enter Attribute Here (e.g.: Size): |
Enter Value Here (e.g.: 12 Inches) |
| Structure: |
Floor Type Boring Machine |
| Controlling Mode: |
CNC |
| Automatic Grade: |
Automatic |
| Precision: |
High Precision |
Product Description
Features
1. Our company independently invents the self-centering three-jaw positioning system patented technology
This system has the correction function and is available for self-centering the steel tube
Regardless of the size of the steel tube ovality, the machining tool and the steel tube are always concentric, and the radial runout is less than half of the national standard
2. The multi-blade molding hole boring cutter independently invented by our company us applied
The service life of tools is more than five times of that of conventional single-blade tools, and the aperture is consistent during the batch machining process, without the need for aligning, adjusting and sharpening tools repeatedly, thereby significantly improving the working efficiency
3. Due to the adoption of CNC technology precision control, it has brought about a number of advantages including high positioning accuracy, consistent machining size at both ends of the spigot, length accuracy of ± 0.02mm, and not affected by the tube cutting length error
In addition, the axial endplay is less than half of the national standard.
4. The equipment is characterized by simple structure and easy to operate, which overcomes the large positioning error, time-consuming for adjustment of tools, high failure rate, great energy consumption, complex maintenance and other defects of similar equipment
Technical parameters:
1. Dimensions (L × W × H): 3, 800× 1, 000× 1, 100mm
2. Weight: 2, 200kg
3. Power configuration: 15kW
4. Diameter of conveyor roller (Idler): Φ89-Φ159-Φ219mm
5. Length of conveyor roller (Idler): 240-1, 600-2, 300mm
6. Capacity: 360-500pcs/shift
Affected by the auxiliary links and the diameter of the conveyor roller (idler)
7. Number of operators: 1-2, 2 operators for the large-size conveyor roller (idler)
Basic composition:

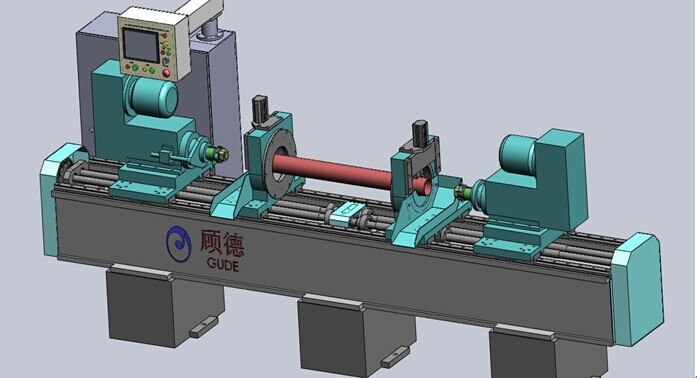

This equipment is constituted by the machine tool bed, drive assembly, left and right power unit, three-jaw positioning system, roller leather bench, electric control box, touchscreen control station, specific program and accessories.
As a wholly-owned subsidiary of Shanxi Gude Baofeng Heavy Industry Machinery Co., Ltd., Taiyuan Gude Roller Technology is a high-technology company with professional CNC automatic production line of roller and roller technology. We are also engaged in the R&D of the "BCNAP-I type roller CNC automatic production line.
Several R&D results in the National Industry Institute of Technology Exchange have been highly praised by the experts, which include the present domestic and international most advanced roller production line.
We have four special CNC automatic machining centers, CNC automatic spraying lines, three special manipulators with 5 degree of freedom, Siemens S7-300 electric station, on-site control and remote control functions. Aside from having 18 proprietary technology rights, we have also obtained three national patents and have declared 31 patents.
The main technical characteristics of our products include a high degree of automation, advanced technology, energy saving, environmental protection and CNC machining, with production efficiency of 20 times that of the conventional equipment. The patent spinning process and its production of roller, radial runout values, axial value, 1/2 to 1/3 resistance coefficients were MT821 - 2006 standard, can meet the relevant state departments of "Twelfth Five Year Plan" period.
We look forward to working with you. Inquire today to learn more.
