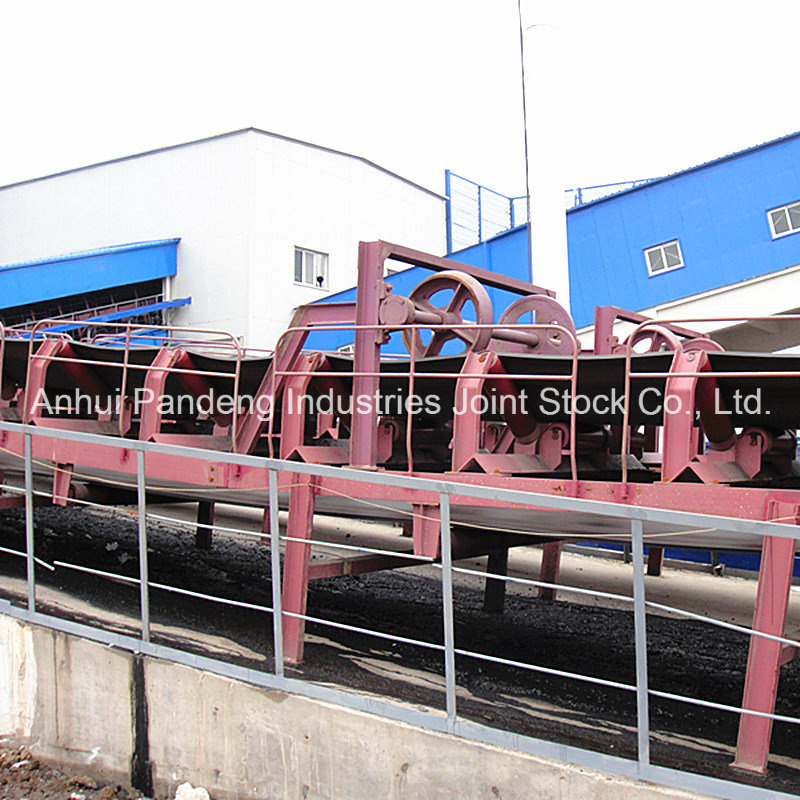

1. Outline:
(1)The large inclination upward belt conveyor is the one that uses ordinary plain faced conveying belt to convey bulk materials at large inclination, with the maximum inclination angle up to +28° and maximum belt speed of 3.15m/s.
(2)This belt conveyor designed and manufactured by our company adopts the structure of deep trough angle idler with reliable performance, in which the bigger structural members all adopt removable construction.
2.Features:
(1)Large conveying capacity
(2)Decrease the mining capacity on gate road
(3)Reduce floor area
(4)Convenient maintenance
(5)Long service life
(6)Idler of high seal, long life and big velocity
(7)Save capital construction investment
(8)Multiple drive modes
(9)Easy realization of operation
(10)Multiple drive modes, both multi-motor centralized drive and sectional multipoint drive are acceptable
(11)Realize various functions such as low-speed start (soft start), power equalization and automatic regulation of conveyor belt tension
3.Application:
DTC large inclination upward belt conveyors are widely used in metallurgy, mining, coal, ports, power plants, building materials, chemicals, light industry, petroleum and other industries.
4.Parameters:
No. |
New model |
Conveying
Capacity
(t/h) |
Belt width
(mm) |
Belt speed
(m/s) |
Max. conveying
length(m) |
Inclination
angle
|
Main motor
power
(kW) |
Drive roller
diameter
(mm) |
Idler diameter
(mm) |
Original (old)
model |
| 1 | DTC80/6/40S | 60 | 800 | 1.25 | 200 | 18~23 | 37 | φ630 | φ89 |
|
| 2 | DTC80/13/200S | 130 | 800 | 1.6 | 600 | 16~26.5 | 200 | φ1000 | φ89 |
|
| 3 | DTC80/15/250S | 150 | 800 | 2.0 | 780 | 25~8 | 250 | φ1000 | φ89 |
|
| 4 | DTC80/18/220S | 180 | 800 | 2.0 | 530 | 25 | 220 | φ1000 | φ89 | SQD-220 |
| 5 | DTC80/18/160S | 180 | 800 | 2.0 | 450 | 22 | 160 | φ1000 | φ89 |
|
| 6 | DTC80/25/250S | 250 | 800 | 2.0 | 450 | 25 | 250 | φ1000 | φ108 | SQD-250 |
| 7 | DTC80/30/2×220S | 300 | 800 | 2.0 | 670 | 25 | 2×220 | φ1000 | φ89 | SQD-440 |
| 8 | DTC80/30/250S | 300 | 800 | 2.0 | 500 | 23 | 250 | φ1000 | φ89 |
|
| 9 | DTC80/30/2×250S | 300 | 800 | 2.5 | 350 | 25 | 2×250 | φ1000 | φ89 |
|
| 10 | DTC80/26/315S | 260 | 800 | 2.0 | 860 | 25 | 315 | φ1250 | φ108 |
|
| 11 | DTC100/40/250S | 400 | 1000 | 2.0 | 380 | 23 | 250 | φ1000 | φ108 |
|
| 12 | DTC100/40/280S | 400 | 1000 | 2.0 | 350 | 25 | 280 | φ1400 | φ108 |
|
| 13 | DTC100/40/355S | 400 | 1000 | 2.0 | 500 | 25 | 355 | φ1000 | φ108 |
|
| 14 | DTC100/50/2×250S | 500 | 1000 | 3.15 | 510 | 20 | 2×250 | φ1000 | φ133 | SQD-500 |
| 15 | DTC120/70/2×355S | 700 | 1200 | 2.5 | 655 | 21.5 | 2×355 | φ1250 | φ133 |
|
| 16 | DTC120/50/2×400S | 500 | 1200 | 3.15 | 750 | 24 | 2×400 | φ1250 | φ133 |
|
| 17 | DTC140/80/2×355S | 800 | 1400 | 2.5 | 240 | 23 | 2×355 | φ1000 | φ133 |
|
5.Our service
(1)Design and select suiable equipment
(2)Layout draw, foundation draw and detail equipment manual. Timely report your production schedule and photos for keeping monitoring.
(3)Shipping
(4)After-service, can dispatch engineer to the site to guide the installation, commissioning, operation etc if client need.
