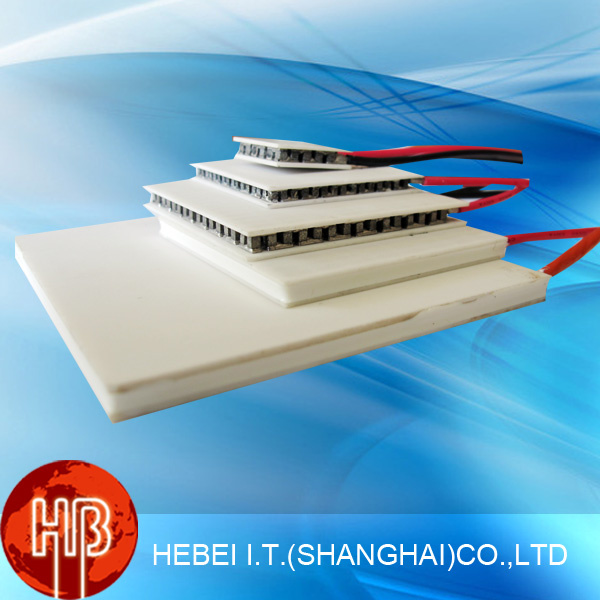

Cooling Module Tec1-12704 Peltier Divice
Product Specifications
| Prod Model: |
TEC1-12704 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Size: |
40X40X4.7mm |
| Working Temperature (Oc): |
-55 to 80 |
| Qmax (Watts): |
33.4W |
| Delta Tmax (Oc): |
66 |
| Imax (AMPS): |
4A |
| Vmax (Volts): |
15.4V |
| Module Resistance (Ohms): |
2.85-3.15 |
| Weight: |
31g |
| Material: |
Element Semiconductor |
| Manufacturing Technology: |
Peltier Divice |
| Type: |
Semiconductor Cooling Module |
| Model: |
Tec1-12704 |
| Brand: |
Hb |
Product Description
Cooling Module TEC1-12704 Peltier Divice
| Item Number | TEC1-12704 |
Heat-shrink tube on the end of wire |
Not available |
| Wire Criteria |
1.20AWG UL 1674, PVC insulated
2.Standard 105ºC tinned copper wire
3.General length:150±5mm
4.Length of tinning without outer sphere on the end of wire:5±1.0mm |
Resistance (ohms) | Environment Temperature 20ºC,1KHZ, 2.85-3.15 (ohms) |
| Packing | Foam box,each box 50pcs |
| Device Outline | 40X40X4.7, weight 31g |
| Working Temperature | -55ºC to+80ºC |
| Assembled overwhelm force | 60lb/Sq.In |
| P/N Couples | 127 couples |
| Imax | 4.0±0.5A (15.4VCD) |
| Vmax | 15.4 VDC |
| Qcmax | 33.4W(15.4VDC |
| ΔTmax | ≥66ºC |
Wire should be soldered on the hot side;
20AWG UL 1674, PVC insulated, Standard 105ºC tinned copper wire;
Resistance will be changed according to environment, environment temperature increase
or decrease1ºC crease or decrease 0.015.
