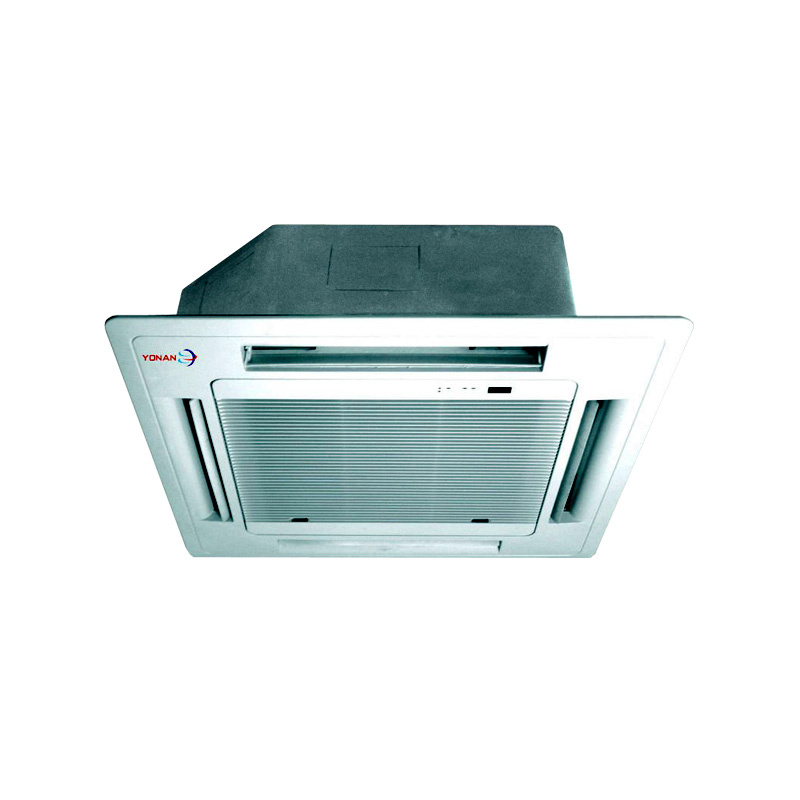

Cooling Only Ceiling Mounted Cassette Air Conditioner
Product Specifications
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Auto Defrosting: |
Yes |
| Type: |
Central Air Conditioners |
| Capacity: |
27000-48000 BTU |
| Usage: |
Room |
| Indoor Machine Noise: |
>50dB |
| Certification: |
BEB |
| China Energy Efficiency Standard: |
Level 1 |
| Cooling/Heating: |
Cooling/Heating |
| Power Source: |
Electrical |
| Power Type: |
AC |
| Condition: |
New |
Product Description
Cooling Only Ceilling Mounted Cassette Air Conditioner
Feature
1. Heat exchanger adopting Aluminum Foil/Inner Copper tube, high efficiency.
2. High control technology, long distance air supply.
3. Large airflow, low noise due to large diameter scroll fan.
4. Famous brand water pump discharge condensing water, to raise water height as high as 750mm.
5. Touchable electric contactor controls the water level. When the condensing water height in the fan coil is beyond the fixed height, the unit will stop running.
6. Adjust temperature exactly, the difference within ±1°C,using delicate resistance temperature sensor.
7. High efficiency sterilization filter screen to ensure the healthy new air cycle air.
8. Fresh air opening can introduce part of outdoor fresh air, to keep the indoor air quality
Specification
Power supply | V-ph-Hz | 220~240-1-60 |
| Cooling | Capacity | Btu/h | 38000 |
| Input | W | 4125 |
| EER | W/W | 3.0 |
| Heating | Capacity | Btu/h | / |
| Input | W | / |
| COP | W/W | / |
| Indoor fan motor | Model | | YDK90-6F |
| Qty | | 1 |
| Input | w | 160/124/95 |
| Capacitor | uF | 3.5UF/450V |
| Speed(hi/mi/lo) | r/min | 750/610/500 |
| Indoor coil | a.Number of rows | | 2 |
| b.Tube pitch(a)x row pitch(b) | mm | 21x13.37 |
| c.Fin spacing | mm | 1.5 |
| d.Fin type (code) | | Hydrophilic aluminium |
| e.Tube outside dia.and type | mm | Φ7,Inner grooved tube |
| f.Coil length x height x width | mm | 1990x252x26.74 |
| g.Number of circuits | | 12 |
| Indoor air flow (Hi/Med/Lo) | m3/h | 1545/1354/1187 |
| Sound level (sound pressure) | dB(A) | 44/42.5/41 |
| Throttle type | | / |
| Indoor unit | Dimension (W x Dx H)(body) | mm | 840x840x300 |
| Packing (W x Dx H)(body) | mm | 900x900x320 |
| Dimension (W x Dx H)(panel) | mm | 950x950x55 |
| Packing (W x Dx H)(panel) | mm | 1035x1035x90 |
| Net/Gross weight(body) | kg | 30/35 |
| Net/Gross weight | kg | 5/8 |
| Design pressure | MPa | 4.2/1.5 |
| Drainage water pipe dia. | mm | ODΦ32 |
| Refrigerant piping | Liquid side/ Gas side | mm | Φ9.52/Φ15.9(3/8"/5/8") |
| Controller | | RG51Q1/BGE |
| Operation temperature | Cooling | ºC | ≥17 |
| Heating | ºC | /
|
Shenzhen Yonan Appliance Co., Ltd. ( Predecessor is Shenzhen Yonan Air Conditioning Co., Ltd. Found in 2002) is adjusted in 2013, changed name to Shenzhen Yonan Appliance Co., Ltd. And successively set up wholly-owned subsidiaries Yonan Appliance Co., Limited and Foshan Yonan Appliance Co., Ltd. In order to expand the scale of the company and serve customers better.
AS one of the most important companies in home appliance industry in the world. We commit ourselves to R&D, production, sales and service of air conditioning, refrigerating and other home appliance products. Ranging from household air conditioner, commercial air conditioner, household refrigerator, kitchen appliance etc.
We are a large high-tech enterprise with a sales office in Shenzhen CBD, and factories in Foshan and Shenzhen, China. Our factory possesses a high-tech industrial park with land coverage of 8000, 000 square meters, and dozens of modernized production lines with an annual production capacity up to 12 million units of air conditioners, refrigerator, kitchen appliance and other home appliance.
After many years of rapid development, YONAN has achieved a lot, and become a leading brand home appliance industry. Its sales network for air conditioner, refrigerator, kitchen appliance and other home appliance covered more than 150 countries and regions. Now YONAN has become one of the most important manufacturers in China, and the fastest developing enterprise in home appliance industry. Especially during the world financial crisis, YONAN adjusts the sales policy immediately, sharing the losses with customers in crisis, and sticking together with customers in difficulty, which has been highly appreciated by customers worldwide.
It is YONAN' S corporate spirit that guarantees its rapid, stable, efficient development. Replying on human resources and managing by trust, we hold the business principle of "Quality is the basis of enterprise' S existence, science and technology is the suaranty of enterprise' S benefits, and brand & reputation is the power of enterprice development", and emphasize on technology and innovation. After making efforts for many years, YONAN has accomplished lots of research results and owned many core technologies. Up to now, YONAN products has passed more than 200 global authoritative certifications.
YONAN firmly believes that success comes from efforts, and prospect goes with challenge. YONAN team will constantly pursue efficiency and innovation to improve overall management skill, and maintain high-speed development. To achieve a better tomorrow, YONAN will keep on continuous innovation, and YONAN brand will definitely be acknowledged has a famous brand in the world.
