| Price: | US $ 350-400cubic meters |
|---|---|
| Trade Terms: | FOB,CIF,EXW |
| Min Order: | 500cubic meters |
| Pay Type: | T/T |
| Type 7090 | Type 7060 | Type 6090 | Type 5090 | ||
| H(mm) | 1000 . 1500 . 1800 . 2000 | Custom-made by client's require | |||
| W(mm) | 300 . 600 . 900 | Custom-made by client's require | |||
| D(mm) | 100 . 150 . 200 . 300 | Custom-made by client's require | |||
| h(mm) | 7 | 6 | 5 | ||
| a | 45 | 45 | 45 | 45 | |
| b | 45 | 15 | 45 | 45 | |
| Color | Brown color / Green . Blue . Black . Yellow side coated | ||||

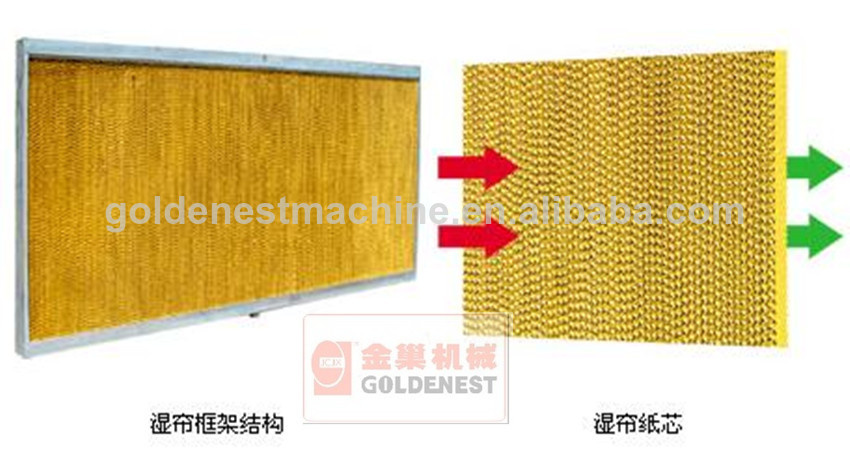

the feature and benefit:
1.the pad made by imported fiber paper,keep durable and corrosion resistant .
2.the frame made by galvanized steel plate,stainless steel or aluminium alloy,keep it solid and long serve life.
3.the standard liked the form above,the size and frame material can custom along your require.
4.the cooling pad keep heavy water capacity and strong cooling rate.
5.the area of water evaporation is big,cooling rate as high as 80% more.
6.enduring to provide comfortable temperature and humidity for poultry house.
working theory:
Water go through the pipe under the pressure of pump and enter the paper,then form water spray,at the same time, the dry and hot air go through the cooling pad under the pressure of fans,the heat in the air left by the cool water in the cooling pad, in this way,reach the cooling purposes.

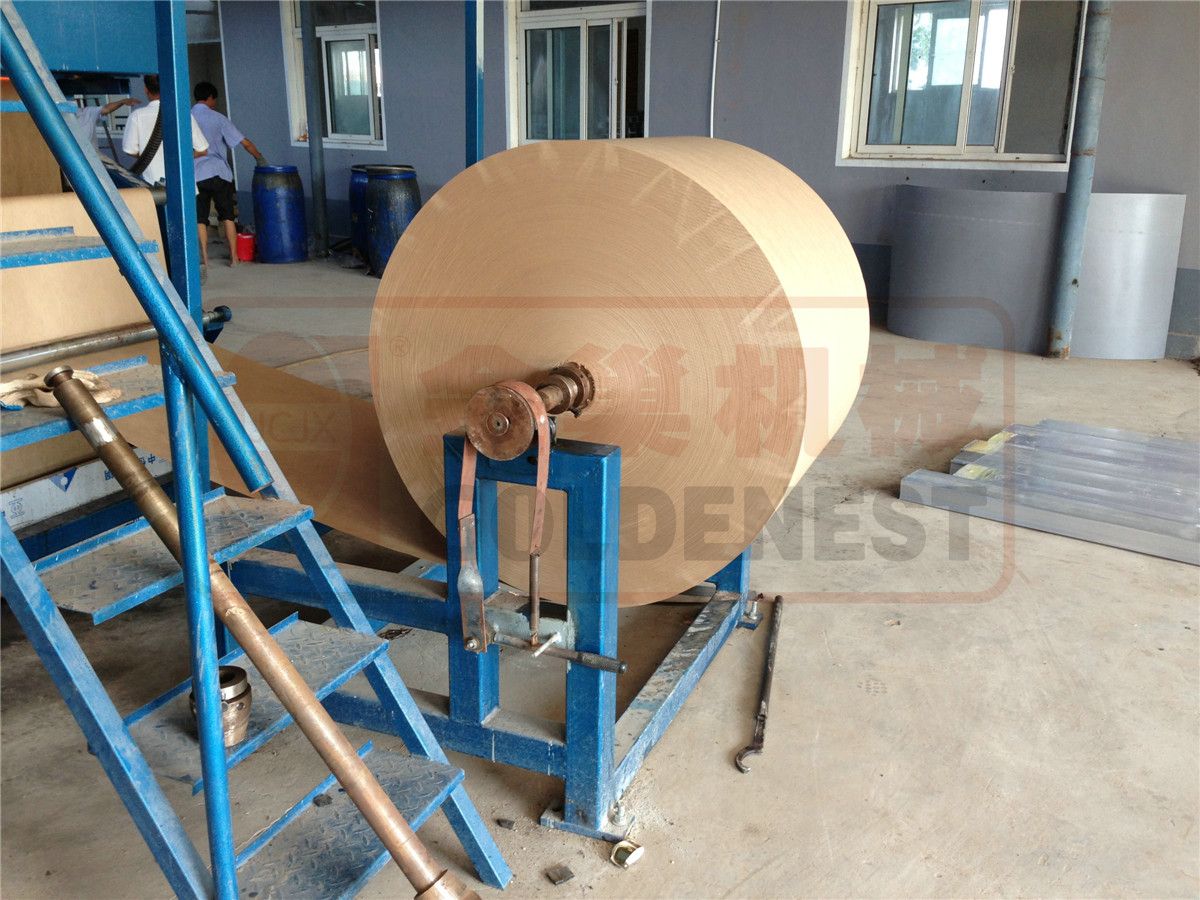

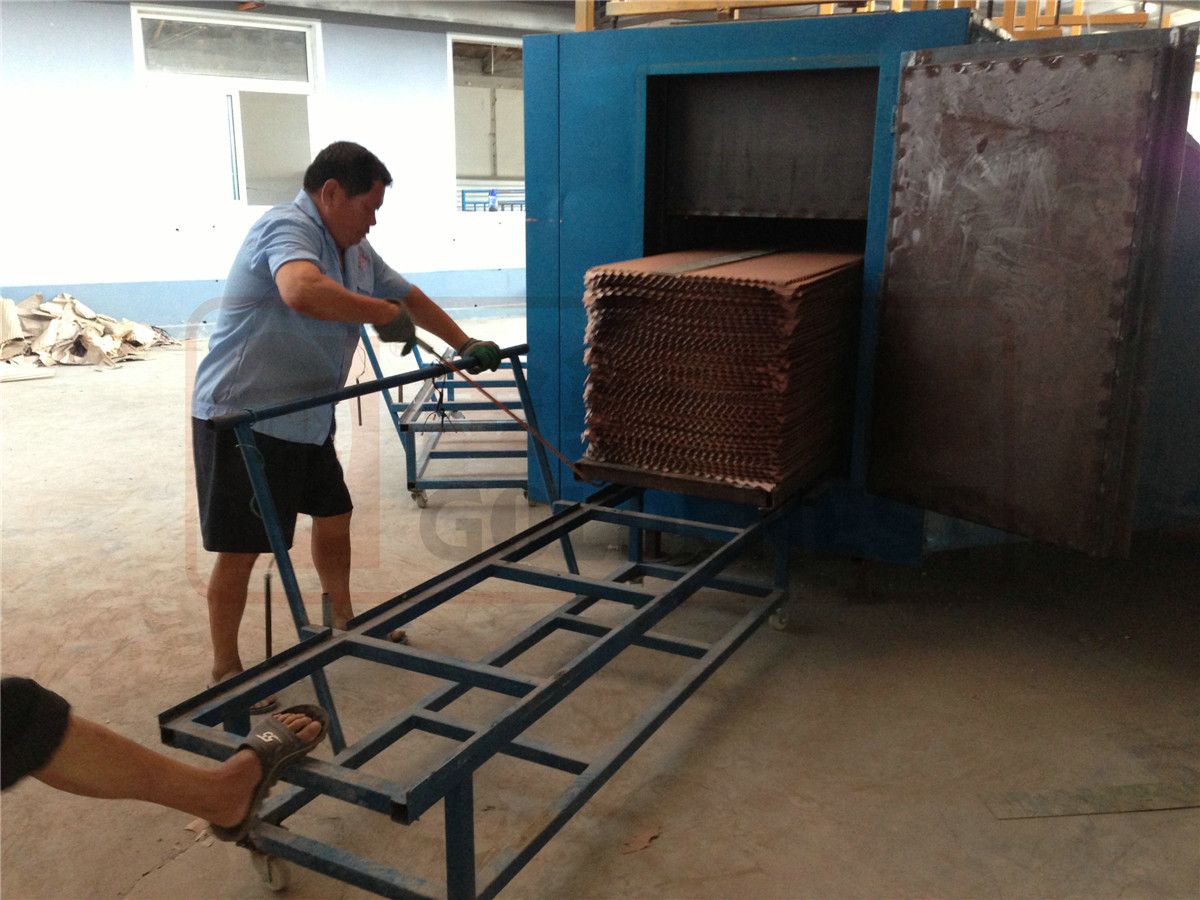

the produce line flow of cooling pad
the sprayer and water pipe
| Prod Model: | JCJX-79 |
|---|---|
| Markets: | North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Life Duration: | 10 Years |
| Size: | Customized |
| Power Source: | Electric |
| Type: | Poultry Production Equipment |
| Usage: | Ventilation |
