Product Specifications
| Prod Model: |
ZB66 76 88 KQ-TFD |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Type: |
Rotary |
| Performance: |
Low Noise |
| Drive Mode: |
Electric |
| Power Source: |
AC Power |
| Configuration: |
Stationary |
| Material: |
Stainless Steel |
| Piston Type: |
Closed |
| Lubrication Style: |
Lubricated |
| Application: |
Back Pressure Type, Intermediate Back Pressure Type |
Product Description

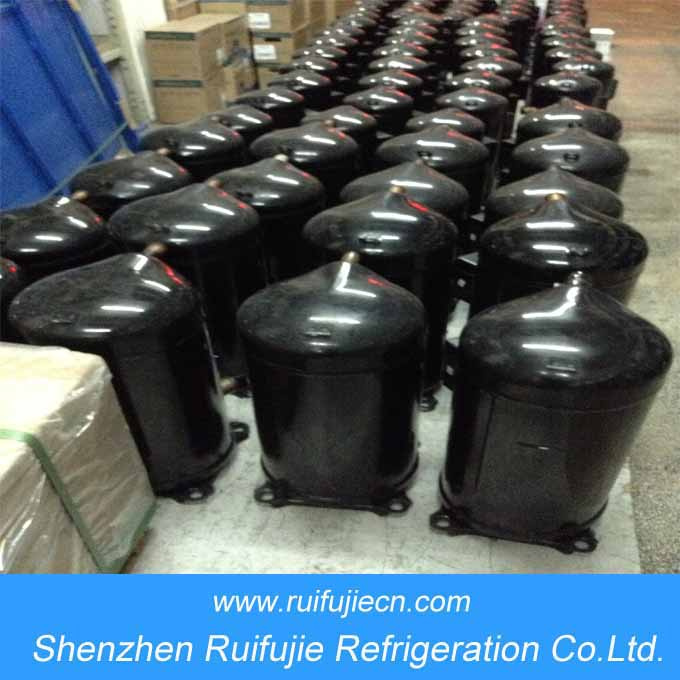

Copeland Scroll Compressor (ZB66 76 88 KQ-TFD)
Refrigerant: R404/R22 50Hz
Med Temperature
Large operating envelope
Fast temperature pull down capabilities
Light weight and compactness
Copeland Scroll Digital® Technology for simple, step-less capacity modulation
| COMPRESSOR | Cond. |
| Capacity Qo [Watt] Power Consumption Pe [kW] |
|
|
|
|
|
|
| MODELS | Temp. |
| Evaporating Temperature | m 3 /h | (A) | (\\) |
|
|
| -30 | -25 | -20 | -15 | -10 | -5 | 0 | 5 | 7 | 10 |
| ZB66KQ-TFD | 30 | Q |
| 10.65 | 11.15 | 14.64 | 18.03 | 21.83 | 26.38 | 31.47 | 34.13 | 38.72 | 25.10 | 17.30 | 240.2*240.2*533.3 |
| 40 | Q |
| 9.40 | 9.87 | 12.95 | 15.96 | 19.32 | 23.35 | 27.85 | 30.21 | 34.26 |
| 50 | Q |
|
|
| 11.67 | 14.37 | 17.41 | 21.03 | 25.10 | 27.31 | 30.86 |
| 30 | P |
| 4.08 | 4.27 | 4.38 | 4.53 | 4.73 | 4.90 | 5.21 | 5.36 | 5.65 |
| 40 | P |
| 5.16 | 5.30 | 5.45 | 5.60 | 5.69 | 5.85 | 6.07 | 6.15 | 6.32 |
| 50 | P |
|
|
| 6.60 | 6.75 | 6.90 | 7.02 | 7.17 | 7.25 | 7.35 |
| ZB76KQ-TFD | 30 | Q |
| 10.85 | 13.45 | 16.40 | 19.90 | 23.90 | 28.60 | 34.00 | 36.00 | 40.00 | 28.90 | 17.30 | 240.2*240.2*533.3 |
| 40 | Q |
| 9.85 | 12.20 | 15.00 | 18.20 | 21.90 | 26.20 | 31.00 | 33.00 | 36.50 |
| 50 | Q |
|
|
| 13.45 | 16.40 | 19.80 | 23.70 | 28.20 | 30.00 | 33.50 |
| 30 | P |
| 4.59 | 4.77 | 4.95 | 5.15 | 5.40 | 5.70 | 6.15 | 6.35 | 6.75 |
| 40 | P |
| 5.65 | 5.85 | 6.05 | 6.25 | 6.45 | 6.70 | 7.00 | 7.15 | 7.40 |
| 50 | P |
|
|
| 7.25 | 7.50 | 7.70 | 7.90 | 8.15 | 8.25 | 8.45 |
| ZB88KQ-TFD | 30 | Q |
| 13.45 | 16.60 | 20.30 | 24.60 | 29.50 | 35.00 | 41.50 | 44.50 | 49.00 | 35.60 | 22.10 | 240.2*240.2*533.3 |
| 40 | Q |
| 12.20 | 15.10 | 18.50 | 22.40 | 27.00 | 32.00 | 38.00 | 41.00 | 45.00 |
| 50 | Q |
|
|
| 16.60 | 20.20 | 24.40 | 29.20 | 34.50 | 37.00 | 41.00 |
| 30 | P |
| 6.00 | 6.20 | 6.35 | 6.55 | 6.80 | 7.15 | 7.60 | 7.85 | 8.25 |
| 40 | P |
| 7.30 | 7.55 | 7.75 | 7.95 | 8.20 | 8.45 | 8.75 | 8.90 | 9.20 |
| 50 | P |
|
|
| 9.35 | 9.55 | 9.80 | 10.00 | 10.30 | 10.40 | 10.60 |
| ZB11MC-TFD | 30 | Q |
| 16.40 | 20.30 | 24.80 | 30.00 | 36.00 | 43.00 | 51.00 | 54.50 | 60.00 | 42.10 | 29.20 | 324*294* 591.89 |
| 40 | Q |
| 14.70 | 18.30 | 22.50 | 27.30 | 33.00 | 39.50 | 47.00 | 50.00 | 55.00 |
| 50 | Q |
|
|
| 20.00 | 24.50 | 29.70 | 35.50 | 42.50 | 45.50 | 50.50 |
| 30 | P |
| 7.25 | 7.40 | 7.60 | 7.85 | 8.10 | 8.45 | 8.95 | 9.20 | 9.65 |
| 40 | P |
| 8.85 | 9.10 | 9.35 | 9.55 | 9.80 | 10.00 | 10.40 | 10.50 | 10.80 |
| 50 | P |
|
|
| 11.30 | 11.50 | 11.80 | 12.00 | 12.30 | 12.40 | 12.60 |
1. Reliable supplier with 10 years experience.
2. Mature technique and professional employee.
3. Authorized certificates like SGS, CE and ISO9001
4. Competitive factory wholesale prices
5.24 hours in service for the customers
6. Safe and fast delivery.
About US:
Our main products are as follows:
1, COPELAND COMPRESSORS, VR, ZR, ZB, ZH SERIES,
2, DANFOSS PERFORMA COMPRESSORS, SM, SZ, SH SERIES,
3, MANEUROPE PISTON COMPRESSORS, MT, MTZ NTZ, MPZ SERIES
4, DANFOSS COMMERCIAL COMPRESSORS, FR, SC SERIES, .
5, DANFOSS AIR CONDITIONAING AND REFRIGERATION PARTS,
TE, TDE, TGE, PHT SERIES TERMOSTATIC EXPANSION VALVES
ETS SERIES EXPANSION VAVLES,
EVR SERIES ECPANSION VAVLES AND
KP1, KP5, KP15 SERIES PRESSURE CONTROLS
DCL DML LIQUID LINE FILTER DRIERS
With arising market and demand on Chinese original products, we supply only quality and qualified Chinese products with our own Brand or OEM brand on following products:
BALL VAVLES, HAND VAVLES, OIL SEPERATORS, WITH RELIABLE QUALITY.
By standing on ground of Chinese market, we could serve our customers in refrigeration and air conditioning globally. With our best product quality and good service, we can cooperate with our customer to improve their products quality and reduce the cost.
We have sales channels all around the world and products well received by our clients.
We hope to establish close cooperation relationship with our partners and distributors, and develop our business together in this fast growing environment.
You are welcomed to make any enquiry!
