Price: | US $ 90000-100000/Piece |
---|---|
Trade Terms: | FOB,EXW |
Min Order: | 1/Piece |
Pay Type: | L/C,T/T |

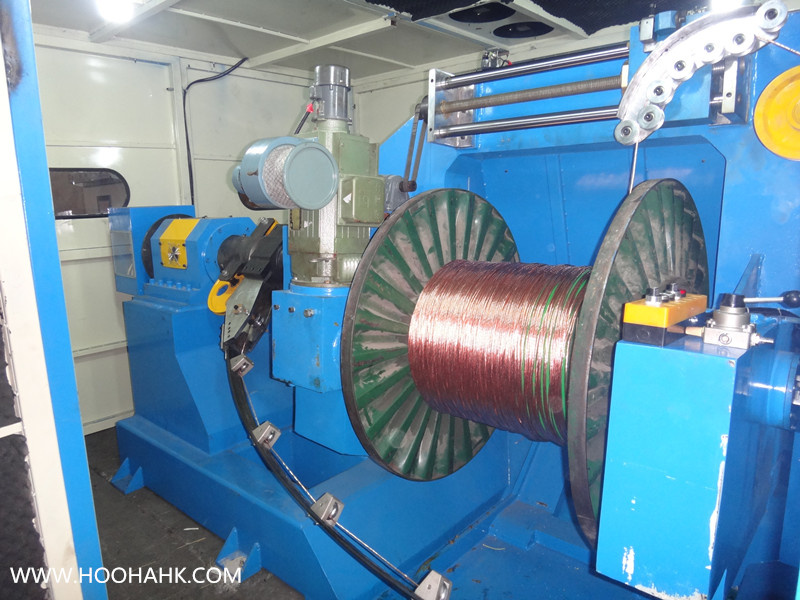

Machine type | GEM YOUNG-φ1250D |
Wire product of stand | Special use twist aluminum and copper round press dowm the conductor |
Cooper wire individual | Φ1.5-4.8 |
Finish standed wire/max. | 10 mm φ/max |
Finish standed wire/Max. | 15mm φ/max |
Section of strand-twisting(Flexible strand) | 3.5÷70mm2(6AWG÷450MCM) |
Section of strand-twisting(Semi-frametwisting1+6) | 3.5÷50mm2(6÷1/0AWG) |
Section of compaction Cu | 3.5÷50mm2(6AWG÷300MCM) |
Section of compaction Al | 3.5÷70mm2(6AWG÷301MCM) |
Line speed/Max. | 150mpm/max |
Stand pitch(mm) | 40-350mm |
60 | 8000rpm/max.(1600TPM) |
Load weight/Max. | 3000KG |
Max.compaction angle | 13% |
Traction pulley | 2×φ600mm |
Standing Direction | S,Z Direction |
Main motor(DC/AC/HP) | 55kw D.C. motor |
Drive of Capstan(DC/AC/HP) | 30kw D.C. motor |
Drive of take-up unit(DC/AC/HP) | 7.5kw D.C. motor |
Drive of traverser | 0.75kw Inverter motor |
Drive of liading&unloading | 1.5kw Inverter motor |
Power control | Digital type DC control |
Revise system | Line speed synchronous auto control |
Spool bobbin size OD | OD:φ1250 mm/Max |
Spooler size OW | 950×800×80(mm) |
Control system | PLC man-machine interface |
Tension control | Coiling motor indicates tension control |
Lay stranding pitch | PLC digitization setting |
Operating direction | Left/ right hand machine |
Traversing width | 1000mm/Max |
Traversing unit | Wire diameter setting by digital type |
Take-up type | Reel taken between pneumatic pintles |
Reel loading & unloading | Liquefaction automatic positioning |
Brake system | Disc brake |
Bearing lubricative type | Oiling regularly |
Air pressure | 6kg/cm2 |
Vogtage | 380V 50Hz |
Noise level | 80db |
Machine size | (L)6030×(W)2280×(H)2280mm |
Weight | 12500kg |
GEM YOUNG R&D TEAM | ||||
Name | Position | working experience | Main research | successful project |
zanyang Xie | General engineer | 10 years | Drawing and designer | power cable machine |
xiaohua Hu | Vice general engineer | 8 years | Designer | cate5 cable machine |
jingxin Liu | cable technology engineer | 15 years | cable making designer | teflon cable machine |
weihua Li | electrical engineer | 7 years | electrical research | over seas machine install |
kangyou Wu | produce manager | 6 years | product produce | car cable machine |
Jack | sells manager | 5 years | export service | 3 times overseas after service |
Prod Model: | GEM-1000/1250mm |
---|---|
Markets: | North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Usage: | Twisting |
Cooper Wire Individual: | 1.5-4.8 |
Weight: | 12500kg |
Noise Level: | 80db |
Vogtage: | 380V 50Hz |
Bearing Lubricative Type: | Oiling Regularly |
Precision: | High Precision |
Certification: | ISO |
Demoulding: | Slide |
Heating System: | Electric |
Function: | High Temperature Resistance |
Mould Life: | 300,000-1,000,000 shots |
Automatic Grade: | Automatic |
Condition: | New |
Customized: | Customized |
Warranty: | 12 Months |
