Product Specifications
Product Description

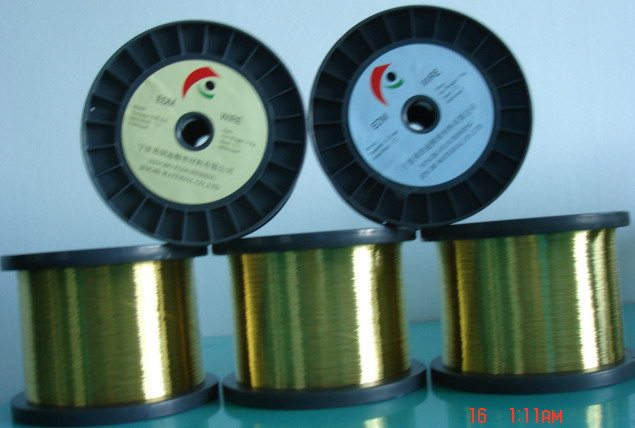

Features Specifications: EDM Wire
Material: Copper
The series includes different types:
1
) Kingcut(Material brand CuZn35)
King cut series is the EDM wire with normal barss wire (cuzn35)As the core material and zinc coted on the surface.
Color: Silver gray
Diameter: 0.10mm, 0.15mm, 0.20mm, 0.25mm, 0.30mm
Wire: Hard, soft
Tensile Strength: Hard: ≥980 N/mm2; 900-1080N/mm2
Soft: Below 450 N/mm2
Elongation: Hard: ≤ 3%
Soft: >25%
Spool Type: P3, P5, P10, P15, DIN-125, DIN-160, DIN-200
2)Efficientcut(Material brand CuZn40)
Zinc EDM wire high contents. Flourishing strictly control raw material and technology which assure suitable tensile strngth of wires.
Color: Golden
Diameter: 0.10mm, 0.15mm, 0.20mm, 0.25mm, 0.30mm
Wire: Hard, semi-hard, soft
Tensile Strength: Hard: ≥980 N/mm2; 900-1080N/mm2
Soft: Below 450 N/mm2
Elongation: Hard: ≤3%
Soft: >25%
Spool Type: P3, P5, P10, P15, DIN-125, DIN-160, DIN-200
Ningbo Flourishing Precision Electron Co., Ltd. Was set up in 2002, own an area of 32000 square meters, and more than 200 stuffs, month output 150Mton. Our factory specialized in R&D and producing EDM wires that own full sets of advanced imported machines & Equipment, perfect teams of senior engineers and technical experts with some years` experience. Our fine wires are produced in accordance with Japanese JIS, American ASTM/CDA, German DIN, the specification from 0.1mm to 0.3mm, we have become a leader in the same kind, the feature and precision are also first in China and even better than international level. Our products are being sold in Europe, America, Japan, East Asia and so on. They are reliable and trusted by domestic and foreign customers, Our company was certified by ISO9001 in 2003. By our continuous efforts, supports and confidence from customers, we are growing fast and believe that Ningbo Flourishing will provide you better products and more perfect services depending on advanced management system and technical advantages.
Quality target:
First class staff
First class products
First class services
We insist:
Quality is the basis for developing the marker continuously
Good products are made through creation and hard work
We promise:
Your inquiry will be responded promptly.
