Product Specifications
| Prod Model: |
CKA8 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Keywords: |
Copper Terminal Connector |
| Material: |
Brass |
| Rated Voltage: |
250~450V |
| Rated Current: |
125~160A |
| Middle Screw: |
M5 X 10 |
| Two End Screw: |
M8 X 12 |
| Certificate: |
CE |
| Package: |
Standard Export Package |
| Export Port: |
Ningbo or Shanghai |
| Delivery Time: |
7~15 Working Days |
| Application: |
Lighting |
| Environmental Protection: |
Resistance to Environmental |
| Connection Mode: |
Threaded Connection |
| Shape: |
Rectangle |
| Contact Termination Form: |
Screws Fixed |
| Brand: |
Ygen |
Product Description

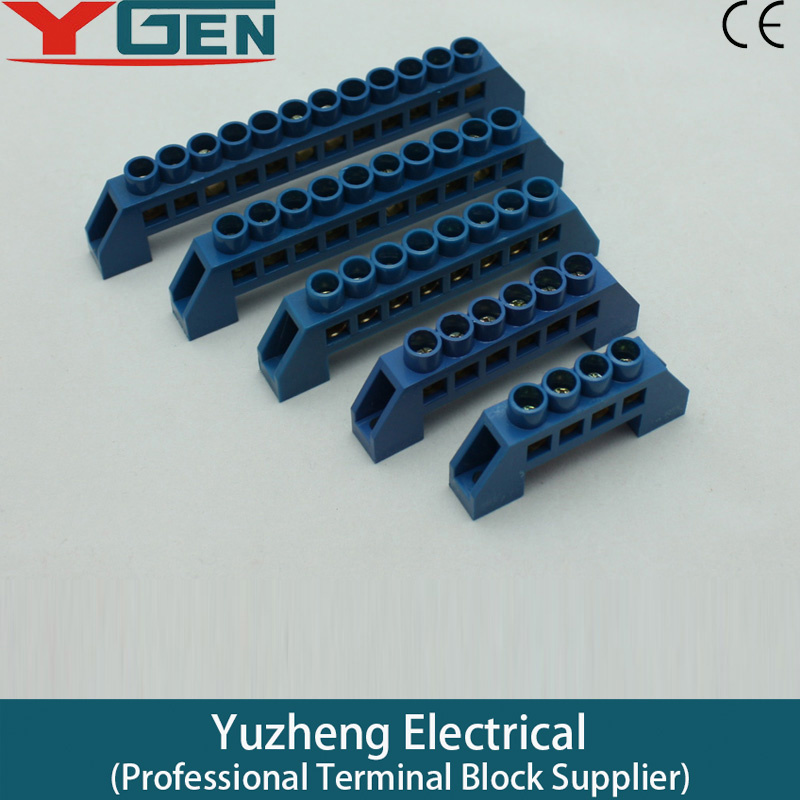

Copper terminal block connector with cover
*Professional Manufacturer of Copper Terminal Block
*CE Approved of Copper Terminal Block
CKA3 Series
Material: Brass (Nickel-plated Brass) and Screw (Zinc-plated Iron)
Rated Voltage:250~250V
Rated Current:125~160A
We are professional manufacturer of terminal block/ connector in Zhejiang,China.
We offer OEM service,we can customized for any custmers' requirement.
We can offer free sample for your testing purpose,if possible.
Delivery Method: By sea (Ningbo Port/Shanghai Port) ,By Air,By Express (DHL,Fedex,TNT,etc)
Payment Methond:T/T,PAYPAL,Western Union
Delivery Time: 7~10 working days
| CKA1-0609 Series |
| Pole Number | Mount Lenght (mm) | Size (mm) | Brass cross-section (mm2) |
| 7 | 35x7.5 | 50x21 | 6x9 |
| 8 | 35x7.5 | 57x21 | 6x9 |
| 10 | 35x7.5 | 71.5x21 | 6x9 |
| 12 | 35x7.5 | 84.5x21 | 6x9 |
| 13 | 35x7.5 | 91x21 | 6x9 |
| 15 | 35x7.5 | 104x21 | 6x9 |
| CKA2-0609 Series |
| Pole Number | Mount Lenght (mm) | Size (mm) | Brass cross-section (mm2) |
| 7 | 64.5 | 76.5x12.5 | 6x9 |
| 8 | 77.5 | 89.5x12.5 | 6x9 |
| 10 | 90.5 | 102.5x12.5 | 6x9 |
| 12 | 103.5 | 115.5x12.5 | 6x9 |
| 13 | 116.5 | 128.5x12.5 | 6x9 |
| 14 | 129.5 | 141.5x12.5 | 6x9 |
| 16 | 142.5 | 154.5x12.5 | 6x9 |
| CKA2-0812 Series |
| Pole Number | Mount Lenght (mm) | Size (mm) | Brass cross-section (mm2) |
| 7 | 71.5 | 84.5x12.5 | 8x12 |
| 8 | 86.5 | 99.5x12.5 | 8x12 |
| 10 | 101.5 | 114.5x12.5 | 8x12 |
| 12 | 116.5 | 129.5x12.5 | 8x12 |
| 13 | 131.5 | 144.5x12.5 | 8x12 |
| 14 | 146.5 | 159.5x12.5 | 8x12 |
| 16 | 161.5 | 174.5x12.5 | 8x12 |
| CKA4-0609 Series |
| Pole Number | Mount Hole (mm) | Length (mm) | Brass cross-section (mm2) |
| 4 | 4.2 | 35 | 6x9 |
| 6 | 4.2 | 47 | 6x9 |
| 9 | 4.2 | 68 | 6x9 |
| 12 | 4.2 | 83 | 6x9 |
| CKA5-0609 Series |
| Pole Number | Mount Lenght (mm) | Size (mm) | Brass cross-section (mm2) |
| 4 | 35x7.5 | 88.5x12.1 | 6x9 |
| 6 | 35x7.5 | 88.5x12.1 | 6x9 |
| 8 | 35x7.5 | 88.5x12.1 | 6x9 |
| 10 | 35x7.5 | 88.5x12.1 | 6x9 |
| 12 | 35x7.5 | 90.5x12.1 | 6x9 |
| 14 | 35x7.5 | 103.5x12.1 | 6x9 |
| 16 | 35x7.5 | 116.5x12.1 | 6x9 |
| CKA5-0812 Series |
| Pole Number | Mount Lenght (mm) | Size (mm) | Brass cross-section (mm2) |
| 4 | 35x7.5 | 88.5x12.1 | 8x12 |
| 6 | 35x7.5 | 88.5x12.1 | 8x12 |
| 8 | 35x7.5 | 88.5x12.1 | 8x12 |
| 10 | 35x7.5 | 88.5x12.1 | 8x12 |
| 12 | 35x7.5 | 102x12.1 | 8x12 |
| 14 | 35x7.5 | 117x12.1 | 8x12 |
| 16 | 35x7.5 | 132x12.1 | 8x12 |
