Product Specifications
| Prod Model: |
OBM-9800 |
| Markets: |
Southeast Asia,Eastern Asia |
| Type: |
Data Collector |
Product Description

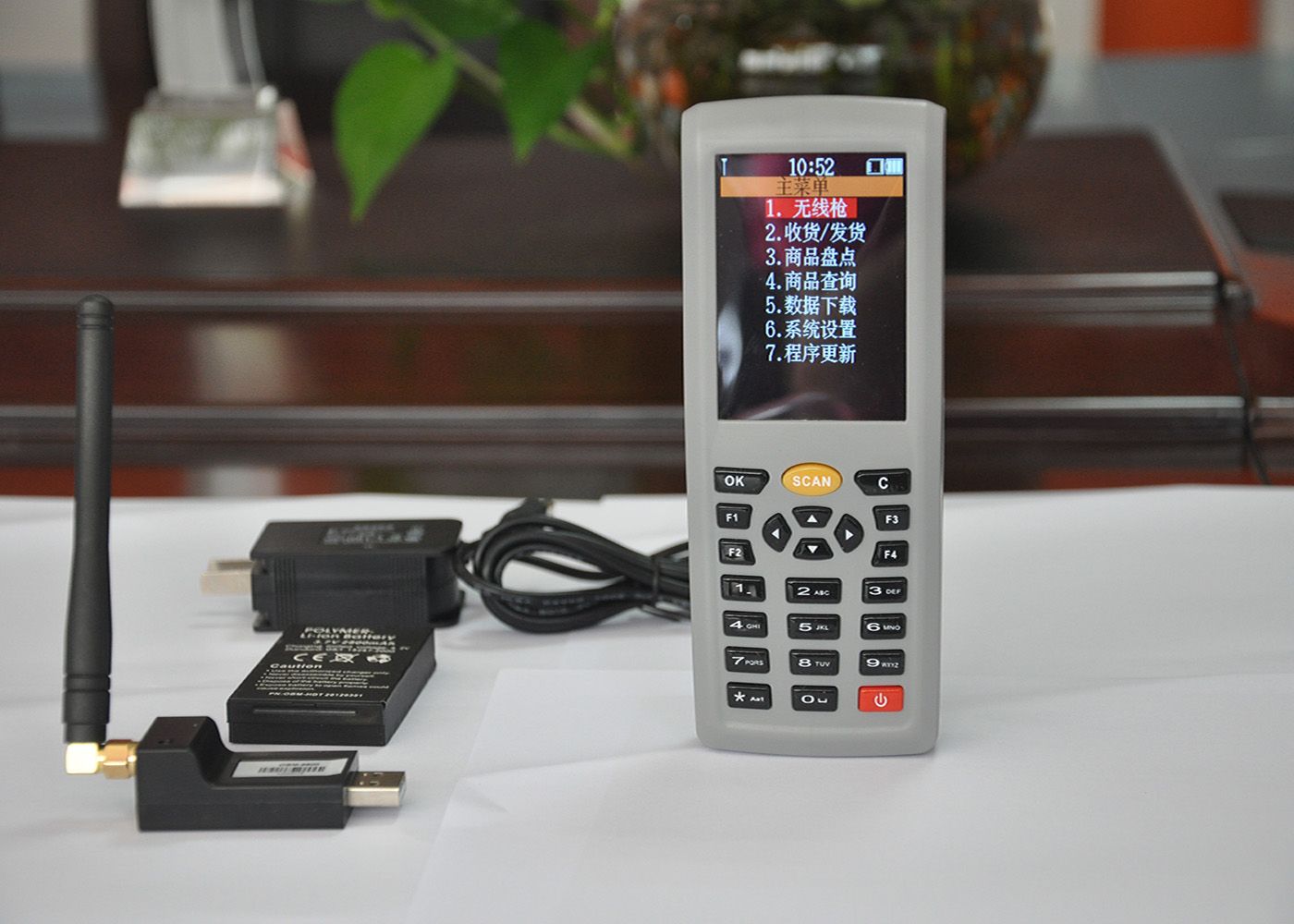

Cordless Inventory Handheld for Barcode
Features:
Cordless Scanner and Wireless Inventory handheld functions integrated;
Item name displays right after the barcode is scanned;
Program refreshing supported;
TXT or EXCEL file created as soon as data is uploaded;
Use as a USB flash disk(optional).
About Us:
Easytech is a technology-driven company specialized in the Auto-Identification (Barcode & RFID) industry.
Products include Wireless/Cordeless/Corded Laser Barcode Scanner, CCD Bar code Scanner, Barcode
Data Terminal, Stock Counter, Inventory Control Handheld, Mobile POS, RFID Data Terminal and RFID
Reader.
|
Main Unit |
|
Model |
OBM-9800 |
|
Color |
Frosted white |
|
CPU speed |
48MHz |
|
Memory |
|
RAM |
64KB |
|
ROM |
16MB (optional 32MB) |
|
SCREEN |
|
size |
2.8" |
|
color |
16bit true color(65536 colors) |
|
resolution |
240*320 TFT |
|
Physical |
|
Battery |
Rechargeable Lithium-ion (3.7V,2800mAh) |
|
Working time |
8 hours |
|
Standby |
15 days |
|
Dimension |
150mm×63mm×31mm |
|
Material |
ABS + silicone |
|
Charging indicator |
LCD |
|
Working current |
190mA |
|
Standby current |
40mA |
|
EMC |
CE & FCC DOC compliance |
|
Scanning |
|
Light Source |
650nm |
|
Decode Rate |
45±2 scans / second |
|
Resolution |
4mil |
|
Scan width |
20mm@window, 100mm@100mm |
|
Depth of Field |
0~250mm(0.33mm,PCS 90%) |
|
indicator |
beeper,LCD |
|
Barcode supported |
EAN-8,EAN-13,UPC-A,UPC-E,Code 39,Code 93,Code 128,EAN128,Codaber,Industoal 2 of 5,Interleave 2 of 5,Matrix 2 of 5,MSI |
|
Transmission |
|
cable |
USB 2.0 |
|
wireless |
433MHz (max. 300m) |
|
Environment |
|
Working Temperature |
0~45 |
|
Storing Temperature |
-20~60 |
|
Humidity |
5%~95% |
|
Lumination |
Max.5,000 Lux(Fluorescence) |
