Easytech Systems Inc. >> Cost-Effective Wireless Inventory Handheld Data Collector (OBM-9800)

Cost-Effective Wireless Inventory Handheld Data Collector (OBM-9800)

Name: Cost-Effective Wireless Inventory Handheld Data Collector (OBM-9800)
Brand: china-manufacturer-directory.com
SKU: 740025475
Availability: InStock
Rating: 5 (75 reviews)

Supplier:	Easytech Systems Inc.
Price:	Negotiable/Piece
Min Order:	1/Piece
Quantity::
Trade Terms:	FOB,CFR,EXW

Product Specifications

Prod Model:	OBM-9800
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Light Source:	650nm Laser
Power Voltage:	5V
Working Current:	57mA
Standby Current:	40mA
Dimension:	150mm×63mm×31mm
Material:	ABS + Silicone
Charging Indicator:	LCD
EMC:	CE & FCC Doc Compliance
Resolution:	4mil
Depth Of Field:	0~250mm(0.33mm, PCS 90%)
Certification:	ISO
Type:	Data Collector

Product Description

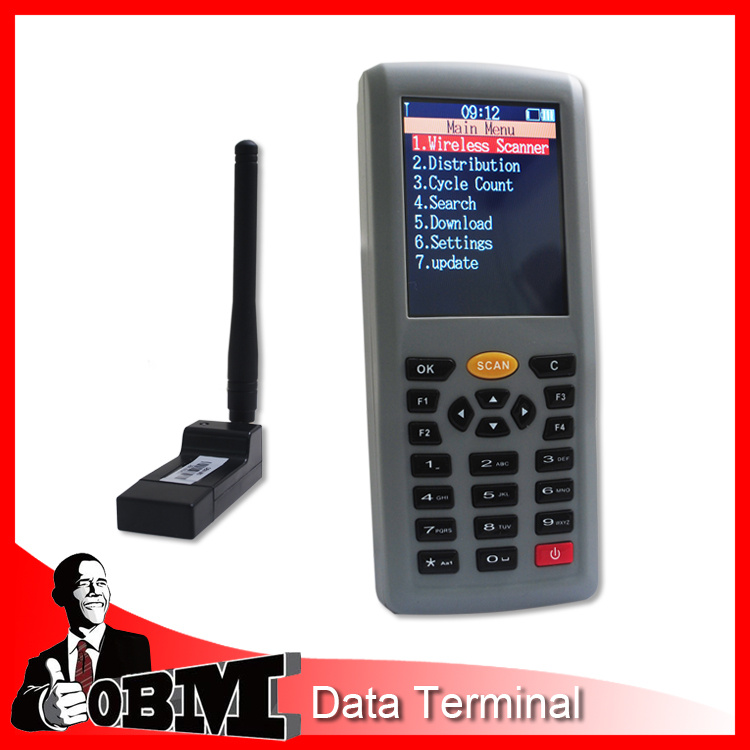

Wireless Barcode Scanner Data Collector Handheld PDA(OBM-9800)
Our most hot-selling laser barcode scanner with its excellent performance and attractive price at overseas market.
Read all of 1D barcodes, with CE and ISO certificate.
Button performance is amazing.

1. Antiknock design: Withstand 1.5M drops
2. Error rate less than 1/5 million
3. Service life of button reaches up to 50 million times
4. Convenient and flexible automatic induction function
5. Very comfortable operation sense
6. Supporting the RS232, PS2 and USB interface
7. Full independent intellectual property rights (having been award with multiple national patents)

Light source	650nm laser
Bit error rate (BER)	1/1 million
Safety performance	Meet the Grade II National Criteria for Laser Safety
Scanning method	automatic or manual
Supported interfaces	RS232, PC2 keyboard, USB
Wireless Receiver	433Mhz frequency
Working Mode	Real Time or Storage
Barcode types	EAN-8, EAN-13, UPC-A, UPC-E, Code 39, Code 93, Code 128, EAN128, Codaber, Industoal 2 of 5, Interleave 2 of 5, Matrix 2 of 5, MSI, Chinese postcode etc.
Use type	Hand-held or bracket-held installation
Resolution (pcs0.9)	0.10mm(4mil)
Depth of field	10-420mm (pos09 density 0.25)
decode rate	100 times/second
precision	0.10-0.825mm
scan width	60mm at 30mm; 98mm at 100mm
Reading angle of elevation	60 degree
Power voltage	5V
Working current	57mA
Static current	36mA
Light intensity	Daylight, 4000Lux max
Operating temperature	-20° C-45° C
Storage temperature	-20° C-45° C
Operating humidity	5%-85%
Storage humidity	5%-85%
color size and weight	23.5x17.5x7.5cm 0.56KG\color box
carton size and Qty	60x40x50cm , 32pcs/carton

Easytech is one of leading high technology companies which is specialized in the Auto-Identification (Barcode & RFID machine) industry. Our products include Laser Barcode Scanner, CCD Barcode Scanner, Barcode Data Terminal, RFID Data Terminal and RFID Reader.

In quest of the goal of "making the best cost-effective Auto-ID products in China", Easytech complies with a high standard and restrict requirements on product development, manufacture and services, and continuously searches for and releases products out of new demands of customers to meet the ever-changing market needs. Besides, Insisting on a principle of "well done of the experienced product before moving on to the next new, Making a plan on the new generation for the future while developing the present", Easytech is able to release at least one of leading products from the same industry every year.

Because of excellent performance and high quality of the products, Easytech has imajor companies such as China Mobile, China Telecom, China Petrol and branches of Public Security, and also our products are seen in many other retailers, chain-stores, logistic and manufacturing enterprises. In 2007, Easytech is honored as one of the "Top 10 National Brand of Barcode Industry" by the Auto-Identification Association of China.

Let us work together and make a better tomorrow with all new and old customers from all over the world.
