Shanghai Huayuan Electronic Co., Ltd. >> Costom PVC ISO/IEC 14443-a MIFARE Classic 1K Membership Loyalty Smart Card

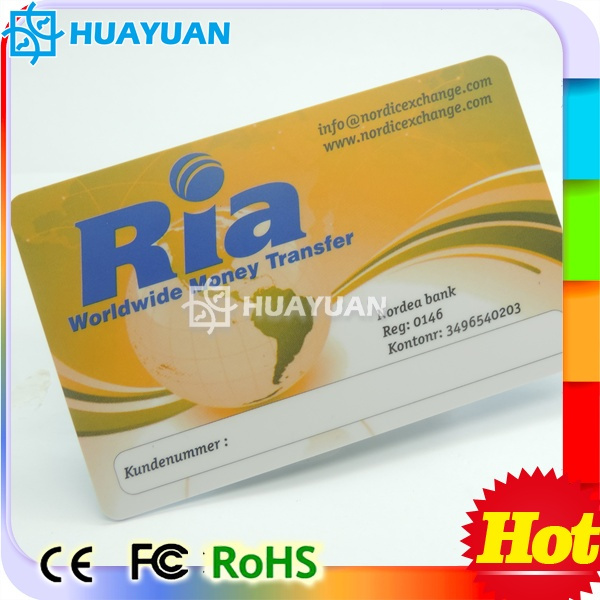

Costom PVC ISO/IEC 14443-a MIFARE Classic 1K Membership Loyalty Smart Card

Costom PVC ISO/IEC 14443-a MIFARE Classic 1K Membership Loyalty Smart Card
Price: US $ 0.25-0.38/Piece
Trade Terms: FOB,CFR,EXW
Min Order: 1000/Piece
Pay Type: L/C,T/T,Western Union,Paypal,Money Gram

Product Specifications

Prod Model: pre-printing card
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Card Surface: Matte/Gloss Finish
Dimension: Cr80 86X54X0.76
Production: Lamination
MOQ: 1000PCS
Chip: MIFARE Classic 1K
Price: Competitive
Color: Cmyk or Customized Color
Shipping Time: 8-12 Days
Sample: Free Sample
Sample Time: 1day
Function: Information
Material: PVC
Frequency: High Frequency

Product Description

MIFARE Classic®  1K smart card Description:

 - IC manufacturer: NXP founded by Philips
 - Wafer die: MF 1 IC S50
 - Unique serial number (4 Byte and 7 Byte)
 - Function: Read/Write protect by password.
 - Memory: 1K-Byte EEPROM(16 sectors)
 - Frequency: 13.56MHz
 - RF protocol: ISO 14443A
 -
Read distance: up to 10 cm with true anti-collision properties,without  battery.

MIFARE Classic®  1K Smart Card Key Features:

MIFARE Classic® 1K description:
BrandNXP Original
Chip Part NO:MIFARE Classic® 1K(NXP Genuine)     Warranty     1 Year
Unique serial numberSerial number(4byte and 7byte)
FunctionRead/write protect by key A or key B
Memory1K-byte EEPROM(16 SECTORS)
FrequencyHF:13.56MHZ
RF ProtocolISO 14443 TYPE A
Reading disdance5-10CM

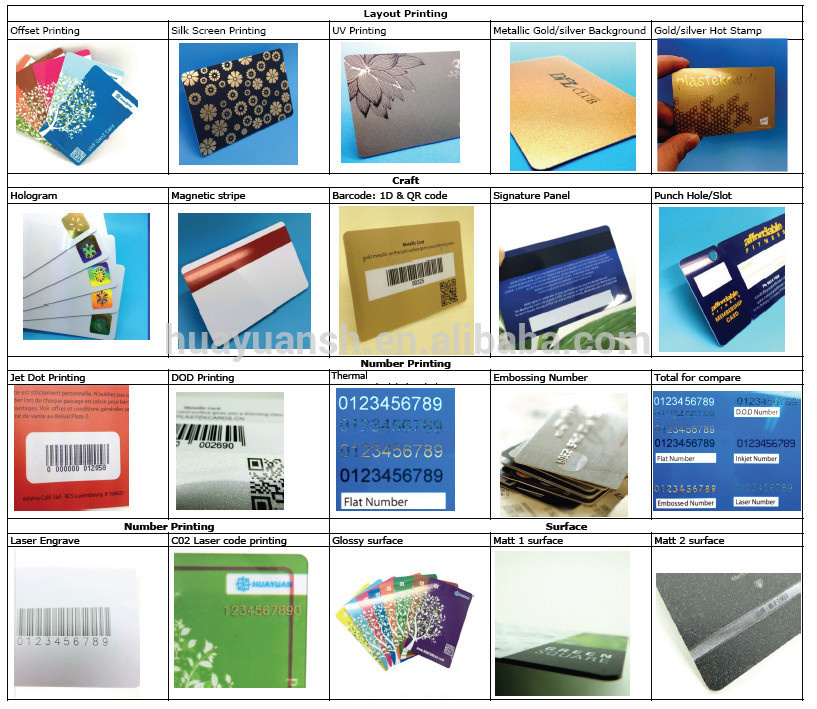

Art Craft:
BondingCopper wire bonding/Filp bonding
PrintingBoth side printable with offset printing/Silk screen printing/Individual personalization
PersonalizationLaser engrave/DOD/Thermal/Jet dot Number Printing, Encoding and Encryption operation
ApplicationCard: RF standard card, Public traffic ticket, Identifation card, Blank card
Prelam: High standard card manufactory

Applications:
 - Access control
 - Membership Loyalty System
 - Time attendance
 - Hotel locks
 - Payments
 - Transportations
 - NFC


Other NXP MIFARE® chips available:

NXP MIFARE® chips available:
MIFARE Ultralight®, MIFARE Ultraligh® C, MIFARE Ultralight® EV1,
MIFARE Classic® Mini, MIFARE Classic® 1K, MIFARE Classic® 4K, MIFARE Classic®  EV1 1K, MIFARE Classic®  EV1 4K
MIFARE® DESFire® EV1 2K, MIFARE® DESFire® EV1 4K, MIFARE® DESFire® EV1 8K
MIFARE Plus® S 2K, MIFARE Plus® S 4K, MIFARE Plus® X 2K, MIFARE Plus® X 4K, MIFARE Plus® SE 1K,



Craft option:


About Us:
1. History: HUAYUAN electronic company focus on RFID product since 1995.
2. Main Market: Oversea, rich export experience.
3. Product Range: RFID Card, RFID Wristband, RFID watch tag, RFID band, NFC Tag, NFC label and related RFID product etc.



Thank you for your visit. Awaiting for your inquiry.
Shanghai Huayuan Elelctronic Co., Ltd, is the first supplier of magnetic cards as the ticket for AFC (Automatic Fare Collection) system for Shanghai Metro No1 line.

Our products line covered plastic card, Smart cards, Contactless cards and RFID products with growing of technology and applications in this area. Our experience is not only in RFID products R & D, but also system and solution design, and system integration. Our success in oversea market was apparent - from the first client in Spain in Europe in 2005, and expanded to hundreds of clients covering up to 100 countries and regions in several years.

Genuinely in communication and business, professionally in service and technology, HUAYUAN is experts of manufacture in plastic card, contact chip cards, passive RFID, NFC, contactless cards, and various RFID /NFC products with experience in applications and solutions everywhere our products may applied.

Researching and developing especially in passive radio frequency products, HUAYUAN offered UHF/HF RFID label & tag, LF/HF/UHF wristbands, key tags, token, crystal colorful NFC tag, or on metal tags with diverse encapsulations meet whether in harsh industrial environment or a fashionable commercial environment, with our total quality management with RoHS, and CE compliant.

Our History:

1992, Huayuan Elelctronic, stand in the advancing front of magnetic stripe card and smart chip card area.

1995, Shanghai Huayuan Elelctronic Corp. Found by Mr. Tao, main business is smart card and mag. Stripe card solution and applications, for transportation E-ticket, ID smartcard for Chinese organization and residents, payment, education and industrial applications.

1997, Shanghai Huayuan start to get in to developing many management system based on technical of card and RFID, worked as software developer and system integrator in domestic market. Like tolling system, highway appurtenance management system, insurance management information system, , E- voting system for Chinese stock holder.

1996-2002, we had successfully applied in toll management system, highway appurtenance, Social insurance management system., social insurance, E-Voting system for stockholder general meeting, etc.

2003-2004, as a core partner with HP in China, researching in "smart card personalized printing solution", especially preparing for Chines 2ND generation ID (RFID card with individual digital printing ) which has just begun to issue in every Chinese residents.

2005, HUAYUAN had been selected as Chinese RFID supplier in several European big companies which famous in card manufacture and smart card business.

2007, HUAYUAN smart information technical co. Ltd is established as an international agent for card and RFID products exporting business in global market in that years...At the end of 2007, we got about 80 countries client over the world.

2008, we reorganized several manufactories, then Shenzhen Huayuan Smart Tech. Co., Ltd as a smart card and RFID production base station, meanwhile several join venture manufactory for producing tags, readers and relative products in Shanghai, Shenzhen, etc.

2011, HUAYUAN regulated our products and customers from mass production to higher quality, technique and service creative products to innovation and enhance HUAYUAN brand in this business area.

2012, HUAYUAN is preparing obtain international business certificate to directly get into global card and RFID market, and ready for involve expending our business from products manufacturer to solution for specific application in near future by widely cooperate with professional companies to accommodate new economic environment in global market.
