Zhejiang Jinling Refrigeration Engineering Co., Ltd. >> Counter Flow Square Cooling Tower JFT-2000UL

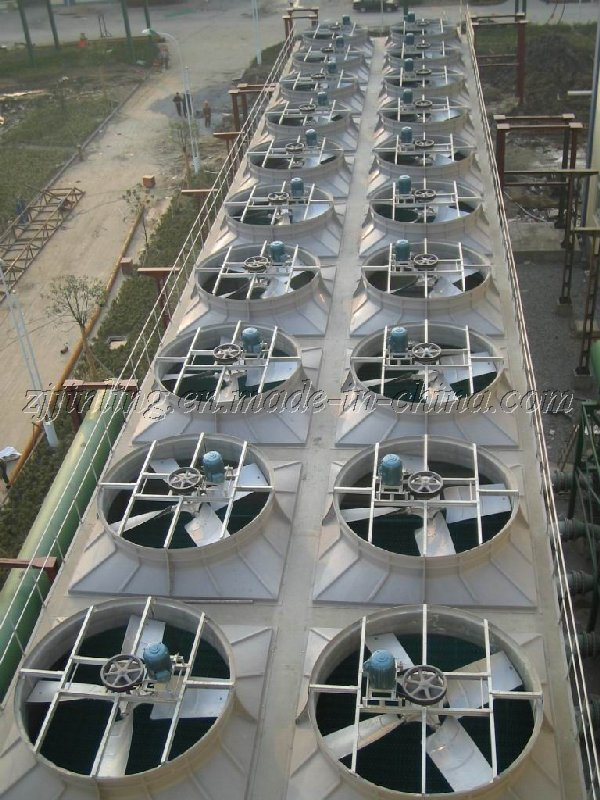

Counter Flow Square Cooling Tower JFT-2000UL

Name: Counter Flow Square Cooling Tower JFT-2000UL
Brand: china-manufacturer-directory.com
SKU: 620180492
Availability: InStock
Rating: 4.3 (58 reviews)

Supplier:	Zhejiang Jinling Refrigeration Engineering Co., Ltd.
Price:	Negotiable/Piece
Min Order:	1/Piece
Quantity::
Trade Terms:	FOB,CFR,CIF

Product Specifications

Prod Model:	JFT-2000UL
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Framework:	C.S + H.D.G
Casing And Neck:	FRP
Basin And Collection Pit:	FRP
Sprinkler System:	PVC & ABS
Fan Materical:	Al-Alloy
Motor:	Tefc.Cl.F
Filling:	PVC
Motor Supper:	C.S + H.D.G
Fan Stack:	FRP
Belt:	Composie Materical
Certification:	ISO

Product Description

JFT Series Counter Flow Square Cooling Tower JFT-2000UL

Primary Competitive Advantages:
1. Brand-name Parts
2. Guarantee/Warranty
3. Competitive Price
4. Excellent Features
5. Superior Performance
6. Prompt Delivery
7. Quality Approvals
8. Well-deserved Reputation
9. High-Class Service
10. Small Orders Accepted
11. ISO9001 Quality System Certification
12. ISO14001 Environment System Certification

Skey Specifications/Special Feature:
1. Materials: FRP panels, HDG framework and PVC infill
2. With low noise model or super low noise
3. Used all over the world

JFT Series Customer Option
1. Automatic Oilling Device
2. Independent R&D Reducer "JINLING" Brand
Delivery Details:
1. FOB Port: Ningbo or Shanghai
2. Lead Time: 45-60 days.

Performance Index for JFT Series(60UL-1000UL)Cooling Tower
Model	Water Flow M3/H	Head Load Pressure-(X10000Pa)	Overall Dimensions(MM)				Connection Pipe Dimensions(MM)					Fan		Weight(kg)
			W/L	Overall Height	Cold Basin	Tower Body	Inlet/outlent Pipe Diameter	Inlet Pipe Height	Outlet Pipe Height	Inlet Pipe	Outlet Pipe	Diateter(MM)	KWXSets	Super Low-noise Type
			W/L	Overall Height	Cold Basin	Tower Body	Inlet/outlent Pipe Diameter	Inlet Pipe Height	Outlet Pipe Height	Inlet Pipe	Outlet Pipe	Diateter(MM)	KWXSets	Dry	Wet
JFT-60UL	60	4.2	2000	4680	630	3280	100	2780	200	1200	450	1500	2.2	880	1830
JFT-80UL	80	4.2	2400	5030	630	3430	125	2680	200	1400	450	1800	3	1050	2300
JFT-100UL	100	4.5	2400	5030	630	3430	125	2930	200	1400	450	1800	4	1150	2400
JFT-125UL	125	4.5	2800	5030	630	3430	150	2930	200	1700	550	2000	4	1570	3170
JFT-150UL	150	4.5	2800	5030	630	3430	150	2930	200	1700	550	2000	5.5	1720	3320
JFT-175UL	175	4.6	3240	5130	630	3530	200	3030	200	1920	550	2000	5.5	1970	4120
JFT-200UL	200	4.6	3240	5330	630	3530	200	3030	200	1920	550	2400	7.5	2250	4400
JFT-225UL	225	4.6	3600	5330	630	3530	200	3030	200	2100	550	2400	7.5	2600	5300
JFT-250UL	250	4.6	3600	5530	630	3530	200	3030	200	2100	550	3000	7.5	2900	5600
JFT-300UL	300	4.9	4200	6000	900	4000	250	3350	300	2400	700	3000	11	3350	7200
JFT-350UL	350	5.1	4200	6200	900	4200	250	3600	300	2400	700	3000	11	3650	7500
JFT-400UL	400	5.2	5040	6500	900	4400	250	3550	300	2820	700	3400	15	4500	9600
JFT-450UL	450	5.4	5040	6500	900	4400	300	3800	300	2820	700	3400	15	4900	10000
JFT-500UL	500	5.2	6000	6500	900	4400	300	3550	300	3300	700	3400	15	5500	12300
JFT-600UL	600	5.6	6000	6800	900	4600	300	4000	300	3300	700	3700	18.5	6000	12800
JFT-700UL	700	5.4	7050	6800	900	4600	350	3750	300	3825	700	3700	22	7000	15900
JFT-800UL	800	5.6	7050	6900	900	4600	350	4000	300	3825	700	4000	22	7750	16650
JFT-1000UL	1000	5.9	7800	7100	900	4800	400	4200	300	4200	700	4200	30	9400	20700
Design Conditions:Water Inlet Temp.-T1=37ºC,Water Out Temp.-T2=32ºC-WBT=28ºC, Dry WBT=31.5ºC,RangeΔTS=5ºC Barometric-P=99400Pa.
Remark:The cooling tower can be made-to-measure according to customer`s design conditions and special requirements.
Explanation Model :JN:Cross Flow Rectangular Cooling Tower; L:Low Noise Type ;UL:Super Low Noise Type

Since founded in 1983, Jinling Coolin Tower & Refrigeration Equipment has been providing the resolution and products with the most reliable quality and lowest cost for customers. Now Jinling coolin tower has become the market leader and been appraised as an enterprise with"AAA"grade outstanding credit for ten years.

With more than 20 years experiences in refrigeration equipment for cooling tower production, Jinling cooling tower has become a modern enterprise for cooling tower and refrigeration equipment specializing in research, manufacture, marketing and service. Jinling is awarded as high-tech enterprise in Zhejiang province, also becoming a leading researching center for cooling tower and refrigeration equipment in Zhejiang

JINLING 08A. PPS

Jinling cooling towers are honored for the high-level products development, well-trained staff, high-efficient organization, high-quality support system, good after-sale service and perfect service network. In 1997, Jinling passed ISO9001. In 2004, Jinling got ISO14001 environment system certificated. In 2005, Jinling passed CTI test and became one of the 14 CTI certified manufacturers around the world. Jinling JNC series cross flow closed type cooling tower successfully passed CTI test on 19TH, Sep. 2008, becoming the first one in China (the 5th manufacturers in the world) who has CTI certificate for closed type cooling tower.

With the design, manufacture and installation for more than 1000 projects in industrial and air-conditioning fields, and cooperation with the University of Shanghai for Science and Technology(USST), Jinling now has developed JLT series round counter flow, JFT series rectangular counter flow, and JNT series rectangular cross flow cooling tower which are high-leveled in China. Jinling has also expanded its manufacture and sales fields to many other fields, including closed cooling tower and air-conditioning equipments for industrial and special utilit.
