| Supplier: | Hebei Zhengshun Environmental Protection Equipment Co., Ltd. |
|---|---|
| Price: | US $ 1000/Piece |
| Min Order: | 1/Piece |
| Quantity:: | |
| Trade Terms: | FOB,CFR,CIF |
|
|
| Prod Model: | ZS-78 |
|---|---|
| Markets: | North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Space Saving And Electricity Saving: | Low Noise,Good Corrosion Resistance |
| Engineers Available To Service Machinery: | Competitive Price |
| Can Produce According To Buyers' Drawing: | Fast Delivery |
| Easy To Install: | Easy Installation,Adjustment |
| Cooling Method: | Counter Flow |
| Material: | FRP |
| Certification: | CCC |

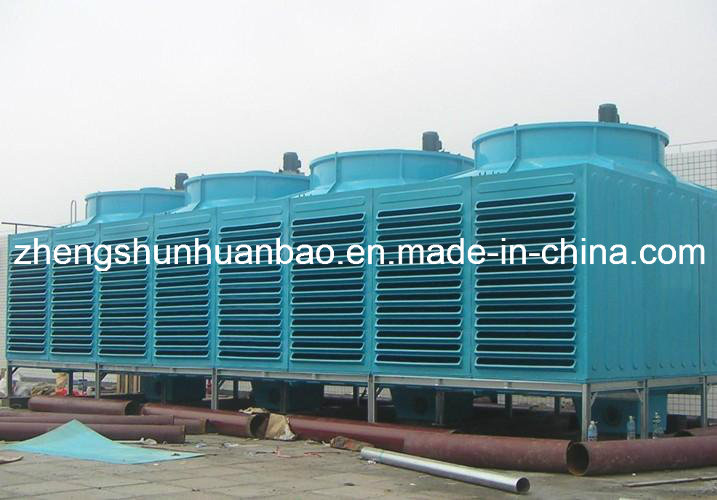

FRP square counter flow Cooling Tower
I .Features
1.All parts and materials are rigidly checked and tested to make sure their service life and operation.
2.Unique improved mechanized technology reduces the dead weight of the tower, making the BHD series endowed with advantages of small in size, light in weight, high efficient, long service life and stable operation.
3.Frequency inverter can automatically regulate the fan speed along with the change of water temperature,which can save energy, lower noise and operation cost.

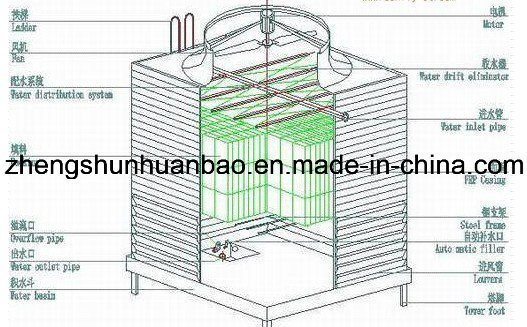

II. Main parts
1. Motor
Totally enclosed motor has the characteristic of high-efficient, low noise, long service life and high reliability.
2.Belt and speed reducer
The belt is imported V shaped belt. The speed reducer cabinet is totally enclosed, it is proved to have stable operation, low noise and fine corrosion resistance and water-proof performance.
3. Fan
Electrochemical protection surface has gone through balance test. It has the characteristic of large air volume, high efficiency, low noise and corrosion resistance ability.
4. Air duct
It is made of high quality FRP compound material.The smooth surface reduce the air resistance effectively.
5. Panels and water collecting tank
Both are made of high quality FRP compound material. The surface is imported UV resistance gel coat, durable and strong.
6. Filling
PVC material filling is hydrophilic and corrosion resistant. It also has a larger heat rejection area, lower air resistance, and higher cooling capacity.
7. Frame
It is made of high-strength steel. The surface has gone through preservative treatment, corrosion resistance, light and easy to assemble.
III.BND series counter flow cooling tower specification and technical data
Model | Water flow (m3/h) | Cooling capacity (x1000kcal/h) | Motor power (kw) | Fan diameter (mm) |
BND-100 | 90 | 450 | 2.2 | 1468 |
BND-125 | 100 | 500 | 3 | 1768 |
BND-150 | 125 | 625 | 4 | 1768 |
BND-175 | 150 | 750 | 5.5 | 2360 |
BND-200 | 200 | 1000 | 5.5 | 2560 |
BND-225 | 225 | 1125 | 7.5 | 2560 |
BND-250 | 250 | 1250 | 7.5 | 2954 |
BND-300 | 300 | 1500 | 11 | 2954 |
BND-330 | 330 | 1650 | 11 | 3340 |
BND-370 | 370 | 1850 | 11 | 3340 |
BND-400 | 400 | 2000 | 11 | 3340 |
BND-450 | 450 | 2250 | 15 | 3744 |
BND-500 | 500 | 500 | 2500 | 15 |
BND-600 | 600 | 3000 | 18.5 | 4140 |
BND-700 | 700 | 3500 | 18.5 | 4140 |
BND-800 | 800 | 4000 | 22 | 4140 |
BND-900 | 900 | 45000 | 30 | 4830 |
Note:
The cooling capacity is tested under the condition of entering temp 37°C,leaving temp 32°C,wet bulb temp 28°C,atmosphere pressure 99.4kpa.
IV.Technical data needed for choosing model and quotation
You should provide the following technical data for quotation:the entering temp,leaving temp,air flow and wet bulb temp.
We provide good quality service for our clients. If you need sample for testing or showing to your clients,we can deliver the sample by international express.You should pay the sample and express cost.
We can also design the product according to your specific requirement.
We can provide you installation guide.If parts are damaged in the quality insurance period because of our quality,we can change the damaged parts free of charge.
Shandong GRAD Group Co., Ltd. is located in Dezhou city, Shandong Province,covering an area of 450,00 square meters. It is a large modern enterprise group with central air-conditioning, ventilation, FRP products research development, design, production, sales, installation and maintenance.It is the backbone enterprise of "Dezhou Central air-conditioned city" named by China Refrigeration and Air Conditioning Industry Association(CRAA).
GRAD Group products include: central air conditioning series products(chillers, air conditioners, fan coils, cooling towers, ventilators and accessory products), FRP series products (FRP winding pipes and storage tanks), SMC moulding products (water tanks, table tennis boards, basketball boards, manhole covers, etc) . All products have been inspected by the national quality inspection department.
1. Product warranty: Usually, our product warranty is 18 months after leaving factory or 12 months after installation.
2. Delivery time: It will depend on the product quantity. Our products are sold according to order.
3. Installation: If the project needs our installation guidance, we can send our engineer and translator. The expenses shall be borne by the project owner.
