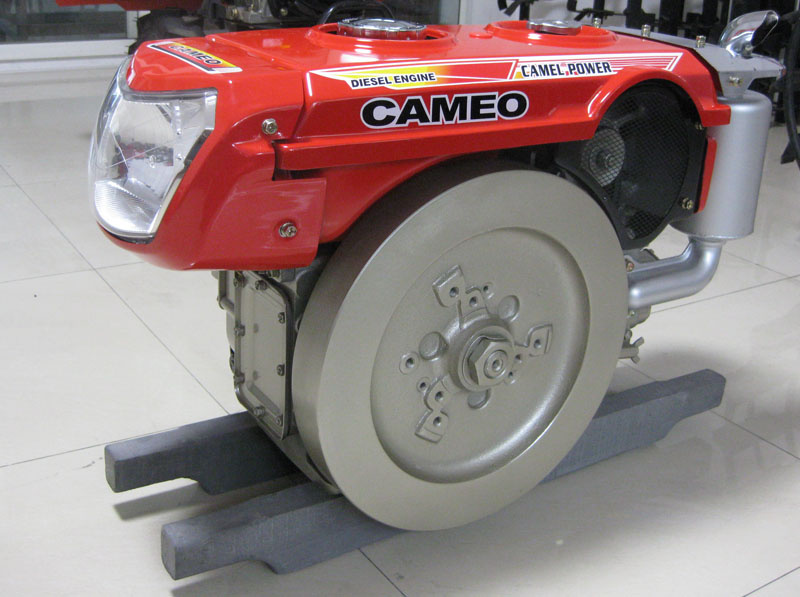

CPD120-2 Diesel Engine

Name: CPD120-2 Diesel Engine
Brand: China-Manufacturer-Directory.com
SKU: 694711475
Availability: InStock
Rating: 4.7 (115 reviews)

Supplier:	Chongqing Camel Power Machinery Co., Ltd.
Price:	Negotiable
Min Order:	1/Piece
Quantity::
Trade Terms:	FOB

Product Specifications

Prod Model:	CPD120-2
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe

Product Description

1. Power: 9.5-14HP;
2. Brand: CAMEO;
3. Minimum order: 1 PCS;
4. One 20ft container: 106 PCS;
5. KUBOTA diesel engine copy, the spare parts are interchangeable;
6. Compact in structure, nice in appearance, lighter in weight.
7. Lower noise, lower fuel consumption, and higher output.
8. Low vibration, smooth running, reliable performance.
9. Easy to start, easy maintence.
10. Use: Tractor, water pump, generator

MODEL	CP95	CP110	CP120	CPD110	CPD120	CPD125	CPD140
Type	Water-cooled, 4-stroke, horizontal, diesel engine
Bore x stroke (mm)	86 x 90	92 x 90	94 x 90	92 x 90	94 x 90	94 x 96	97 x96
Displacement(cc)	522	598	624	598	624	666	709
Compression ratio	21: 1			18: 1
Combustion chamber type	swirl-chamber			Direct Injection
Rated output hp(kW)	8.5(6.25)	10(7.35)	11(8.09)	10(7.35)	11(8.1)	11(8.1)	13(9.55)
Max output hp(kW)	9.5(6.99)	11(8.09)	12(8.8)	11.4(8.4)	12.5(9.19)	12.5(9.19)	14(10.3)
Rated speed ( rpm )	2400
Max torque (N. m)	29.4(3.0)	34.5(3.5)	38.2(3.9)	35(3.6)	38.8(3.95)
Speed at max. torque ( rpm )	1850
Fuel consumption at rated output g/kWh( g/hph )	286 ( 210 )			250 ( 184 )
Fuel tank capacity (L)	10
Lubrication method	Pressure combined with splashing
Cooling system	Radiator type
Fuel tank capacity (L)	10
Crankcase oil capacity (L)	2.3
Cooling water capacity (L)	2.1
Starting method	Hand starting or electric starting
Head lamp	12V 45W/45W
N. W/G. N(kg)	105/110	110/115	110/117	110/115	112/117	115/120	120/125
Packing dimension(LWH)	Carton 830380645 (106units/20GP, 210units/40QP)

Chongqing Camel Power Machinery Co., Ltd. (CCPMC) is a manufacturer of agricultural machinery and an export base in Chongqing. Our company specializes in producing high quality, medium and small power diesel engines, walking tractors, generators and water pump sets. Our well-know brand "CAMEO" gained the honor of "Best Export Brands of Chongqing for Priority Cultivation and Development in 2006-2007" from Chongqing Municipal Government.

Under the management of MBA degree members, national grade internal combustion engine experts and with the support of advanced production and inspection methods as well as a perfect product development and quality guarantee system, CCPMC passed ISO9001: 2000 certification and the test of Thai Industrial Standard from Thai Industrial Standards Institute and Ministry of Industry of Thailand. Our sound worldwide marketing and satisfactory after-sales service network makes our products more and more popular. Now our annual production capacity of high and medium grade diesel engines, diesel water pumps, and diesel generators reaches100, 000 sets.

CCPMC insists on the theory that "quality is eternal object; Perfect product based on conscientious hard work". With exclusive technology and years' manufacture experience, CCPMC hopes to cooperate with friends both at home and abroad for mutual benefit.
