Product Specifications
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Application: |
Rock Gold Ore |
| Certification: |
CE; SGS; ISO9001:2000 |
| Weight: |
1300kg(Excluding Motor) |
| Power: |
18.5kw |
| Capacity(T/H): |
8-12 |
| Dimension(L*W*H): |
1059*1000*1135mm |
| Max Feeding Size: |
100mm |
| Discharge Size: |
Less Than 15mm |
| Sample Test: |
Available |
| After Sale Service: |
Lifelong |
| Crushing Style: |
Extruding and Milling |
| Type: |
Hammer Crusher |

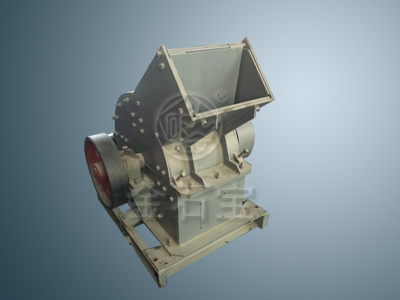

Product Description
Hammer crusher is primary crushing equipment which could crush the materials from 600-1800mm to 20mm or smaller in once. It is applied to cement, chemicals, electric power, metallurgy and so on industries middle hardness materials such as limestone, slag, carbon coke, coal and so on materials middling and fine crushing.
This series hammer crusher is small volume, light, simple structure, easy operation and maintenance, high crushing ratio, low over-crushing ratio, average final product particle size, high capacity and so on characters. It is applied to crush brittleness, middle hardness, strength of pressure-resistant is 150MPa each kinds of materials. The hammer crusher feature hammer head adopt new craftsmanship casting, wear-resistant and impact-resistant.
Hammer crusher's features
1). Hammer head, casting with new craftsmanship, wear-resistant and impact-resistant.
2). Adjustable of required particle size as customer requirement
3). Body of machine structure is covered, which solved problem of powder pollution and body ash leaking in crushing plant.
4). Beautiful appearance, compact structure, few consumable part, convenient maintenance and so on advantages.
Hammer crusher working principle
Hammer crusher is crushing equipment utilize impact energy to crush materials. When the chine works, with the driving of motor, rotator rotate fast, materials enter the hammer area, hit with the hammer board, then it will throw to impact device for further crushing, and later whipped back to the hammer area to repeat crushing, repeat this procedure, the material from big size to small size enter 1, 2 and 3 impact mouth repeat crushing until its reach your required particle size and discharge from output opening. To adjust the spacing between impact frame and rotor can change the discharging size and shape of the materials.
Remarks: PC-400× 170 is Batch production; 1 unit only is not acceptable
|
Name |
Max. feeding size |
discharge size |
capacity |
Rotor diameter |
Rotor speed |
Rotor length |
power |
overall dimension |
Weight
(excluding motor) |
|
mm |
mm |
M 3 /h |
mm |
r/min |
mm |
kw |
mm |
kg |
|
PC-400× 170 |
50 |
< 3 |
1.5 |
400 |
170 |
2000 |
7.5 |
1095× 545× 803 |
220 |
|
PC-600× 400 |
100 |
< 15 |
8-12 |
600 |
400 |
970 |
18.5 |
1059× 1000× 1135 |
1300 |
|
PC-800× 600 |
200 |
< 13 |
12-15 |
800 |
600 |
970 |
52 |
1515× 2586× 1040 |
2450 |
Jinshibao Corporation of manufacturing mining machines of Jiangxi Province, who is lying at foot of the beautiful Wu Yi Mountains and on the bank of abundant QinJiang River, was founded in 2001. Previously, it is called "mining machinery factory of ShiChen of Jiang Xi Province, "It covers more than 8000 square meters, and serve mining machines\developing mil running equipments, processing and selling as its main businesses.
Our corporation is holding on to the founding idea that credit stands first, living up to the service principle to satisfy the clients, and the managing idea that "Quality Stands first, Clients are the Gods". From 1995 on, all kinds of mining machines produced by our corporation recognized by the Supervising Bureau of Quality and Technique of Jiang Xi province recognized by the Supervising Bureau of Quality and Technique of Jiang Xi province continuously as "Qualified Products in the Province". Moreover, we are awarded as one of the famous enterprises in the Province and honorable titles of "making much of contract and keeping promises" "reliable quality" "excellent services after sale, " we also get government's-relevant departments' supports and prizes constantly. Our selling places cover all over the country, far more to South Korea\Vietnam\Burma\Russia and countries in Africa. And we are providing considerate services to thousands of clients and winning prestige in the world market.
Up to now, we have deeply realized it is the international standards the "Quality Managing System of ISO9002"follows to manage the enterprises orderly and effectively, to improve the quality, lower cost, perfect the guaranteeing system of quality, and then to advance the comprehensive quality of corporation, increase profits and the ability to compete. Our corporation will normalize our work according to the standards of "ISO9002"all the time, and try our best to put our managing idea of "quality stands first and clients are the Gods" into practice thoroughly, and requite the society and clients by using the best products. We are heartily welcoming new and regular clients to come here to give us some suggestions and trade.
