Shenzhen Kingbolai Industrial Co., Ltd. >> Cr2025 Lithium Manganese Dioxide Button Cell (CR2025)

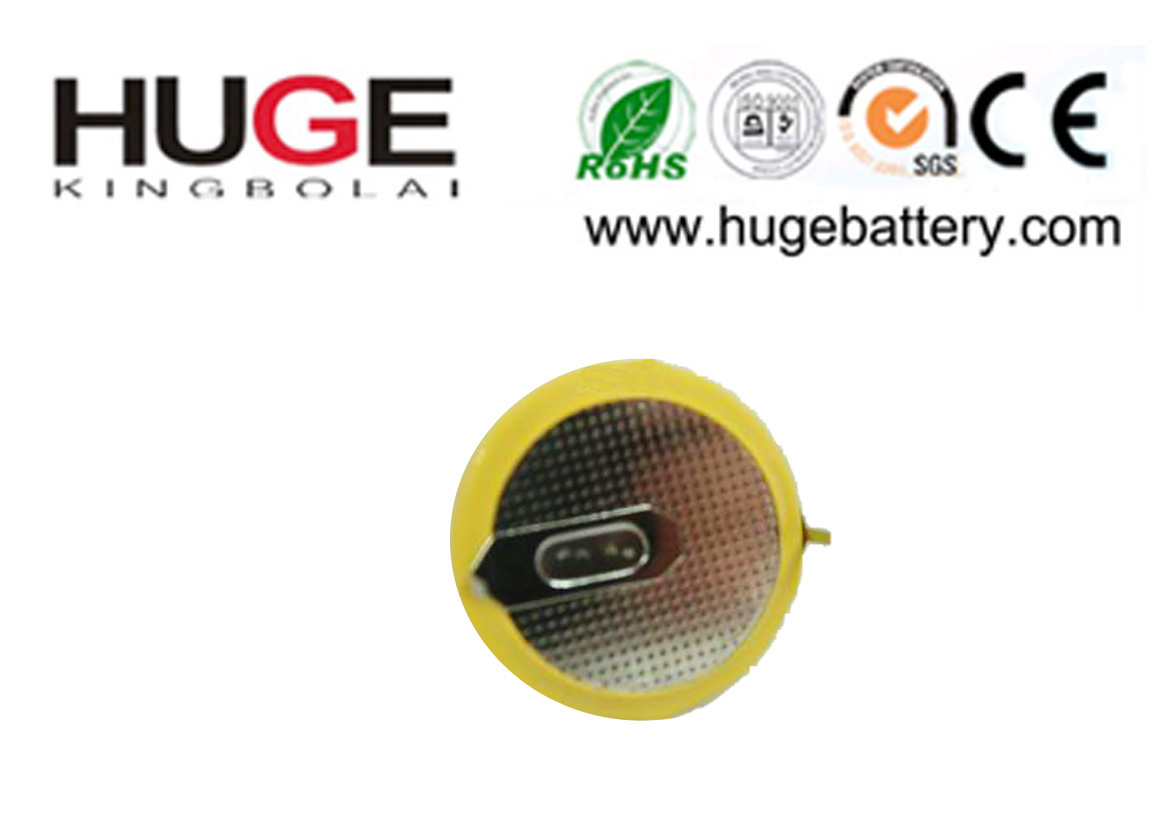

Cr2025 Lithium Manganese Dioxide Button Cell (CR2025)

Name: Cr2025 Lithium Manganese Dioxide Button Cell (CR2025)
Brand: china-manufacturer-directory.com
SKU: 741056855
Availability: InStock
Rating: 4.5 (41 reviews)

Supplier:	Shenzhen Kingbolai Industrial Co., Ltd.
Price:	Negotiable/Piece
Min Order:	5000/Piece
Quantity::
Trade Terms:	FOB,EXW,CIF

Product Specifications

Prod Model:	CR2025
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Factory:	Guangdong

Product Description

Pecifications
Compact and lightweight; Extremely high energy density per unit weight. Have highter volt and stable power supply quality.

1, Compact and lightweight; Exetremely high energy density per unit weight
2, Have highter volt and stable power supply quality
3, Extremely small self-discharge for long service and shelf life
4, A wide compact operational temperature range of -20° C to 60° C
5, It has wide range of applications, optimum for Memory and TRC Backup

Model No.	Nominal Voltage	Nominal Capacity	Current			Max Dimensions(mm)	Weight
			Standard Current	Continuous Current	Pulse Current	Diameter * Thickness	Weight
CR1025	3V	30mAh	0.1mA	1.0mA	5mA	10.0mm*2.5mm	0.6g
CR1216	3V	25mAh	0.1mA	1.0mA	5mA	12.5mm*1.6mm	0.7g
CR1220	3V	38mAh	0.1mA	1.0mA	5mA	12.5mm*2.0mm	0.8g
CR1225	3V	50mAh	0.1mA	1.0mA	5mA	12.5mm*2.5mm	0.9g
CR1616	3V	50mAh	0.1mA	1.0mA	10mA	16.0mm*1.6mm	1.1g
CR1620	3V	70mAh	0.1mA	1.0mA	10mA	16.0mm*2.0mm	1.2g
CR1632	3V	120mAh	0.1mA	1.0mA	15mA	16.0mm*3.2mm	1.8g
CR2016	3V	75mAh	0.1mA	1.0mA	15mA	20.0mm*1.6mm	1.7g
CR2025	3V	150mAh	0.2mA	2.0mA	20mA	20.0mm*2.5mm	2.5g
CR2032	3V	220mAh	0.2mA	2.0mA	20mA	20.0mm*3.2mm	3.0g
CR2320	3V	130mAh	0.2mA	2.0mA	20mA	23.0mm*2.0mm	2.7g
CR2325	3V	190mAh	0.2mA	2.0mA	20mA	23.0mm*2.5mm	3.2g
CR2330	3V	260mAh	0.2mA	2.0mA	20mA	23.0mm*3.0mm	3.7g
CR2335	3V	300mAh	0.2mA	3.0mA	20mA	23.0mm*3.5mm	4.2g
CR2354	3V	530mAh	0.2mA	3.0mA	20mA	23.0mm*5.4mm	6.3g
CR2430	3V	270mAh	0.2mA	3.0mA	20mA	24.5mm*3.0mm	4.3g
CR2450	3V	600mAh	0.4mA	3.0mA	20mA	24.5mm*5.0mm	5.8g
CR2477	3V	950mAh	0.4mA	3.0mA	20mA	24.5mm*7.7mm	9.9g
CR3032	3V	550mAh	0.4mA	3.0mA	20mA	30.0mm*3.2mm	6.8g

Your best partner and friend, Kingbolai Battery Industrial Co., Ltd., established in 1993, is a professional battery manufacturer and exporter with 15 years' experience! Our factory with an area of over 3, 500 square meters and over 800 staff, including over 120 advanced R&D engineers.

Our company has introduced several advanced fully automatic battery production lines, including the FUJI production lines from Japan and the Hibar production lines from Canada, and the annual output is about 550 million pieces. Our factory is supported by advanced equipment, scientific management system, and 100% inspection quality control. Our battery products execute IEC60086 series standards. You can enjoy our quality guarantee.

In addition to dedication to specialization in battery quality, we further pursue better service and prices offered to customers. We can satisfy customers' requirements in product design, packaging and technical issue with our strong R&D capacity and experience in developing OEM services.

We sincerely welcome your visiting and valued suggestion to us. Any questions from you, our experienced salesperson will reply you within 12 hours.
