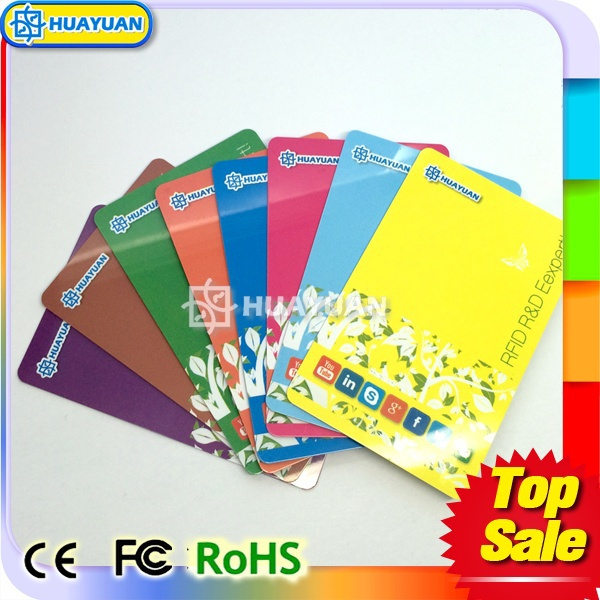

Cr80 Smart Contactless Nxp MIFARE DESFire EV1 2K/4K Chip Card
Product Specifications
Prod Model: |
MIFARE DESFire EV1 2K/4K |
Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Chips: |
MIFARE DESFire EV1 2K/4K |
Protocol: |
ISO14443, ISO15693 etc |
Thinckness: |
0.84mm etc |
Size: |
Cr80 or Customerize |
Option: |
Numbering, Encoding, etc |
Housing: |
Lamination |
Hf: |
MIFARE DESFire EV1 2K/4K |
Card Surface: |
Matte/Gloss Finish |
Delievery Time: |
7 to 12 Days |
Samples: |
Free Samples Are Available |
Function: |
Transportation |
Frequency: |
High Frequency |
Material: |
PVC, Pet, ABS, Paper etc |
Application Field: |
Market, Transportation, Telecom etc |
Product Description
MIFARE® DESFire® is more closely to CPU chip performance with high security.
Applications for banking and payment system, also used in access control system for some departments which requires high security level
MIFARE® DESFire® EV1 2K smart card is ideal for solution developers and providers wanting to combine and support multiple applications on one smart card. It fully complies with the requirements for fast and secure data transmission, flexible memory organization and interoperability with existing infrastructure.
Contactless Smart 13.56MHz casheless payment MIFARE® DESFire® EV1 prepaid Card
Item | MIFARE® DESFire® EV1 contactless card |
Feature | High security Identification |
Chip | MIFARE® DESFire® EV1 2K 4K 8K from NXP |
Frequency | ISO14443 13.56mhz high frequency |
Suitable for | Cashless payment,Prepaid card identification etc |
Printing | CMYK full color 4 C printing |
Art Craft (Printing) | - Logo/Graphics/Photo - Serial Number - DOD Number - Barcode printing - Overlay Foil - Signature Panel - Name Personalisation - Photo Personalisation |
Application | - Advanced public transportation - Access management - E-Government incl. social services - Identity |
Description :
- Fully ISO / IEC 14443 A 1-4 compliant
- 2 Kbytes, 4 Kbytes and 8 Kbytes EEPROM with fast programming
- Secure, high speed command set
- High data rates according to ISO / IEC 14443-4: 848 Kbit/s
- Flexible file structure
- Choice of open DES/3DES/3KDES/AES crypto algorithm in hardware
- Anti-collision
- Unique 7-byte serial number (ISO cascade level 2)
- Data integrity: CRC and bit counting on physical layer
- Available in MOA4 modules or 8" sawn bumped wafer
MIFARE® DESFire® EV1 2K Samrt Card Key Features:
- Card dimensions: 86 x 54mm
- Thickness: 0.84mm
- Material: PVC, PET
- Surface: lamination (gloss/mate)
- Chip: MIFARE® DESFire® EV1 2K (NXP original)
- Frequency: 13.56MHz
- RF Protocol: ISO14443A
- Data storage time: minimum 10 years
- Operating temperature: -20 to +60°C
- Stockage temperature: -20 to +65°C
- Package: 200pcs per Inner Box; 5000pcs per Carton, each Carton gross weight is 35kgs
Applications:
- Advanced public transportation
- Access management
- E-Government incl. social services
- Identity
Read More about MIFARE® DESFire® EV1 2K for this link : http://www.huayuansh.com/new_202.html
OPTIONAL PRODUCE
Printing:
- Logo/Graphics/Photo
- Serial Number
- DOD Number
- Barcode printing
- Overlay Foil
- Signature Panel
- Name Personalisation
- Photo Personalisation
Magstripe:
- LoCo300
- HiCo2750
- Magstripe Encoding
Various:
- Hologram
- Security Printing
- Chip Encoding
CHIP AVALIBLE
MIFARE® DESFire® EV1 2K (NXP original)
MIFARE® DESFire® EV1 4K (NXP original)
MIFARE® DESFire® EV1 8K (NXP original)
Shanghai Huayuan Elelctronic Co., Ltd, is the first supplier of magnetic cards as the ticket for AFC (Automatic Fare Collection) system for Shanghai Metro No1 line.
Our products line covered plastic card, Smart cards, Contactless cards and RFID products with growing of technology and applications in this area. Our experience is not only in RFID products R & D, but also system and solution design, and system integration. Our success in oversea market was apparent - from the first client in Spain in Europe in 2005, and expanded to hundreds of clients covering up to 100 countries and regions in several years.
Genuinely in communication and business, professionally in service and technology, HUAYUAN is experts of manufacture in plastic card, contact chip cards, passive RFID, NFC, contactless cards, and various RFID /NFC products with experience in applications and solutions everywhere our products may applied.
Researching and developing especially in passive radio frequency products, HUAYUAN offered UHF/HF RFID label & tag, LF/HF/UHF wristbands, key tags, token, crystal colorful NFC tag, or on metal tags with diverse encapsulations meet whether in harsh industrial environment or a fashionable commercial environment, with our total quality management with RoHS, and CE compliant.
Our History:
1992, Huayuan Elelctronic, stand in the advancing front of magnetic stripe card and smart chip card area.
1995, Shanghai Huayuan Elelctronic Corp. Found by Mr. Tao, main business is smart card and mag. Stripe card solution and applications, for transportation E-ticket, ID smartcard for Chinese organization and residents, payment, education and industrial applications.
1997, Shanghai Huayuan start to get in to developing many management system based on technical of card and RFID, worked as software developer and system integrator in domestic market. Like tolling system, highway appurtenance management system, insurance management information system, , E- voting system for Chinese stock holder.
1996-2002, we had successfully applied in toll management system, highway appurtenance, Social insurance management system., social insurance, E-Voting system for stockholder general meeting, etc.
2003-2004, as a core partner with HP in China, researching in "smart card personalized printing solution", especially preparing for Chines 2ND generation ID (RFID card with individual digital printing ) which has just begun to issue in every Chinese residents.
2005, HUAYUAN had been selected as Chinese RFID supplier in several European big companies which famous in card manufacture and smart card business.
2007, HUAYUAN smart information technical co. Ltd is established as an international agent for card and RFID products exporting business in global market in that years...At the end of 2007, we got about 80 countries client over the world.
2008, we reorganized several manufactories, then Shenzhen Huayuan Smart Tech. Co., Ltd as a smart card and RFID production base station, meanwhile several join venture manufactory for producing tags, readers and relative products in Shanghai, Shenzhen, etc.
2011, HUAYUAN regulated our products and customers from mass production to higher quality, technique and service creative products to innovation and enhance HUAYUAN brand in this business area.
2012, HUAYUAN is preparing obtain international business certificate to directly get into global card and RFID market, and ready for involve expending our business from products manufacturer to solution for specific application in near future by widely cooperate with professional companies to accommodate new economic environment in global market.
