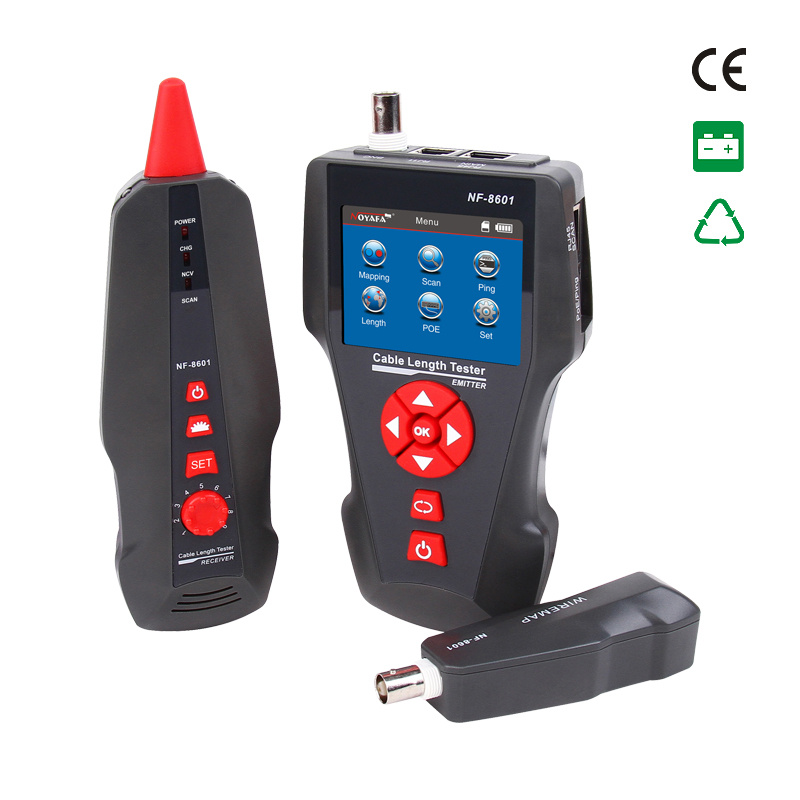

Main functions :
1. Check the PING , POE and cross-talk functions for Network cable.
2. Hunt the target cable from a bundle of cables , such as RJ11 / RJ45 / BNC.
3. Under the situation of connecting Ethernet switches / router to find target cable.
4. Locate the short circuit location for 2 cores cable.
5. Test the RJ11 , RJ45 , BNC cable length under open circuit.
6.wiremap the short,open,cross,reverse circuit for RJ11/RJ45/BNC cables.
Application:
1. 3.7V lithium battery power supply ,Convenient, durable, and durable.
2. 2.8 inches LCD Color screen ,Clear, intuitive and personalization.
3.Main tester can save export 160 groups of data.
| Technical indexes: |
|
|
|
|
| NF-8601A Transmitter specifications |
|
|
|
| Indictor |
| LCD 320x240 mm, with back light |
| Cable test types |
| STP/UTP 5E,6E network , telephone , coacial |
| Max. distance of wiremap |
| 2000 m |
|
|
| Max. distance of hunting for RJ11 |
| 1000m |
|
|
| Max. distance of hunting for RJ45 |
| 1000m |
|
|
| Max. distance of hunting for BNC |
| 1000m |
|
|
| Compatible connectors |
| RJ11,RJ45,Coacial, PING/POE,BNC |
| Cable map indication |
| LCD (#1-#8) |
|
|
| Battery Type |
| 3.7V lithium battery 1800mAh |
| Work temperature / humidity |
| 10ºC ~ -60ºC / 0ºC~70ºC |
|
| Dimension(LxWxD) |
| 173x92x34mm |
|
| NF-8601A Remote unit specifications |
|
|
|
| Compatible connectors |
| RJ11,RJ45, BNC |
|
| Dimension(LxWxD) |
| 106x32x30mm |
|
Attention:
1.Don't connected high voltage lines to avoid buring out the machine.
2.Put into the right place to avoid hurting others,because our item with sharp part.
3.Connected the cable to the right port.
4.Read the user manual before use it.
Accessories Included:
1.charger x 1 set
2.battery x 1 set
3.adapted telephone line x 1 set
4.adapted network cable x 1 set
5.Cable clips x 1 set
6.USB charger wire x 1 set
7.toolkit x1 set
