1). CE & RoHS certificate
2). Rechargeable lithium battery
3). Runtime: 10hrs
4). 100, 000hrs service life time
5). 1 worklight + 2 signal lights (any two of red, yellow, green light can be chose as signal)
Application:
It is ideal for use as mobile lighting for railway, metallurgy, electric power site, shipping port, military, police, patrol and inspection. It allows long runtime as work lighting as well as emergency illumination
Characteristics of Performance:

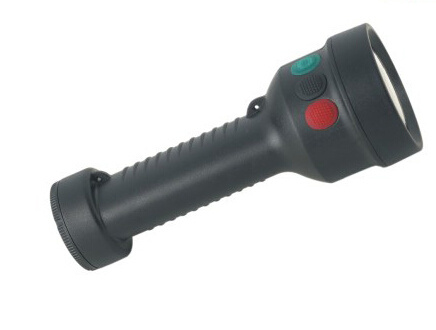

1. It uses CREE LED light source, with 100, 000hours service life. The reflector adopts hi-tech surface finishing technology, make sure a high light reflectivity. The effective beam range can exceed 100 meters. Any two of the red, yellow, green light can be chosen as signal light. Its colored signal light's beam distance can reach 5000meters.
2. It is sealed to IP65 preventing the ingress of water; The housing is made of PC material, drop resistant to 1 meter. It can withstand high and low temperature suitable to be used in all kinds of harsh environment.
3. The rear light on its tail is ideal as a personal indicator to identify the position of the users. It eliminates the danger and ensure the user's safety in the dark.
4. Use of the latest large bulk capacity lithium-iron battery with long service life improves reliability and eliminates ' memory ' affect.
5. Easy to carry.
| Specification | unit | ZW7600 |
| Rated voltage | V | 3. 7 |
| Rated capacity | mAh | 2800 |
| current | White Work light | mA | 380 |
| Signal light | 120 |
| Real light on the tail | 20 |
| Light Output | lm | 170 |
| Runtime | white work light | h | ≥10 |
| signal LIGHT | h | >30 |
| recharging time | h | 12 |
| Service Life | h | 100,000 |
| Battery Recharge Cycle |
| ≈1000 |
| Dimension | External diameter | mm | Φ66 |
| length | 172 |
| Net weight | g | 265 |
Q:What certification do you have for your LED Explosion proof lights?
A:We have ATEX, CE,EMC,LVD,RoHS, China Explosion proof approval for all of our LED explosion proof lights.
Q:What places do your explosion proof lights applicable to?
A:It is ideal to be used as floodlight or spotlight at the oilfield,metallurgy,refinery,gas station,oil rig,petroleum,petrochemistry
and anywhere a highly durable and efficient light source is needed that can withstand exposure to high stress environments.
Q:Can you introduce briefly for your LED Explosion proof lights? Are they unique, different from other suppliers'?
A: Tormin's LED explosion proof lights are designed and patented independently by Zhejiang Tormin electrical Co.,Ltd.
We ensure quality by using Bridgelux LED chip, aluminium housing and tempered glass. We ensure safety by strict testing and inspection.
Q:Is it changed the colour of housing as require?
A:It can be made into other colour like Gray.
