Product Specifications
| Prod Model: |
LT-SM901B |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Sphere Diameter: |
0.25m 0.5m 1m 1.5m 2m 2.5m 3m |
Product Description
LT-SM901B RA CRI led lumen meter device testing instrument
Specification
1.Powerful function(CRI,CIE)
2.Valuable accessories
3. High precision
4. 2 years warranty for free replacement
1. Parameter: Spectral power distribution
Chromaticity coordinates
CCT, CRI, Lumen, Power
Power factor, Luminous Flux
Meet the requirement of ICE Standard

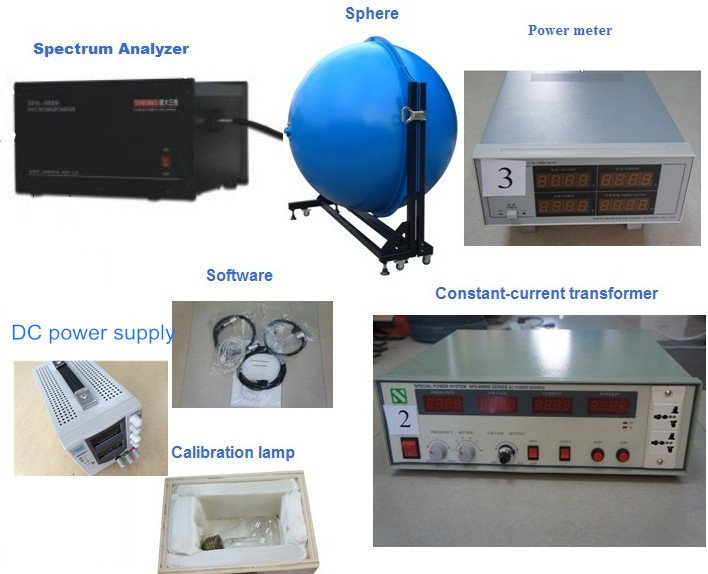

2.Valuable Accessiories: constant-current transformer, spectrograph,
sphere,power meter, wires, software, calibration bulb
sphere,power meter, wires, software, calibration bulb
3. Test led bulbs and led tubes, CFLs, fluorescent tubes, halogen lamps, flood
light etc.
4. Voltage: AC100-300V DC 30V
Wattage: within 300W
Spectrum range: 380nm-800nm
Why choose LITE testers?
Shenzhen lite has been in led lights testing field with over 10 years, and win client from Europe, American and South America, the Middle East and other regions. Our tester has been very helpful to prove the quality lights to customers and get very good feedback from them.
1. Built-in different converter: E27, E14, B15, B22, GU10, G9.
2. Testing time: Within 10 seconds.
3. Testing error: within 3~5%.
4. Compact size&light weight
5. Wooden package,good protection.
6. Different size and requirements can be cutomized
7. 2 years replacement warranty.
DIA |
φ0.5m,φ1.0m,φ1.5m,φ2.0m,
Other sizes can be designed according to request. |
Applications |
1. Luminous flux measurements on lamps for production and quality control, research, and development.
2. Calibration of luminous flux working standards
3. Color measurement on light sources with colormeters.
4. CRI Test, more professional |
Lamp Position |
vertical, horizontal. |
Structural Features |
Multi interface on the sphere, testing of photometer and colorimeter at the same time. |
Interior Sphere Paint |
coating inside adopts pure barium sulfate
|
Parameter |
Reflectance p≈0.8, variation of ρ(λ)<1.5% in the visible range. |
Advantage |
Powerful function and new Valuable accessories
The reflectivity curve ρ(λ) and transparency curve I(λ) of sphere coating is more smooth, longer life and more accurate than normal, |
