Product Specifications
| Prod Model: |
XL650C6500922-5 |
| Wavelength: |
650nm |
Product Description

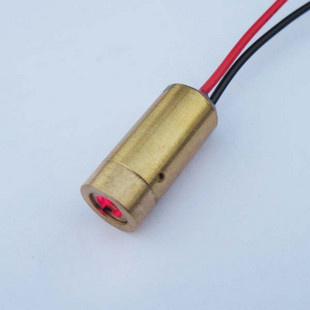

Cross Line Laser Module, Red Line Laser Module, Industrial Laser Module
Key Feature:
High quality/High Stability/High reliability
APC driving circuit/Low cost/Long Life
Application:
Industrial Instruments and Equipments
Wild Explore Instruments
Military Instruments and Equipments
Medical Instruments
Surveying Instruments
Bar Scan
Specifications:
Wave length: 650nm
Power: 5MW
Output power: 2.5-3.8mW
Lens: Glass
Circuit: APC
Operating voltage: 3V
Beam shape: Cross Line
Operating current: 20-40mA
Life time: 5000hours
Grade: Industiral grade
Operating temp: -10º ~50º
Storage temp: -40º ~80º
Size: Φ 9mm× 22mm.
Xinland International Limited, a professional opticalelectronics products supplier in China and specilized in developing and selling of all professional laser products and laser componets, such as red, green, blue, blue-violet laser module(including DOT, line and cross line laser module), laser pointer/flashlight, DPSS laser, laser level, laser sight/riflescope, laser stage lighting, laser equipment and bore sight. Meanwhile, We also can supply laser accessories, such as laser diode, collimator lens, laser protection googles etc.
These laser products are widely used in the field of test detection instrument, military equipment, laser medical equipment, laser marking, laser ranging, laser swinger, barcode scanning, location identification, teaching, power tools, measuring ranging, cutting marking, stage lighting and laser landmarks and so on
