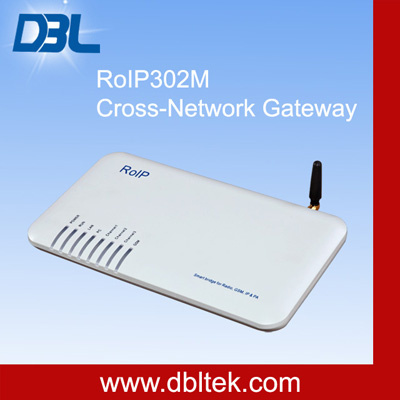

Cross-Network Gateway Radio/VoIP/GSM/Built in Sip Server (RoIP302M)

Product Specifications

Prod Model:	RoIP302M
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Build In:	Sip Server/GSM/CDMA Module, DDNS Service
Ptt Interfaces:	3
Audio Channels:	3
Bridges:	Civilian Radio Network, Internet, Cellular Phone
Support:	Point-to-Point Mode and Group Transmit Mode
Application:	All

Product Description

Radio Repeater RoIP302M Cross-Network Gateway Radio/VoIP/GSM/Built in SIP Server

What is a Cross-Network Gateway?
It enables voice communications among the Radio, VoIP, GSM, and Public Announce (PA) networks.
It incorporates Radio over Internet Protocol (RoIP) which converts radio voice communications into VoIP.
It links up various radio networks together in order to extend the geographical coverage.
It is a GSM voice gateway by enabling voice communications to and from the telephone networks (GSM and PSTN)
It enables a voice connection to the public announce system for general and emergency broadcast.
It makes recording of voice communications among various networks simple and easy.

Who needs a Cross-Network Gateway?
Adio Service Operators who would like to expands their geographical coverage.
Radio User who would like to make and receive calls from the telephone networks.
System administrators who would like to monitor and maintain good control over the existing radio networks.
System Integrator who would like to build or deploy a reliable voice communication network in timely manner

Applications
Extending Service Coverage
Radio service coverage is often affected by the geographical landscape, like high hills. The traditional method is to build expensive radio repeaters on the hills in order to extend the radio service coverage. In addition, its maintenance cost is high and its performance is affected by the weather. In this case, the Xtrunk gateways are the perfect solution. They are low cost and easy to install and maintain. They offer a very stable and reliable link between the two sites.

Key Specifications/Special Features:

The fundamental of RoIP(Radio over IP)technology is to convert the audio and PTT signals in a radio terminal into IP packets and then transmit the data via the IP networks. The challenge in this technology is to insure that the audio is transmitted in real time and the PPT control signal is transmitted immediately and reliably. The radio range is general limited by the restricted transmitting power, the antenna sensitivity, and other environmental factors. The success deployment of this technology extends the coverage of a radio network without using expensive repeaters or links up multiple radio networks in the world. In addition, this technology can also links up the radio world to the VoIP world and the cellular world easily. It truly makes the voice communications across multiple networks possible
RoIP302 series is developed based on VoIP technology to realize RoIP functions in order to create a new type of gateway to bridge voice communications across multiple networks (Radio, Cellular, VoIP). Its main advantages are low bandwidth usage, high fault tolerant, low loss in voice quality, fast response, easy installation and configuration. It is ideal for setting up a private network with multiple voice communication platforms, a distributed network for remote management, a network with extended coverage, and an integrated network of multiple amateur radio networks
RoIP302 Series Cross-Network Gateway has 3 PTT interfaces. Up to 3 audio channels from radio networks can be connected to the RoIP302 simultaneously. All 3 channels can be programmed into the same or different groups in order to bridge real time voice communications to various network interfaces
RoIP302 Series has a built-in GSM/CDMA cellular phone module, user can access the radio networks connected via the cellular network installed. A radio terminal equipped with DTMF generation capability can make an outgoing call via the cellular network as well.
