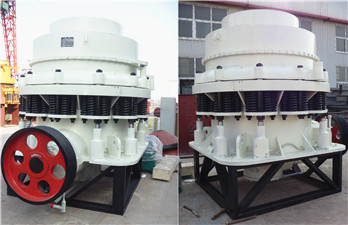

CS Cone Crusher

Name: CS Cone Crusher
Brand: China-Manufacturer-Directory.com
SKU: 695065822
Availability: InStock
Rating: 5 (29 reviews)

Supplier:	Shanghai Pioneer Machinery Manufacturing Co., Ltd
Price:	Negotiable/Piece
Min Order:	1/Piece
Quantity::
Trade Terms:	FOB

Product Specifications

Prod Model:	CS cone crusher
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Crushing Equipment:	Crushing Equipment
Motor Type:	AC Motor
Type:	Cone Crusher
Condition:	New

Product Description

CS cone crusher introduction:
CS Series High-efficiency Spring Cone Crusher concentrates on the specialty of high-frequency, optimization of cavity and reasonable impact. It is based on the conceptions of laminated crushing principle and more crushing and less grinding. It is researched and designed by our company, according to the customers' requirement. This CS series cone crusher is widely used to crush metalliferous and non-metalliferous ores, cement, construction and sand. The materials can be iron stone, non-ferrou metal ore, granite, limestone, quartzite, sandstone, cobble, etc

Working principle of CS cone crusher
When CS series cone crusher is working, the motor drives the eccentric ring spin through V-belt, big belt wheel, transmission shaft, big bevel gear and small bevel gear. The crushing cone spins by the force of eccentric ring, which makes the crushing wall approach and leave rolling mortar wall to and fro, so the materials get impacted and broken in the crushing chamber formed by fixed cone and movable cone. The materials were discharged from the bottom after several times' break until they get the required grade.

Model	Dia. mm (feet)	Cavity	Feed Opening		Outlet Setting (mm)	Shaft Speed (r/min)	Power (kw)	Capacity (t/h)	Weight (t)	Dimension (mm)
			Closing Side (mm)	Open Side (mm)
CSB75	900 (3')	Fine	83	102	9-22	580	75	45-91	15	2821×1880×2164
		Coarse	159	175	13-38			59-163
CSB160	1295 (4 1/4')	Fine	109	137	13-31	485	185	109-181	27	2800×2342×2668
		Medium	188	210	16-38			132-253
		Coarse	216	241	19-51			172-349
CSB240	1650 (5 1/2')	Fine	188	209	16-38	485	240	181-327	55	3911×2870×3771
		Medium	213	241	22-51			258-417
		Coarse	241	268	25-64			299-635
CSB315	2134 (7')	Fine	253	278	19-38	435	315	381-726	110	4613×3251×4732
		Medium	303	334	25-51			608-998
		Coarse	334	369	31-64			789-1270
