CS Series Horizontal Lathe Machine
Product Specifications
| Prod Model: |
CS61125 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Swing Diameter Over Bed: |
1250--1800mm |
| Length Of Workpiece: |
3000--10000mm |
| Max. Weight Of Workpiece: |
10t |
| Type: |
Horizontal Lathe |
| Automatic Grade: |
Manual |
| Precision: |
Precision |
| Power Source: |
Electric |
| Setting Mode: |
Floor-type |
| Controlling Mode: |
Artificial |
| Processing Accessory: |
Chuck CNC Lathe |
| Tool Holder: |
Single-tool Holder CNC Lathe |
Product Description

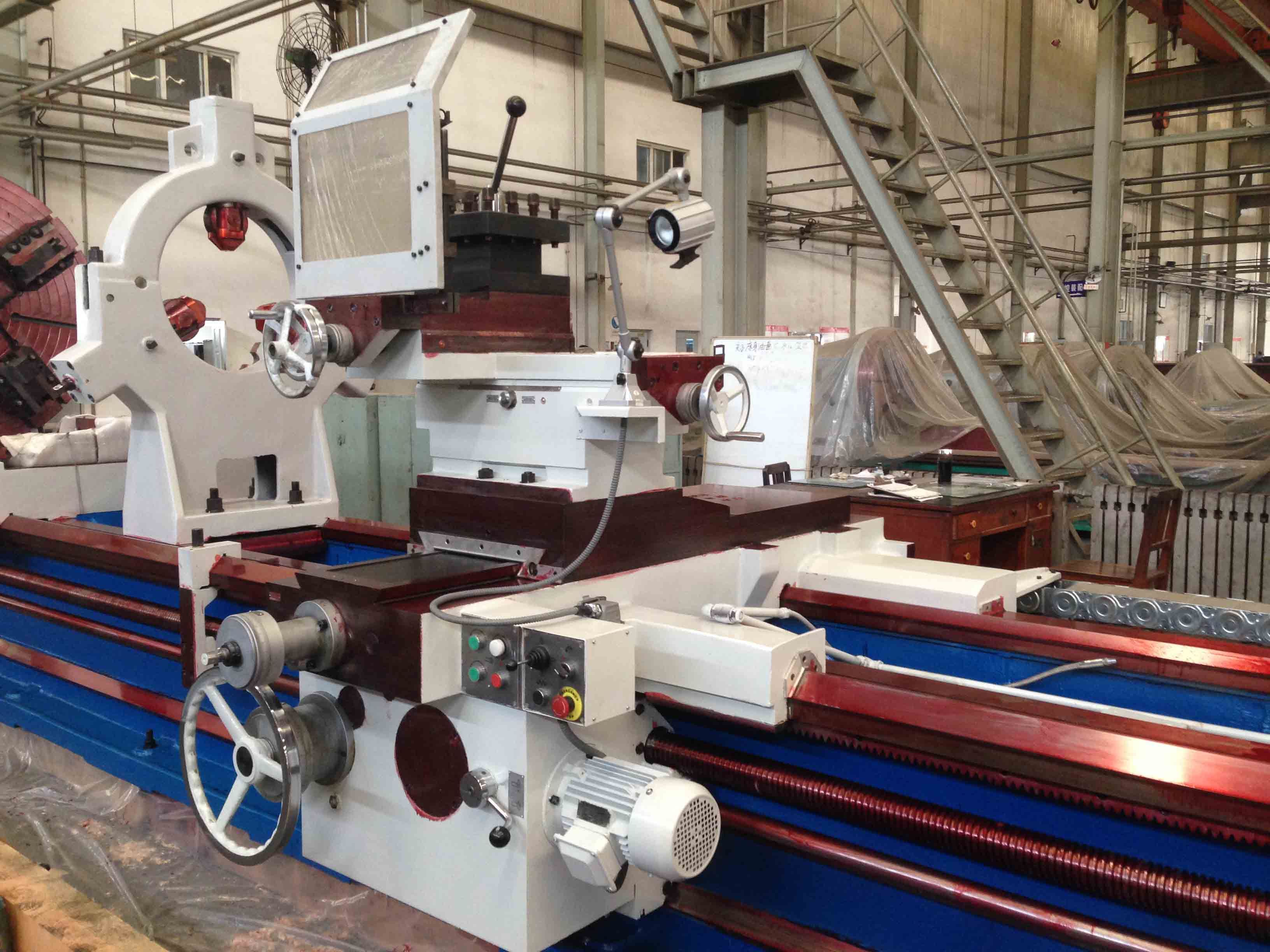

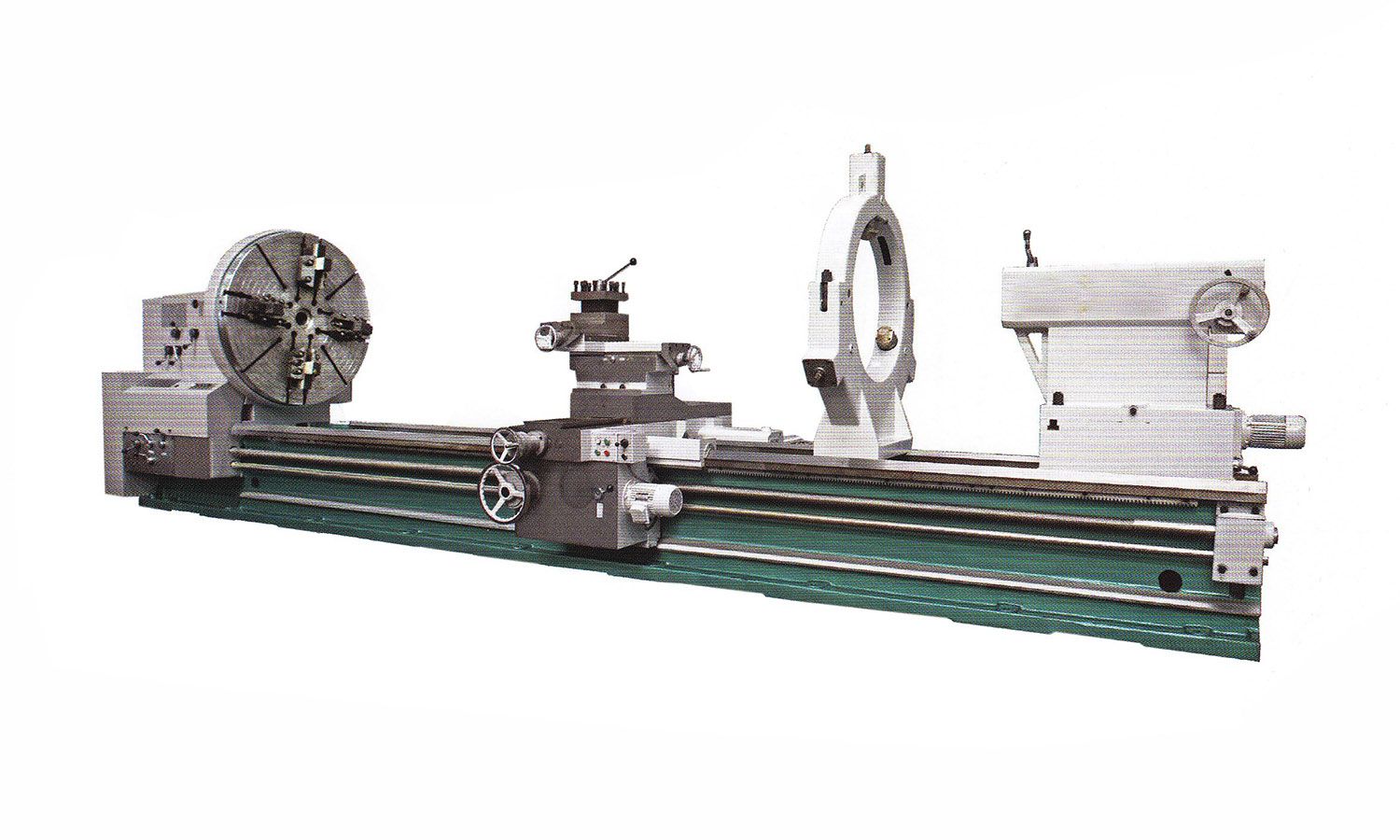

CS-Series Horizontal Lathe
Max. Weight of Workpiece: 10T
Swing Diameter Over Bed: 1250--1800mm
Length of Workpiece: 3000--14000mm,The machine tool produced by our Corporation belongs to the multi-function series general machine tool whose load capacity is 10 tons. With the features of high accuracy, high reliability, high rigidity, precise manufacturing, elegant appearance as well as convenient maintenance, the machine tool could accomplish many tasks, such as rough or finish machining of metal and non-metal workpieces, turning of end faces, excircles, and inner holes, as well as turning of metric, BSP and module threads. The machine can also achieve short taper turning with the motor-driven upper tool rest individually. It has been the first choice for many machining and manufacturing industries such as paper making machinery, glue roller manufacturing, maintenance and repair, railway, moulds, large valves and metallurgy roller, etc.
Machine Bed:
The machine bed, 970mm in width and 710mm in height, adopts flat guideways of excellent craftiness. With the box shape canting pull rope structure of high rigidity, it is also designed for a casting structure and appropriate rope arrangement internally. The guideways adopt the middle frequency quenching-grinding process which makes them a quality of fine hardness. Wear resistant materials applied on the friction pairs of guideways endow the machine tool with excellent characteristics of wear resistance and accuracy consistency.
Headstock
The front diameter of spindle is 200mm. The triple supporting structure has formed the spindle a feature of high rigidity, high strength as well as high accuracy. Bearings with high accuracy of KOYO (Japan), NSK or a certain famous brand domestically would be selected for spindle use. Double row cylindrical roller bearings with high machining accuracy will be used for front and back bearing journals, the inner circle of which is a tapered hole whose taper is 1:12. Besides matching design with the tapered journal of spindle, the inner circle may adjust the clearance of the bearings under the condition of axial movement, thus effectively improving the accuracy.
Tailstock
Active centers are equipped internally in the tailstock sleeve whose diameter is 200mm, which endows it with the feature of high rigidity and rotating accuracy. The tailstock is divided into upper body and lower. Spindle is equipped in the upper while motor-driven and backward preventing security mechanisms are equipped in the lower
Saddle & Tool Rest
Every series has the function of automatic feeding mechanically. Double-layer compound rests are equipped in the machine tools whose swing diameter is above 1400mm, which easily realize the longitudinal or cross feeding operations.
Feed Box & Slide Box
These are the same as the ones equipped in CT series. With the characteristics of simple and reliable structure as well as convenient maintenance and repair, the type of products belong to the most reliable and mature ones of our Corporation. The electromagnetic clutch driving and the cross handle switches adopted greatly improve the easiness of operation.
|
Model |
CS61125 |
CS61140 |
CS61160 |
CS61180 |
|
Swing diameter over bed |
Φ1250 |
Φ1400 |
Φ1600 |
Φ1800 |
|
Swing diameter over tool rest |
Φ880 |
Φ1050 |
Φ1250 |
Φ1450 |
|
Max. length of work pieces |
1500,2000,3000,5000,6000,8000,10000,12000,14000 |
|
Diameter of spindle hole |
Φ100 |
|
Taper hole of spindle |
1 : 20 |
|
Spindle speed grade |
12 grades |
|
Spindle speed |
4.25-192 r / min |
|
Chuck diameter |
Φ1250 |
Φ1250 |
Φ1400 |
Φ1600 |
|
Stroke of compound rest |
300mm |
|
Cross rapid moving speed |
1900mm / min |
|
Longitudinal rapid moving speed |
3800mm / min |
|
Feed species of tool rest |
48 |
|
Feed range of tool rest |
Longitudinal 0.057 -- 12.720mm/r |
Cross 0.023 -- 5.296mm |
|
Range and species of metric thread |
1-224mm 46 kinds |
|
Range and species of BSP thread |
28-1 tooth/inch 46 kinds |
|
Range and species of module thread |
0.25-56mm 37 kinds |
|
Stroke of tailstock sleeve |
250mm |
|
Diameter of tailstock sleeve |
Φ200 |
|
Taper hole of tailstock spindle |
Morse No.6 |
|

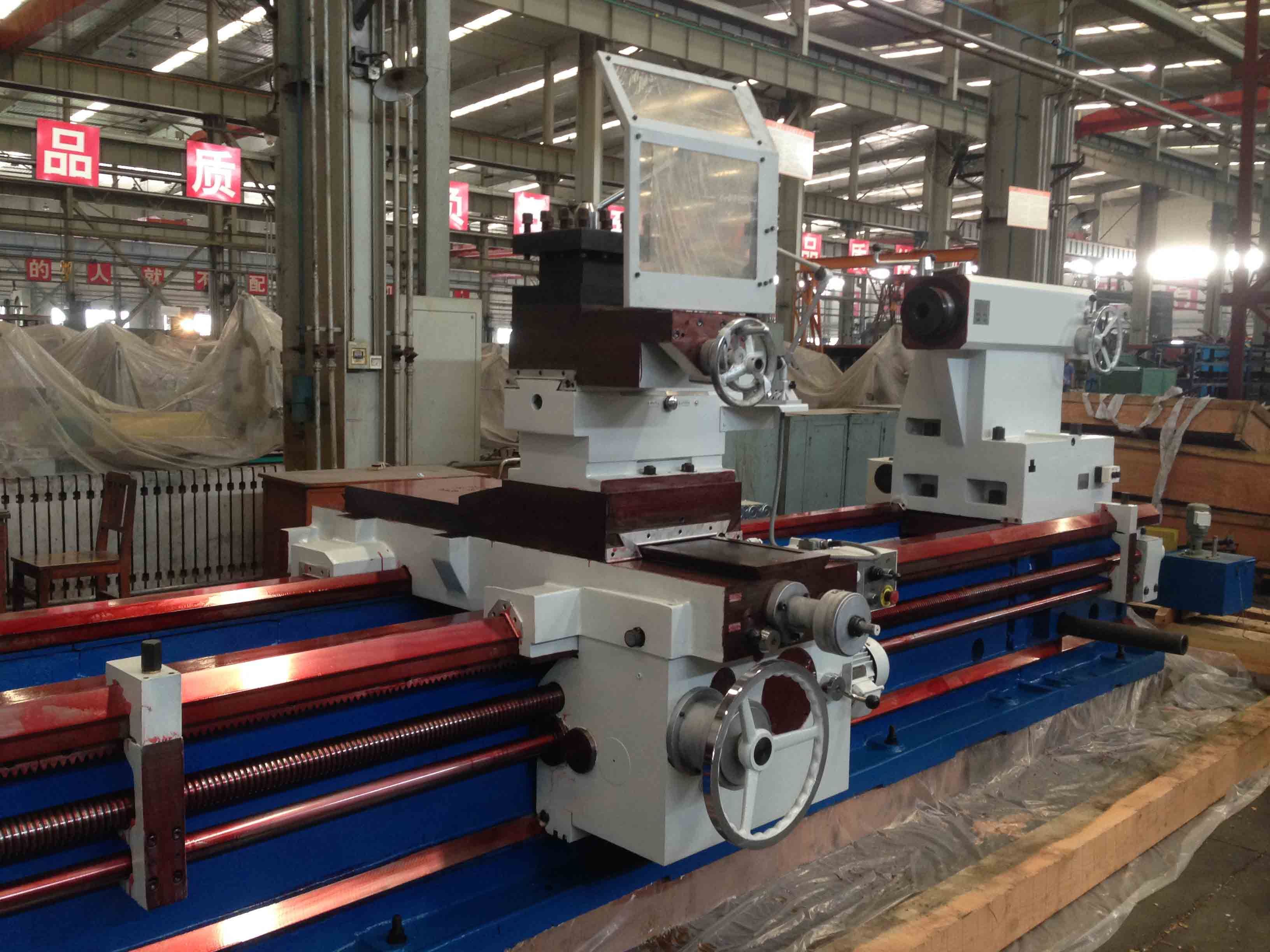

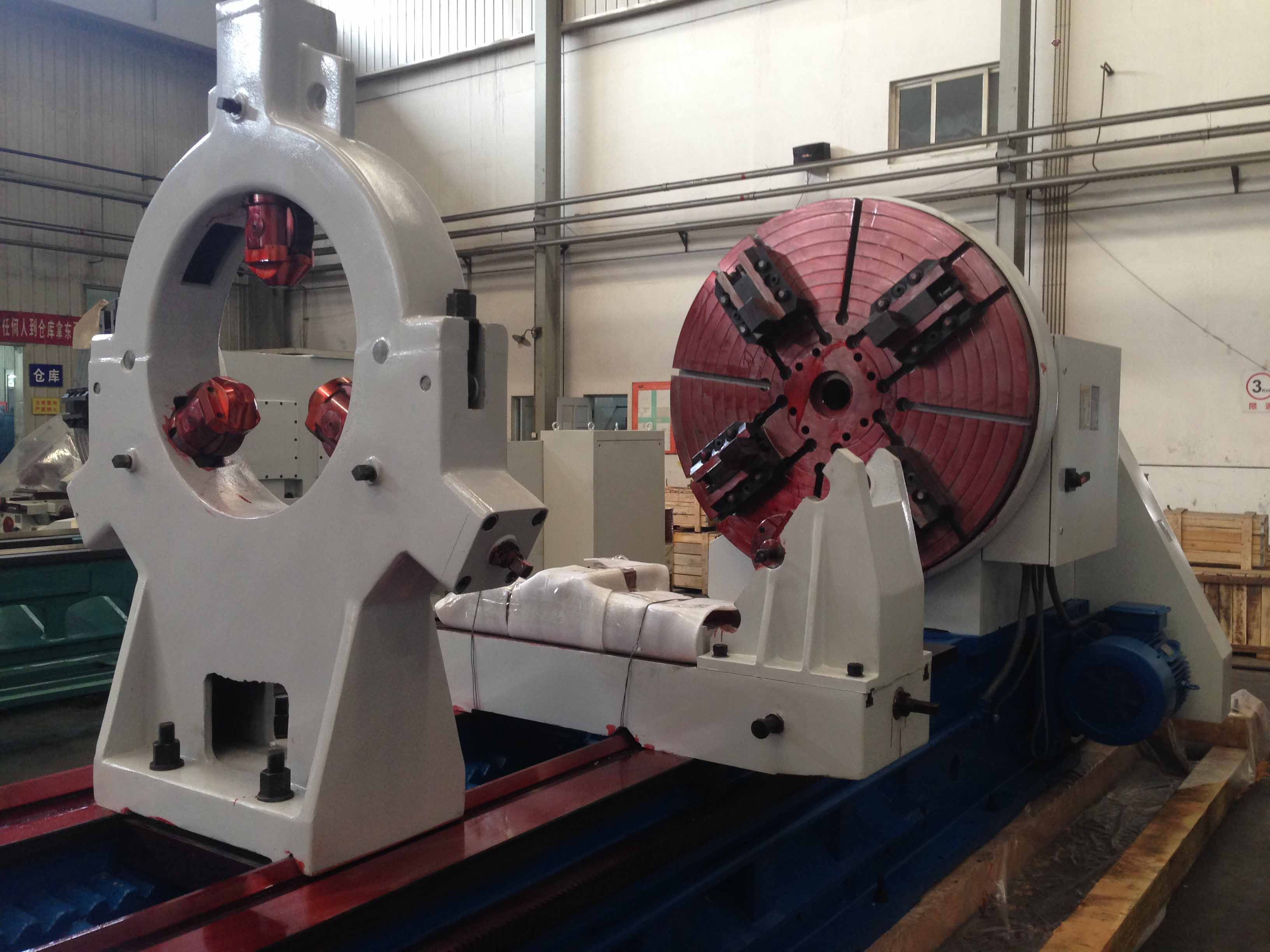

Closed center rest |
φ200 ~ 550mm |
φ500 ~ 850mm |
|
Open center rest ( optional ) |
φ400 - 880mm |
φ500 - 1050mm |
φ600 - 1250mm |
φ750 - 1450mm |
|
Power of main driving motor |
22 kW |
|
Max. torque |
10KN.m |
|
The Max. loading capacity between centers |
10T |
|
Width of guide way |
970 |
