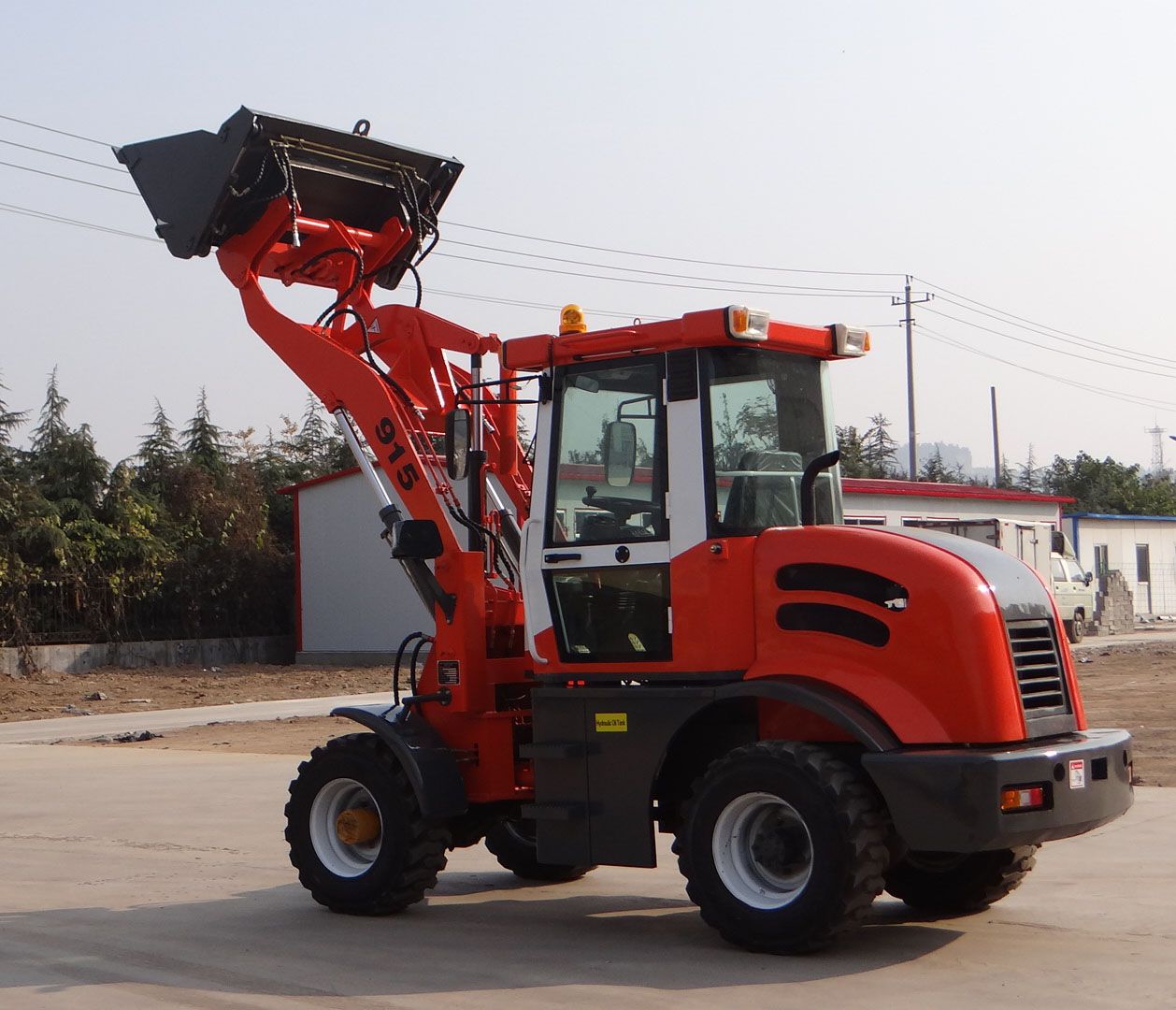

CS1.5ton Mini Loader with Hydraulic Joystick Control
Product Specifications
| Prod Model: |
CS915 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Engine: |
Zh4100k14-3 |
| Bucket Capacity: |
0.7m3 |
| High Quality: |
Best Price |
| Size: |
4250X1850X2650mm |
| Fork: |
Pallet Fork Grapple Fork |
| Munltifnction Job: |
4 in 1 Bucket |
| Walking Mode: |
Wheeled |
| Condition: |
New |
| Type: |
Small Loader |
| Certification: |
CE |
| Load And Unload Method: |
Front Discharge |
Product Description
Wheel loader 915 CE
Euro 3 Engine
Hydraulic Quick Hitch
Joystick
Electric shift optional
Heating Cabin
Adjustable Steering Wheels
Comfortable Operator's seats
Supply all kinds of accessory
Origin Shandong, China
Shipment 3 units in 40 FCL
Shipment 1 unit in 20 FCL
Delivery time: 15-20 day after receive the deposit
Payment terms: 30% T/T deposit, balance before shipment.
Rated Load 1500kg
Total Weight 3200kg
|
Overall Dimension |
|
Length(with bucket on ground) |
4900(mm) |
|
Width(to outside of wheels) |
1830(mm) |
|
Bucket width |
1700(mm) |
|
Height(To the top of the cab) |
26500(mm) |
|
Wheel base |
2060(mm) |
|
Tread |
1400(mm) |
|
Min. ground clearance |
210(mm) |
|
Main Technical Specification |
|
Rated load |
1500(Kg) |
|
Operating weight |
3350KG |
|
Rated bucket capacity |
0.5 (CBM) |
|
Bucket type |
Heavy-duty bolt teeth |
|
Max. breakout force |
36kN |
|
Max. dump clearance |
2650(mm) |
|
Min. turning radius |
4500mm |
|
Driving system |
Hydraulic converter |
|
Traveling speed(Km/h) |
2 forward and 2 reverse |
|
(1) 1st gear forward |
5.75 |
|
(2) 2nd gear forward |
23.86 |
|
(3) 1st gear reverse 5.85 |
5.85 |
|
(3) 2nd gear reverse |
24 |
|
Diesel engine |
|
Model |
A498 BT1 EURO 3 |
|
Type |
In-line arrangement. Water cooling |
|
Rated output |
37 (kW) |
|
Inter-bore of cylinder/stroke |
95 (mm) |
|
Rated speed |
2300(r/min) |
|
Max. Torque |
275(N. M) |
|
Starting type |
Electric |
|
Min. fuel consumption |
230(g/Kw. h) |
|
Net weight |
240(kg) |
|
Transmission System |
|
A Torque Converter |
|
Model |
YJ240 |
|
Type |
Fixed-spindle power shift |
|
Cooling type |
Pressure oil circulating |
|
B Transmission case |
|
Type |
Power shift, spur gear constantly in mesh |
|
Gear shift position |
2 Forward and 2 reverse gears |
|
C Axle and Tire |
|
Type of main reducer |
spiral bevel gear, single stage |
|
Size of tire |
12-16.5 |
|
Brake system |
|
Service brake |
4 wheel hydraulic brake |
|
Parking brake |
Hand operated |
|
Steering System |
|
Type |
Middle articulated frame with hydraulic power steering |
Weifang Map Power Co., Ltd., was founded in 2006. We are a professional manufacture and chain supplier specializing in construction machinery and agricultural equipments. 70% of our products are made for export.
We keep diverse products according to customer and market demand. We produce and supply site dumpers, wheel loaders, tractors, implements, wheel excavators, crawler excavators, backhoe loaders, forklifts, road rollers, light towers, concrete mixers, plate compactor, impact tampers, road cutters, concrete vibrators, and so on.
With experiences in professional manufacturing, Map Power has successfully sold equipments to around 30 countries and areas around the world including Australia, New Zealand, Canada, England, Poland, Dutch, Italy, Russia, India, Main countries of Africa...
Our main products list.
Agricultural machinery:
1. Tractor from 18HO-130HP
2. Farm implemants covered dics mower, lawn mower, tractor mouting front end loader, backhoe loader, sweeping machine, snow blower, dics plow, dics harrow and etc.
Construction machine:
Wheel Loader, Truct Crane, Wheel Excavator, Crawler excavator, Backhoe Loader, Forklift, Road Roller, Concrete Mixer, Plate Compactor, Impact Tampers, Road Cutters, Concrete Vibrators, and so on.
Customer's requirement is our first priority. We can provide reliable, fast and professional service for you through telephone, on-site or network channels. We are ready to provide all customers with 10 years spare parts supply. Furthermore, if your products parts are damaged, please also contact us to see if it could be restored, and if so, you can avoid the trouble and cost of purchasing new spare parts. In our spare parts department, customers can get professional technical advice, as well as the relevant information regarding all products and services
With experiences in professional manufacturing for more than 10 years. WEIFANG MAP POWER Co. Has successfully sold equipments to around 40 countries and areas. We sincerely welcome customers and friends all over the world to visit our factory and cooperate with us in the future.
