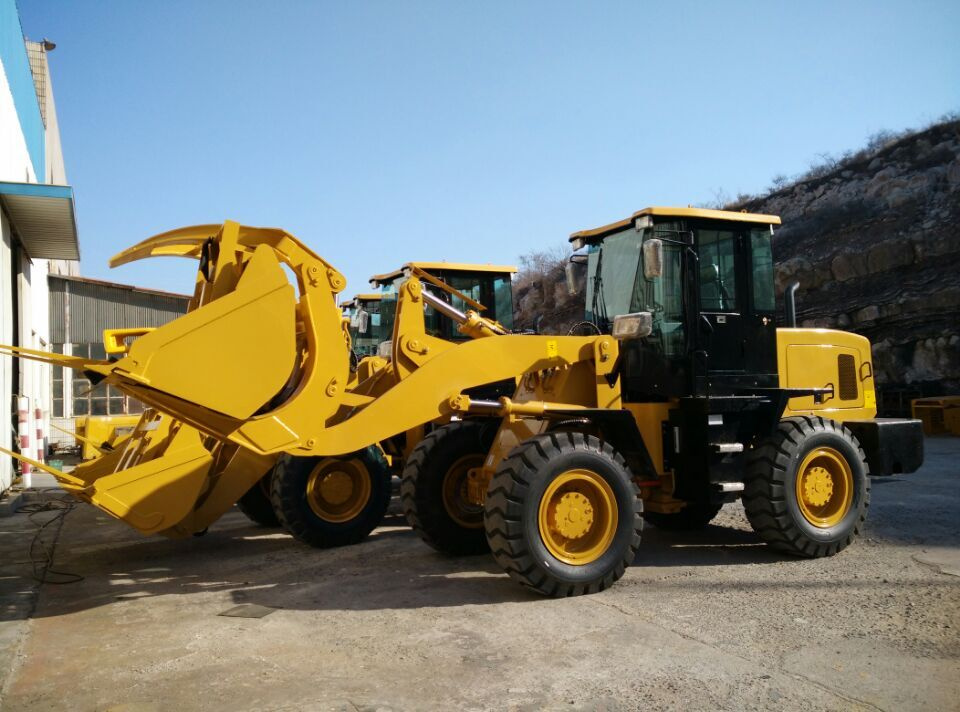

Csrex/Caise Wheel Loader Construction Machinery with Cummins Engines

Product Specifications

Prod Model:	CS956
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Model No.:	CS956
Loading Capacity:	5000kg
Europe Market:	CE
Engine:	Cummins , Xinchao
Attachment:	as Customer`S Demand
Type:	Medium-sized Loader
Walking Mode:	Wheeled
Load And Unload Method:	Front Discharge
Certification:	ISO9001: 2000
Condition:	New
Engine Power:	92kw

Product Description

    Highlights of CS956 wheel Loader:

  . CE Approved
  . Performance Enigne
   .Fully Hydraulic Converter Driving System.
   . Rops&Fops Cabin
   . China Factory Direct Sale to Customers.
  .  More Than 30 Kinds of Durable, Safe and Effective Attachments  Suitable For Loaders



Standard Equipments:

    Standard Bucket, Luxury Cabin, E-mark Seat, Adjustable Steering Wheel ,Heater, CE Engine, Lock for
     Lifting and Steering Cylinder, Backward Imagine, Tipping Cabin,Easy-damaged Spare Parts.

-----Optional Equipments:                        --------- Optional Attachments:

       Euroiii Engine                                             Mixer Bucket
       Hydraulic Joystick                                      Pallet/Grass Forks
       Quick Hitch                                                  Grapple Forks/ Wooden Forks
       Hydraulic Line                                            Grapple Bucket
       LED Light                                                     Snow Bucket
      Automatic Lubrication Monitor                  Hydraulic Snow Blade
      Varta Anti-freeze Battery                             Sweeper
      Rops&Fops Cabin                                     Snow Blower
      Floating Function                                        4 In 1 Bucket
      Loader Weighter                                        Adjustable Pallet Forks


	1	rated load	5000kg
	2	overall weight	17000kg
	3	rated bucket capacity	3m3
	4	maximum tractive force	152KN
	5	maximum breakout force	≥170KN
	6	maximum grade ability	30ºC
	7	maximum dump height	3150mm
	8	maximum dump reach	1250mm
	9	overall dimension (L×W×H)	7920×3050×3400mm
	10	minimum turning radius	6640mm
Engine	11	model	Weichai SteyrWD10G220E22
	12	type	\\\ lnline  water cooling dry cylinder  injection
	13	-×No. of cylinder-bore/stroke	6-126×130mm
	14	rated power	162kw--2400r/min
	15	maximum torque	860N.m
	16	min fuel-consume ratio	≤215g/kw.h
Transmission system	17	torque converter	YJ375
	18	gearbox mode	Power shift normally engaged straight gear
	19	gear shift	4,4 4 forward shift  4reverse shift
	20	maximum speed	38km/h
Drive axles	21	:main reducing spiral	bevel gear grade 1reduction
	22	decelerating mode	planetary reduction,grade 1
	23	wheel base (mm)	3200mm
	24	wheel tread	2250mm
	25	minimum ground clearance	450mm
Hydraulic system	26	system working pressure	18MPa
	27	boom lifting time	5.95±0.2s
	28	total time	10.95±0.5s
	29	fuel tank capacity	300L
	30	function of leveling automatically	yes
Brake system	31	service brake	air over hydraulic disc brake on 4 wheels
	32	parking brake	manual parking brake
Tyre	33	type specification	23.5-25
	34	front tyre pressure	0.4Mpa
	35	rear tyre pressure	0.35Mpa
