Product Specifications
| Prod Model: |
UT320 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Hardness Scales: |
Hl\ HRC\Hrb\Hv\Hb\Hs |
| Test Methods: |
Ultrasonic |
| Type: |
Ultrasonic Guage |
Product Description

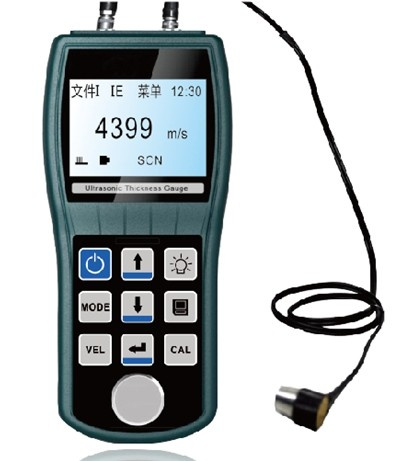

CSWUT320 High Performance Ultrasonic Thickness Gauge
Instrument features
USB2.0 interface, able to communicate with PC
Support wireless printing
Adjustable brightness and contrast of LCD
I-E mode, E-E mode, through-coating measurement
Voice broadcasting
Technical Specification
Measuring range: 0.75-275mm(steel)
Displaying accuracy: 0.01mm, 0.001mm optional
Measuring error: 1 mm~10 mm: ± 0.05mm 10mm~275mm: (± 0.3%H+0.05)mm
Working mode: P-E, I-E, E-E
Measurement frequency: 5MHz, 7.5MHz, 2MHz
Ultrasonic velocity: 1000-9999m/s
Display: FSTN digital LCD with LED backlight
Zero adjustment: Auto returning to zero when you press the key after the probe is put on the specimen.
Linear correction: Auto linear correction by the MCU programs(V Path auto-compensation)
Alarm function: Setting the measurement limit and alarming for the results beyond the limit.
Working voltage: 3*1.5V
Power off: If not continuous main function parameters
Display contents: Thickness value, coupling condition, power state, CAL calibration state, sound velocity
Dimensions: 155mm*68mm*27 mm
Size: 230g
Through-coating measurement available
Main functional parameters
Adapted to measure the thickness of good conductor for ultrasonic, such as metal(steel, cast iron, aluminum, copper), plastic, ceramic, glass, glass fiber and so on.
Able to measure the ultrasonic velocity in turn if the thickness value is known in order to improve the measurement precision.
Two working modes: Single point measurement and scanning measurement.
Able to preset the upper limit and the lower limit for the thickness, alarm when the value is beyond the limit.
Coupling state indicating in the display.
With LED backlight of display, easily used in dark environment.
Indicating remaining battery energy on the LCD for the real-time power energy monitoring.
Able to communicate with the PC via USB 2.0 interface
Optionally equipped with PC software properly, sending the measurement results, managing the measurement store, analyzing the measurement statistics, printing the measurement reports and so on.
Adaptive in poor operating environment, compatible with vibrating, impact, and electromagnetic interference.
|
Instrument features |
USB2.0 interface, able to communicate with PC |
|
Display |
FSTN digital LCD with LED backlight |
|
Working Voltage |
3*1.5 V |
|
Dimension |
155mm*68mm*27 mm |
|
Size |
230g |
