Price: | US $ 5/Piece |
---|---|
Trade Terms: | FOB,EXW,CIF |
Min Order: | 1/Piece |
Pay Type: | L/C,T/T,Western Union,Paypal |
Prod Model: | CT |
---|---|
Markets: | North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Model No: | CT |
Function: | AC Conactor |
Certification: | CE CCC |
Operation: | Manual Type |
Rated Current(a): | AC4 |
Volt: | 220V |
Hz: | 50/60Hz |
Number Of The Contacts: | 1p 2p 3p 4p |
Circumstance Temperature: | -5°c~40°c |
Brand: | Suntree/OEM |
Size: | Miniature |
Theory: | Electromagnetic Relay |
Usage: | Communication Relay |
Protective Characteristics: | Open Relay |
Load: | High Power Relay |
Action Principle: | Electronic Type |

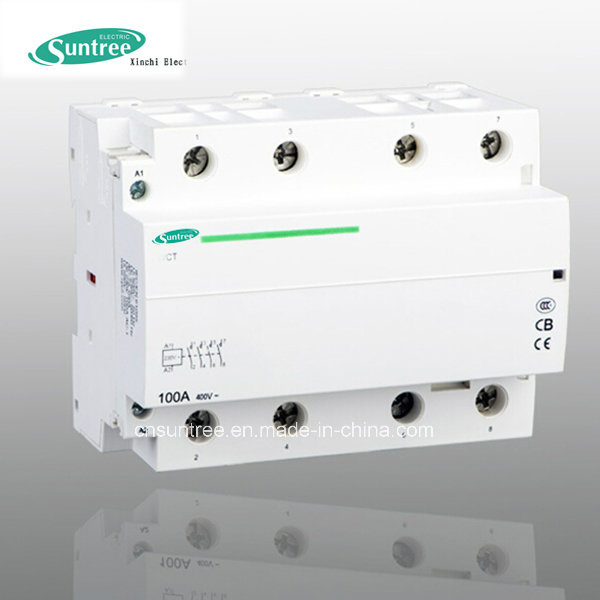

Modular contactors are not only used in the residential sector but in the tertiary
sector or in industrial utilities for the control of single or
three-phase loads up to 100 A.
They act as an interface between the order giver (e.g. power utility signal,
load-shedding device, pushbutton, thermostat, programmable time switch,
centralised technical management,) and the power circuit for final circuits:
lighting, utility motors: ventilation, heat pumps, watering system
hot water, heating, ovens, climatic chambers
Operrattiion:
The range includes two types of contactors:
Contactors with no manual operating mechanism:
- with closing poles, pole closing is controlled by the presence of voltage on
the coil and pole opening by the disappearance of this voltage,
- with opening poles, the poles are closed with the coil de-energized and
open when the coil is fed with power. Mainly used for load-shedding,
- with mixed poles (closing and opening).

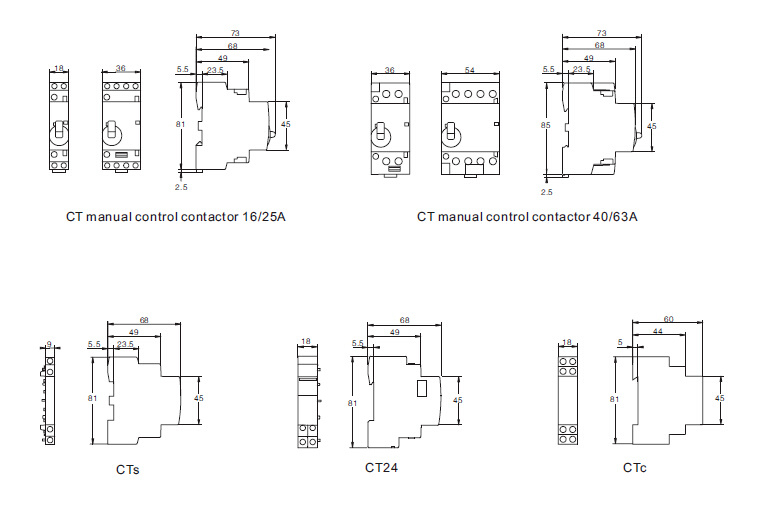

Contactors with manual operating mechanism: they additionally allow
closing or opening of the poles using the selector switch on the front panel
during maintenance operations, or are used to override an automatic
system. The selector switch has 3 positions: OFF/automatic operation/
manual or permanent operation.
Advanttages
A complete range of modular contactors:
16 to 100 A ratings in single, two, three or four-pole.
Closing, opening or mixed poles with or without manual operating mechanism.
Comply with the standards in force in residential and tertiary applications:
IEC61095.
Silent (< 20 dB).
With an adaptable indication auxiliary for 25 to 100 A contactors.
With control auxiliaries compatible with the reverser relay range and remote control of
the C60 circuit-breaker.
Anti-interference filter.
With accessories: screw cover, clip-on markers, spacers.
Homogenous with the entire Multi 9 offer:
- matching design,
- same profile,
- identical connections.
IIMPLEMENTATIION
Designed to be installed in modular switch boxes and switchboards.

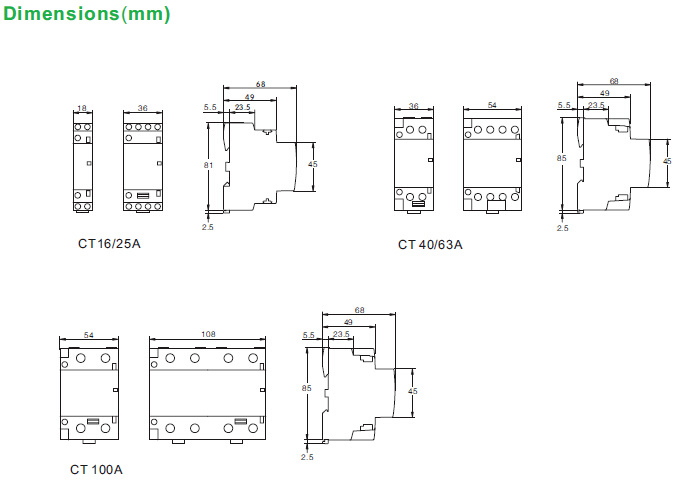

Optimised dimensions: in accordance with the rating and number of poles.
Easy symmetrical rail mounting using a twostate latch.
Easy connection using grooved tunnel terminals with flap.
Mixed +/- socket screws which cannot be lost.
Auxiliaries simply clipped on to contactors.
SPECIIFIICATIIONS
Electrical specifications
Power circuit:rating at 40C: 16 to 100A.
Control circuit:
operating voltage:
- 24 V AC ± 10%
- 230/240 V AC: -15% +6%,
coil frequency: 50 Hz.
Electrical endurance:
AC1 and AC7a categories:
- 16 A ratings, 100,000 operations
- 25 A ratings, 250,000 operations
- 40-63-100 A ratings, 200,000 operations.
Mechanical specifications
Visualisation of contactor state on front panel (coil fed or manual operation).
Mechanical endurance: 1,000,000 operations.
Connections:
control circuit:
- rigid cable: 2 x 1.5 mm2
- supple cable: 2 x 2.5 mm2 ,
power circuit:
- rigid cable:
6 mm 2 up to 25 A
25 mm 2 for 40 and 63 A
50 mm 2 for 100 A
- supple cable:
2 x 2.5 mm2 up to 25 A
2 x 10 mm2 for 40 and 63 A
2 x 35 mm2 for 100 A.820.
ENVIIRONMENT
Tropicalisation:
treatment 2 (relative humidity: 95% at 55C ).
Protection class:
IP 201 (front panel: IP 4).
Operating temperature:
- 5°C to +60°C.
Storage temperature:
- 40°C to +70°C.
Household AC Contactor Technical Data
RatingsUtilization category | Ui (V) | Ui (V~) | Conventional heating current (A) | Ie (A) | Controlled power (kW) |
AC-1, AC-7a AC-7b | 500 | 230 | 63 | 63/25 | 13/3.8 |
AC-1, AC-7a AC-7b | 500 | 230 | 40 | 40/15 | 8.4/2.4 |
AC-1, AC-7a AC-7b | 500 | 230 | 32 | 32/12 | 6.5/1.9 |
AC-1, AC-7a AC-7b | 500 | 230 | 25 | 25/8.5 | 5.4/1.9 |
AC-1, AC-7a AC-7b | 500 | 230 | 20 | 20/7 | 4/1.2 |
Utilization category | Making and breaking conditions | Electrification time (s) | Interval time (s) | Operating cycle times | ||
Ic/Ie | Ur/Ue | COS | ||||
AC-1, AC-7a | 1.5 | 1.05 | 0.8 | 0.05 | 10 | 50 |
AC-7b | 8 | 1.05 | 0.45 | 0.05 | 10 | 50 |
Utilization category | Making conditions | Breaking conditions | Electrification time (s) | Interval time (s) | Operating frequency | ||||
Ic/Ie | Ur/Ue | COS | Ic/Ie | Ur/Ue | COS | ||||
AC-1 | 1.0 | 1.05 | 0.8 | 1.0 | 1.05 | 0.8 | 0.05 | 10 | 6000 |
AC-7a | 1.0 | 1.05 | 0.8 | 1.0 | 1.05 | 0.8 | 0.05 | 10 | 30000 |
AC-7b | 6.0 | 1.0 | 0.45 | 1.0 | 0.17 | 0.45 | 0.05 | 10 | 30000 |
Volts | 24 | 42 | 48 | 110 | 220 | 230 | 240 | 380 | 400 | 415 | 440 | 500 | 600 |
50Hz | B5 | D5 | E5 | F5 | M5 | P5 | U5 | Q5 | V5 | N5 | R5 | S5 | Y5 |
60Hz | B6 | D6 | E6 | F6 | M6 | - | U6 | Q6 | - | - | R6 | - | - |
50/60Hz | B7 | D7 | E7 | F7 | M7 | P7 | U7 | Q7 | V7 | N7 | R7 | - | - |
Type | LC1-D09 | LC1-D12 | LC1-D18 | LC1-D25 | LC1-D32 | LC1-D40 | LC1-D50 | LC1-D65 | LC1-D80 | LC1-D95 | |
Rated working current (A) | AC3 | 9 | 12 | 18 | 25 | 32 | 40 | 50 | 65 | 80 | 95 |
AC4 | 3.5 | 5 | 7.7 | 8.5 | 12 | 18.5 | 24 | 28 | 37 | 44 | |
Standard power ratingsof 3-phase motors 50/60Hz in category AC-3 | 220/230V | 2.2 | 3 | 4 | 5.5 | 7.5 | 11 | 15 | 18.5 | 22 | 25 |
380/400V | 4 | 5.5 | 7.5 | 11 | 15 | 18.5 | 22 | 30 | 37 | 45 | |
415V | 4 | 5.5 | 9 | 11 | 15 | 22 | 25 | 37 | 45 | 45 | |
500V | 5.5 | 7.5 | 10 | 15 | 18.5 | 22 | 30 | 37 | 55 | 55 | |
660/690V | 5.5 | 7.5 | 10 | 15 | 18.5 | 30 | 33 | 37 | 45 | 55 | |
Rated heat current (A) | 20 | 20 | 32 | 40 | 50 | 60 | 80 | 80 | 125 | 125 | |
Electrical life | AC3 (x104) | 100 | 100 | 100 | 100 | 80 | 80 | 60 | 60 | 60 | 60 |
AC4 (x104) | 20 | 20 | 20 | 20 | 20 | 15 | 15 | 15 | 10 | 10 | |
Mechanical life (x104) | 1000 | 1000 | 1000 | 1000 | 800 | 800 | 800 | 800 | 600 | 600 | |
Number of the contacts | 3P+NO | 3P+NC+NO | |||||||||
3P+NC |
Type | A | B | C | D | E | a | b | |
LC1-D09~12 | 47 | 76 | 82 | 113 | 133 | 34/35 | 50/60 | 4.5 |
LC1-D18 | 47 | 76 | 87 | 118 | 138 | 34/35 | 50/60 | 4.5 |
LC1-D25 | 57 | 86 | 95 | 126 | 146 | 40 | 48 | 4.5 |
LC1-D32 | 57 | 86 | 100 | 131 | 151 | 40 | 48 | 4.5 |
LC1-D40~65 | 77 | 129 | 116 | 145 | 165 | 40 | 100/110 | 6.5 |
LC1-D80~95 | 87 | 129 | 127 | 175 | 195 | 40 | 100/110 | 6.5 |
Volts | 24 | 42 | 48 | 110 | 220 | 230 | 240 | 380 | 400 | 415 | 440 | 500 | 600 |
50Hz | B5 | D5 | E5 | F5 | M5 | P5 | U5 | Q5 | V5 | N5 | R5 | S5 | Y5 |
60Hz | B6 | D6 | E6 | F6 | M6 | - | U6 | Q6 | - | - | R6 | - | - |
50/60Hz | B7 | D7 | E7 | F7 | M7 | P7 | U7 | Q7 | V7 | N7 | R7 | - | - |
Type | LC1-DN09 | LC1-DN12 | LC1-DN18 | LC1-DN25 | LC1-DN32 | LC1-DN38 | LC1-DN40 | |
Rated working current Ie (A) AC-3 Ue≤440V | 9 | 12 | 18 | 25 | 32 | 38 | 40 | |
Rated hear current Ith (A) | 25 | 25 | 32 | 40 | 50 | 50 | 60 | |
Rated insulation voltage Ui (V) | 690 | 690 | 690 | 690 | 690 | 690 | 1000 | |
Rated operating voltage Ue (V) Max | 690 | 690 | 690 | 690 | 690 | 690 | 1000 | |
Rated operational power in AC-3 Pe (KW) | 220/230V | 2.2 | 3 | 4 | 5.5 | 7.5 | 9 | 11 |
380/400V | 4 | 5.5 | 7.5 | 11 | 15 | 18.5 | 18.5 | |
415/440V | 4 | 5.5 | 9 | 11 | 15 | 18.5 | 22 | |
500V | 5.5 | 7.5 | 10 | 15 | 18.5 | 18.5 | 22 | |
660/690V | 5.5 | 7.5 | 10 | 15 | 18.5 | 18.5 | 30 | |
Rated operational power in AC-4 Pe (KW) | 220/230V | 1.5 | 1.5 | 2.2 | 3 | 4 | 4 | 4 |
380/400V | 2.2 | 3.7 | 4 | 5.5 | 7.5 | 7.5 | 9 | |
415/440V | 2.2 | 3 | 3.7 | 5.5 | 7.5 | 7.5 | 9/11 | |
500V | 3 | 4 | 5.5 | 7.5 | 9 | 9 | 11 | |
660/690V | 4 | 5.5 | 7.5 | 10 | 11 | 11 | 15 | |
Frequency of operation (I/h) | 1200 | 1200 | 1200 | 1200 | 1000 | 1000 | 1000 | |
Electrical endurance (x104) | AC-3 | 100 | 100 | 100 | 100 | 80 | 80 | 80 |
AC-4 | 20 | 20 | 20 | 20 | 20 | 20 | 15 | |
Mechanical endurance (x106) | 15 | 15 | 15 | 15 | 15 | 15 | 6 | |
Operating voltage range of coil | Close voltage:(0.85~1.1)Us Open voltage:(20%~75%)Us | |||||||
Power consumption of coil (VA) | Atracting | 7 | 7 | 7 | 7 | 7 | 7 | 20 |
Starting | 70 | 70 | 70 | 70 | 70 | 70 | 200 | |
Rated insulation voltage of auxitiary contacts (V) | 690 | 690 | 690 | 690 | 690 | 690 | 690 | 690 |
Conventional thermal current of auxitiary contacts (A) | 10 | 10 | 10 | 10 | 10 | 10 | 10 | 10 |
Auxitiary contacts speecification | AC-15:360VA DC-13:33W |
Type | LC1-DN50 | LC1-DN65 | LC1-DN80 | LC1-DN95 | LC1-DN115 | LC1-DN150 | |
Rated working current Ie (A) AC-3 Ue≤440V | 50 | 65 | 80 | 95 | 115 | 150 | |
Rated hear current Ith (A) | 80 | 80 | 125 | 125 | 200 | 200 | |
Rated insulation voltage Ui (V) | 1000 | 1000 | 1000 | 1000 | 1000 | 1000 | |
Rated operating voltage Ue (V) Max | 1000 | 1000 | 1000 | 1000 | 1000 | 1000 | |
Rated operational power in AC-3 Pe (KW) | 220/230V | 15 | 18.5 | 22 | 25 | 30 | 40 |
380/400V | 22 | 30 | 37 | 45 | 55 | 75 | |
415/440V | 25/30 | 37 | 45 | 45 | 59 | 80 | |
500V | 30 | 37 | 55 | 55 | 75 | 90 | |
660/690V | 33 | 37 | 45 | 45 | 80 | 100 | |
Rated operational power in AC-4 Pe (KW) | 220/230V | 5.5 | 7.5 | 7.5 | 9 | 9 | 11 |
380/400V | 11 | 11 | 15 | 15 | 18.5 | 22 | |
415/440V | 11 | 11/15 | 15 | 15 | 18.5 | 22 | |
500V | 15 | 18.5 | 22 | 22 | 30 | 37 | |
660/690V | 18.5 | 22 | 25 | 25 | 30 | 45 | |
Frequency of operation (I/h) | 1000 | 1000 | 750 | 750 | 750 | 750 | |
Electrical endurance (x104) | AC-3 | 60 | 60 | 60 | 60 | 60 | 60 |
AC-4 | 15 | 15 | 15 | 15 | 15 | 15 | |
Mechanical endurance (x106) | 6 | 6 | 4 | 4 | 4 | 4 | |
Operating voltage range of coil | Close voltage:(0.85~1.1)Us Open voltage:(20%~75%)Us | ||||||
Power consumption of coil (VA) | Atracting | 20 | 20 | 20 | 20 | 22 | 22 |
Starting | 200 | 200 | 200 | 200 | 300 | 300 | |
Rated insulation voltage of auxitiary contacts (V) | 690 | 690 | 690 | 690 | 690 | 690 | 690 |
Conventional thermal current of auxitiary contacts (A) | 10 | 10 | 10 | 10 | 10 | 10 | 10 |
Auxitiary contacts speecification | AC-15:360VA DC-13:33W |
Type | 09 | 12 | 18 | 25 | 32 | 38 | 40 | 50 | 65 | 80 | 95 | 115 | 150 |
b | 76.6 | 76.6 | 76.6 | 76.6 | 76.6 | 76.6 | 127 | 127 | 127 | 127 | 127 | 158 | 158 |
c | 87 | 87 | 87 | 94 | 94 | 94 | 116 | 116 | 116 | 123.8 | 123.8 | 132 | 132 |
Type | LC1-F115 | LC1-F150 | LC1-F185 | LC1-F225 | LC1-F265 | LC1-F330 | LC1-F400 | LC1-F500 | LC1-F630 | |
Rated operation current (A) | AC-3 | 115 | 150 | 185 | 225 | 265 | 330 | 400 | 500 | 630 |
Standard power ratings of 3-phase motors AC-3(KW) | 220V | 30 | 40 | 55 | 63 | 75 | 100 | 110 | 147 | 200 |
380V | 55 | 75 | 90 | 110 | 132 | 160 | 200 | 250 | 335 | |
415V | 59 | 80 | 100 | 110 | 140 | 180 | 200 | 280 | 375 | |
440V | 59 | 80 | 100 | 110 | 140 | 200 | 250 | 295 | 400 | |
500V | 75 | 90 | 110 | 129 | 160 | 200 | 257 | 335 | 400 | |
660V | 80 | 100 | 110 | 129 | 160 | 200 | 280 | 335 | 450 | |
1000V | 65 | 65 | 100 | 100 | 147 | 160 | 185 | 335 | 450 |
Type | 3TB-40 | 3TB-41 | 3TB-42 | 3TB-43 | 3TB-44 | ||
Rated insulation voltage | 660 | 660 | 660 | 660 | 660 | ||
Rated operational current(380V) | AC-3 | 9 | 12 | 16 | 22 | 32 | |
AC-4 | 3.3 | 4.3 | 7.7 | 8.5 | 15.6 | ||
Rated outputs of three-phase motors at 50Hz | AC-3 | 230/220V | 2.4 | 3.3 | 4 | 6.1 | 8.5 |
400/380V | 4 | 5. 5 | 7.5 | 11 | 15 | ||
500V | 5.5 | 7 .5 | 10 | 11 | 21 | ||
690/660V | 5.5 | 7.5 | 11 | 11 | 23 | ||
1000V | - | - | - | - | - | ||
AC-4 | 400/380V | 1.4 | 1.9 | 3.5 | 4 | 7.5 | |
690/660V | 2.4 | 3.3 | 6 | 6.6 | 13 | ||
(×106)Mechanical endurance | 10 | 10 | 10 | 10 | 10 | ||
Switchina frequency | AC-3 | 1.0 | 1.0 | 1.0 | 1.0 | 1.0 | |
AC-4 | 0.2 | 0.2 | 0.2 | 0.2 | 0.2 | ||
(×106)Mechanical endurance | AC-3 | 1000 | 1000 | 750 | 750 | 750 | |
AC-4 | 250 | 250 | 250 | 250 | 250 | ||
Coil voltage lolerance | (0.8~1.1)Us | ||||||
Power consumption of coil (50Hz) | Closed | 10 | 10 | 10 | 10 | 10 | |
Cos | 0.29 | 0.29 | 0.29 | 0.29 | 0.29 | ||
Closing | 68 | 68 | 68 | 68 | 68 | ||
Cos | 0.82 | 0.82 | 0.82 | 0.82 | 0.82 | ||
Convention althermal current | 20 | 20 | 30 | 30 | 45 | ||
Conventional thermal current of auxiliary contacts | 10 | 10 | 10 | 10 | 10 | ||
Rated operational current of auxiliary contacts | AC-15 380/220V | 6/10 | 6/10 | 6/10 | 6/10 | 4/6 | |
Weight | 0.43 | 0.43 | 0.49 | 0.49 | 0.7 | ||
The number of AC coil voltage | Coil for 50Hz AC | Coil for 50Hz/60Hz AC | |||||
24 | BO | 24 | C1 | ||||
42 | DO | 42 | D1 | ||||
110 | FO | 110 | G1 | ||||
220 | MO | 220 | P1 | ||||
240 | UO | 240 | R1 | ||||
380 | QO | - | - |
Rated Voltage | Rated operational current(A) | Controllable motor power AC3(KW) | |
le=AC11, AC14 | DC11 | ||
110V | - | 0.9 | - |
220V | 10 | 0.45 | 2.2 |
380V | 6 | - | 4 |
440V | - | 0.25 | 4 |
660V | 2 | - | 4 |
Type | Type of contact | |
NO | NC | |
3TH30 | 4 | 1 |
31-OA | 3 | 2 |
22-OA | 2 | 3 |
13-OA | 1 | 4 |
04-OA | - | - |
3TH40/3TH80 40-OA | 4 | 1 |
31-OA | 3 | 2 |
22-OA | 2 | 3 |
13-OA | 1 | 4 |
04-OA | - | - |
3TH42/3TH82 80-OA | 8 | - |
71-OA | 7 | 1 |
62-OA | 5 | 2 |
53-OA | 5 | 4 |
44-OA | 4 | - |
Type | Rated thermal current(A) | Rated operation current(A) | Controllable power of motor(KW) | Type of auxliliary contact | ||||
AC-3 | AC-4 | |||||||
380V | 660V | 380V | 660V | 380V | 660V | |||
3TF30 | 20 | 9 | 7 | 4 | 5.5 | 1.4 | 2.4 | NO NC 1NO+1NC 2NO+2NC |
3TF31 | 20 | 12 | 7.5 | 5.5 | 7.5 | 1.9 | 3.3 | |
3TF32 | 30 | 16 | 12.5 | 7.5 | 11 | 3.5 | 6 | |
3TF33 | 30 | 22 | 16.5 | 10 | 15 | 4 | 6.6 | |
3TF34 | 55 | 32 | 24 | 15 | 22 | 7.5 | 13 | |
3TF35 | 55 | 38 | 24 | 18.5 | 22 | 9 | 15.5 | |
3TF40 | 20 | 9 | 7 | 4 | 5.5 | 1.4 | 2.4 | |
3TF41 | 20 | 12 | 7.5 | 5.5 | 7.5 | 1.9 | 3.3 | |
3TF42 | 30 | 16 | 12.5 | 7.5 | 11 | 3.5 | 6 | |
3TF43 | 30 | 22 | 16.5 | 10 | 15 | 4 | 6.6 | |
3TF44 | 55 | 32 | 24 | 15 | 22 | 7.5 | 13 | |
3TF45 | 55 | 38 | 24 | 18.5 | 22 | 9 | 15.5 | |
3TF46 | 80 | 45 | 40 | 22 | 37 | 12 | 20.8 | 2NC+2NO 4NC+4NO |
3TF47 | 80 | 63 | 60 | 30 | 55 | 14 | 24.3 | |
3TF48 | 100 | 75 | 60 | 37 | 55 | 17 | 29.5 | |
3TF49 | 100 | 85 | 80 | 45 | 75 | 21 | 36 | |
3TF50 | 160 | 110 | 95 | 55 | 90 | 27 | 46.9 | |
3TF51 | 160 | 140 | 120 | 75 | 110 | 35 | 60 | |
3TF52 | 200 | 170 | 160 | 90 | 150 | 38 | 66 | |
3TF53 | 210 | 205 | 165 | 110 | 160 | 50 | 86 | |
3TF54 | 300 | 250 | 230 | 132 | 220 | 58 | 100 | |
3TF55 | 300 | 300 | 260 | 160 | 250 | 66 | 114 | |
3TF56 | 400 | 400 | 380 | 200 | 355 | 81 | 140 | |
3TF68 | 630 | 630 | 600 | 335 | 560 | 160 | 278 |
