Product Specifications
| Prod Model: |
CT45-7B |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Travel Speed: |
4.4/2.7km/H |
| Swing Speed: |
11rpm |
| Bucket Digging Force: |
23.7 Kn |
| Type: |
Wheel Excavator |
| Size: |
Medium-Sized |
| Certification: |
ISO9001: 2000 |
| Condition: |
New |
Product Description
CT45-7A EXCAVATOR:
American made engine A23W00
Power 32KW/2200RPM, a guarantee of super power
In conformity with the EU III emission control regulations
Imported hydraulic system with dual pump and dual circuit
Guarantee for 3 yrs under normal use and maintenance
Imported hydraulic components, Japan made KYB main pump, multi-circuit valve, swing motor, walking motor, South Korea made gasoline tank
America made engine CUMMINS A2300(4-88X94)
On-line digital monitoring and control system
GPS satellite position(optional)and remote diagnose system(optional)
Light and handy pilot operating system
Cold&warm air conditioner supply under different kinds of weather conditions
Rubber pedrail or steel pedrail

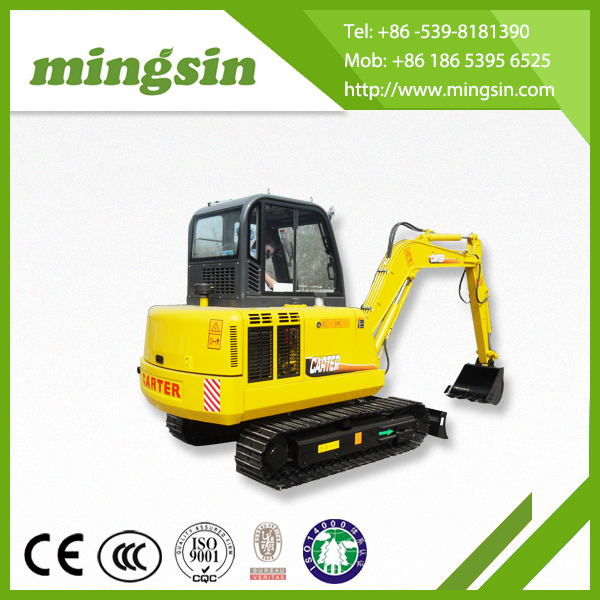

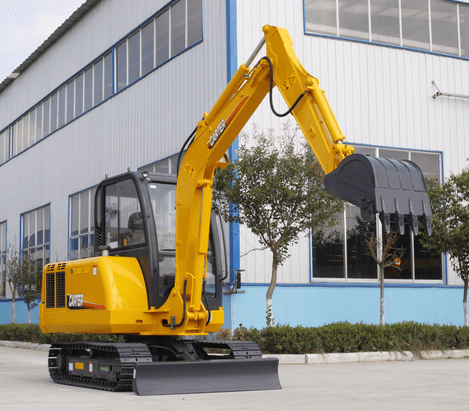

CT45-7B EXCAVATOR:
Japan made engine YANMAR 4TNV88
Power 27.1KW/2200RPM, a guarantee of super power
In conformity with the EU III emission control regulations
Imported hydraulic system with dual pump and dual circuit
Guarantee for 3 yrs under normal use and maintenance
Imported hydraulic components, Japan made KYB main pump, multi-circuit valve, swing motor, walking motor, South Korea made gasoline tank
On-line digital monitoring and control system
GPS satellite position(optional)and remote diagnose system(optional)
Light and handy pilot operating system
Cold&warm air conditioner supply under different kinds of weather conditions
Rubber or steel pedrail
| Model | CT45-7A | CT45-7B |
| Operating weight | 3.900 KG | 4.200 KG |
| Travel speed | 4.4/2.7km/h | 4.4/2.7km/h |
| Bucket Capacity | 0.14-0.18m3(SAE) | 0.17m3(SAE) |
| Tracking force | 34.1kn | 34.1kn |
| Engine power | [email protected] | [email protected] |
| gradeability | 30°(58%) | 30°(58%) |
| Swing speed | 11RPM | 11RPM |
| Bucket digging force | 23.7 kn | 23.7 kn |
| Ground Pressure | 33KPa | 38.7 KPa |
| Arm digging force | 18.5 kn | 20.4 kn |
DIMENSIONS
| Model | CT45-7A | CT45-7B |
| Boom Length | 2.650 mm | 2.650 mm |
| Arm Length | 1.600 mm | 1.450 mm |
| Upperstructure width | 1.500 mm | 1.600 mm |
| Undercarriage width | 1.630 mm | 1.750 mm |
| Overall Height with cabinet | 2.455 mm | 2.455 mm |
| Rear swing radius | 1.600 mm | 1.600 mm |
| Clearance under counter weight | 585 mm | 585 mm |
| Tumbler Distance | 1.710 mm | 1.710 mm |
| Ground clearance | 350 mm | 350 mm |
| Overall length for transportation | 5.560 mm | 5.500 mm |
WORKING RANGE
| Model | CT45-7A | CT45-7B |
| MAX digging radius | 5.720 mm | 5.530 mm |
| MAX digging radius at ground lever | 5.610 mm | 5.420 mm |
| MAX digging depth | 3.700 mm | 3.4050 mm |
| MAX vertical wall digging depth | 3.200 mm | 2.900 mm |
| MAX digging height | 5.050 mm | 5.030 mm |
| MAX dumping height | 3.500 mm | 3.410 mm |
| MAX dozer cutting depth | 380 mm | 380 mm |
| MAX dozer lifting height | 255 mm | 255 mm |
HYDRAULIC SYSTEM
| Model | CT45-7A | CT45-7B |
| MAIN PUMP | AXIAL PISTON PUMP & GEAR PUMP | AXIAL PISTON PUMP & GEAR PUMP |
| CONSTANT POWER VARIABLE DISPACEMENT WITH GEAR PUMP OVERRIDE CONTROL | CONSTANT POWER VARIABLE DISPACEMENT WITH GEAR PUMP OVERRIDE CONTROL |
| FLOW/PRESSURE 45.8*2+37 l/MIN @ 2.200 RPM / 21MPA | FLOW/PRESSURE 45.8*2+37 l/MIN @ 2.200 RPM / 22MPA |
| PILOT PUMP | TYPE | TYPE |
| GEAR PUMP | GEAR PUMP |
| FLOW/PRESSURE 10.8 L/min @ 2.200 rpm / 3.9 mpa | FLOW/PRESSURE 10.8 L/min @ 2.200 rpm / 4.9 mpa |
| SWING MOTOR | SWING MOTOR |
| setting pressure 18MPA | setting pressure 18MPA |
| ATTACHMENTS | ATTACHMENTS |
| over load pressure | over load pressure |
| BOOM / ARM | BUCKET 24 MPA | BUCKET 24.5 MPA |
