Product Specifications
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Coil Structure: |
Toroidal |
| Coil Number: |
Three-Phase Two-Winding |
| Oltctap Changer: |
Oltc,Nltc |
| Certificates: |
Ctqc, CE, ISO9001, ISO14001, Cesi,Kema, |
| Phase: |
Three |
| Coil: |
Core-type Transformer |
| Cooling Method: |
Oil-immersed Type Transformer |
| Winding Type: |
Two-winding Transformer |
| Application: |
Lighting |
Product Description
Summary

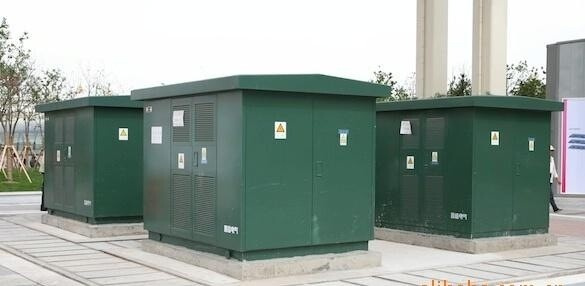

The product consists of HV distribution unit, and LV distribution unit and is divided into HV chamber, transformer chamber and LV. The HV chamber has complete functions, it with HXGN-10 ring main unit forms the primary supply system, may be arranged into several supply modes( ring main supply, terminal supply and dual-source supply) and also may be provided with HV metering elements to meet requirements on HV metering. Model S9, S11 and other low loss oil-immersed transformers or dry transformers else may be selected. The transformer chamber is designed to have automatic forced air cooling system and lighting system. The LV chamber can constitute user-required power supply schemes in a panel type or cabinet type structure, provide several functions (Power distribution, lighting distribution reactive power compensation, and metering of electrical power) to meet users' different requirements. And facilitate supply management and improve power supply quality.
Application of products
This products have following characters: Serialization, modularization, multiple functions, complete facility, small volume, light weight and good looking. They meet the requirement of IEC1330 standard and applicable to city public distribution, street lamp power supply, as well as power consumption in industrial /mineral enterprises, high-rises, residential areas, oil fields, jetty and site construction.
Structure feature
It adopts both natural ventilation and forced ventilation to each good ventilation and cooling effects. The transformer chamber and LV chamber are provided with air ducts. The blower fan has a temperature controller to automatically start and stop as per the preset temperature, thus ensuring on load running of transformer.
The casing body prevents rain water and foreign matter from entrance and it is made of hot-galvanized color steel sheet or anti-rust aluminum alloy sheet and subjected to anti-corrosion treatment. It looks artistic, keeps long-term corrosion, water and dust-proof under outdoor conditions, and prolong service life or transformer.
Main Technical Parameters
|
Capacity Range |
Voltage Range |
Tap Changer |
Cooling System |
Other technical parameter |
|
OLTC |
NLTC |
|
50-3000KVA |
Up to 35KV |
MR,ABB,HM |
Others |
ONAN/ONAF |
IEC,ANSI,IEEE or relevant standard |
Shenda International Engineering Co., Ltd. is a professional player in transformer industry, which established in Oct. 2000, located in Zhejiang province of China, holds two production bases and seven sales companies. We always focus on the R&D, have been appointed as a manufacturer of transformers at 330KV levels and below by National Electric Power Corp and Mechanical Industry Union. "EACHER" has been awarded "Famous Brand of Zhejiang Province".
Our annual total production capacity is about 18, 000, 000 kVA, our factory covers an area of 370, 000 square meters and a building area of 100, 000 square meters, with total assets of 350 million CNY and more than 1000 staff members with engineering and technical employees accounting for 21%.
Our main products include 330kV and below&200MVA and below oil immersed power transformers, 110kV and below furnace transformers, 110kV and below rectifier transformers, 35kV dry type transformers, 35kV combined transformer substation, 35kV and below amorphous alloy transformer, 35kV and below reactor etc. All of our products' performance measures up to the standards established by International Electric Committee (IEC).
We have imported many advanced production and testing facilities from Germany and Japan, such as silicon sheet shearing automatic lines, automatic and continuous extrusion lines of electromagnetic wires, Kerosene vapor vacuum drying systems and more than 1, 500 sets of production and complete testing systems for professional transformer production and other testing equipment. We can meet the requirements of customers completely.
There are type test report of CESI Short Circuit Test Report 100MVA/220KV and KEMA Test Report-50MVA/69kV in our company
