New Diesel Machinery Co., Ltd. >> Cummins Engine for Generator Set (4BTA3.9-G11)

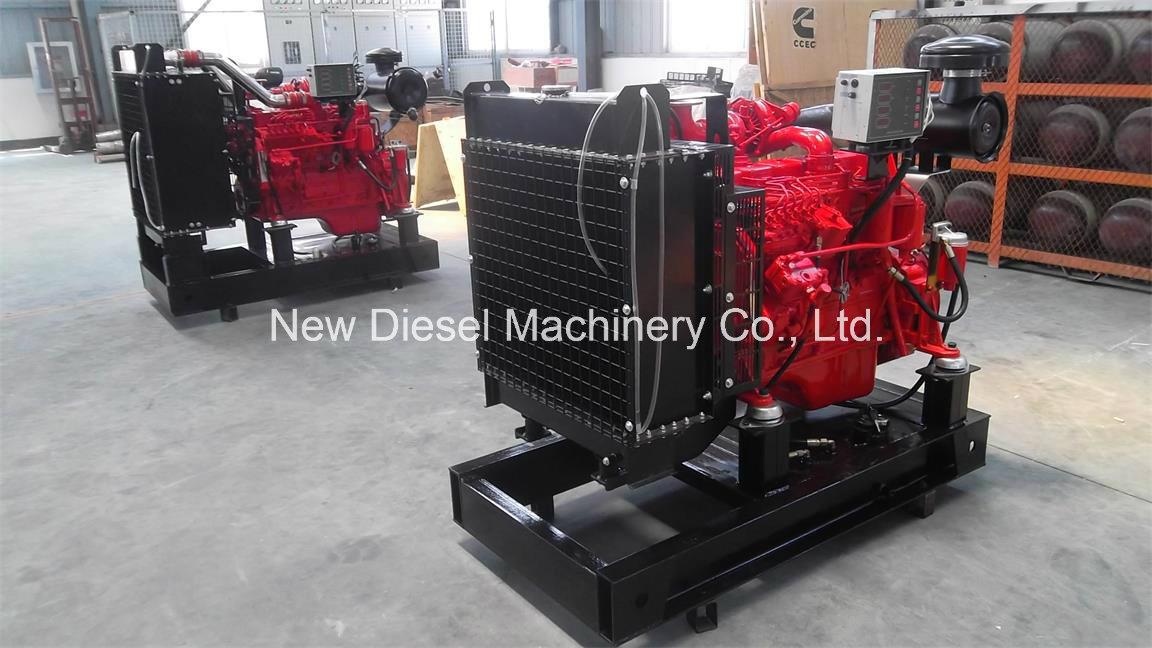

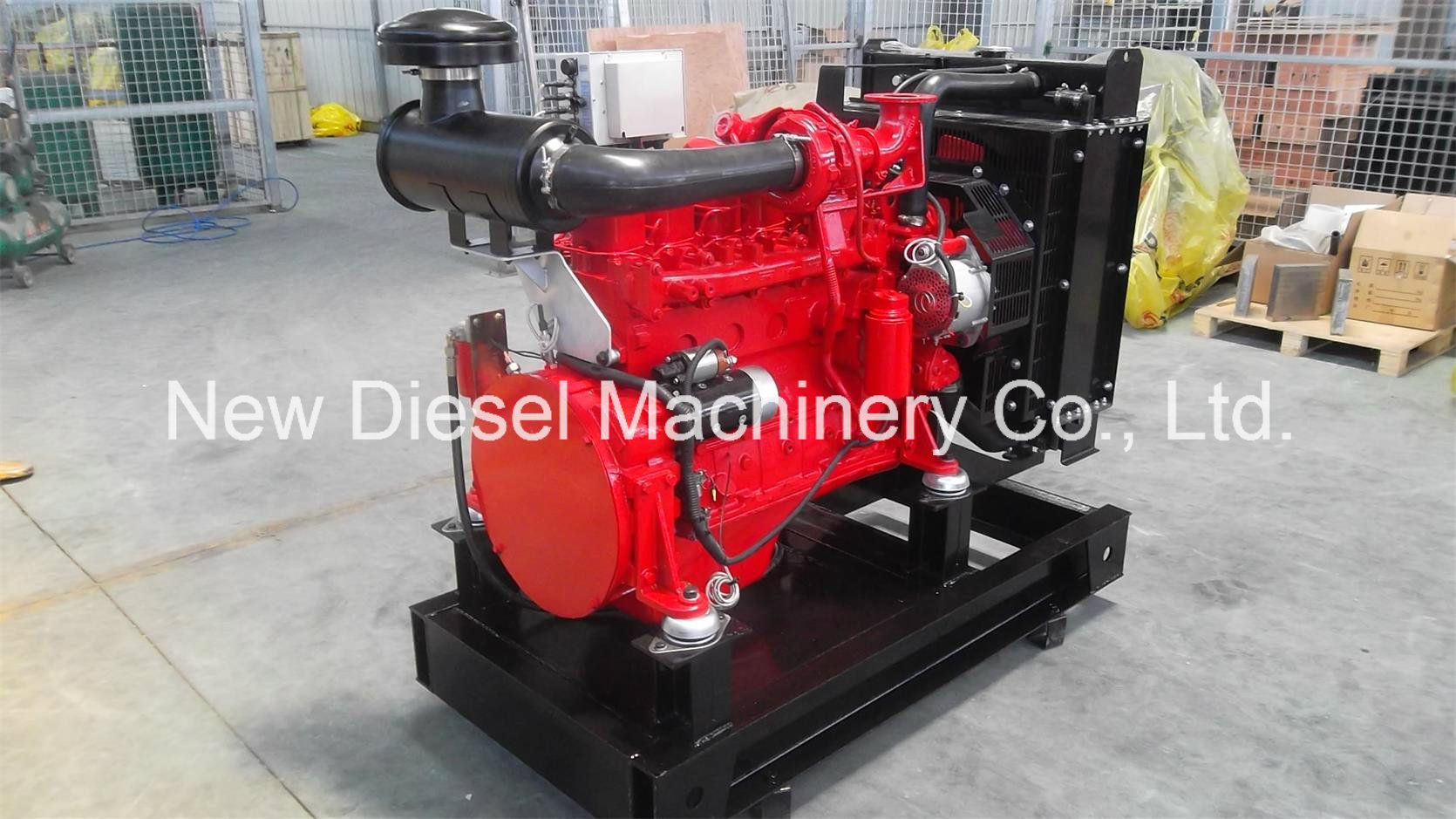

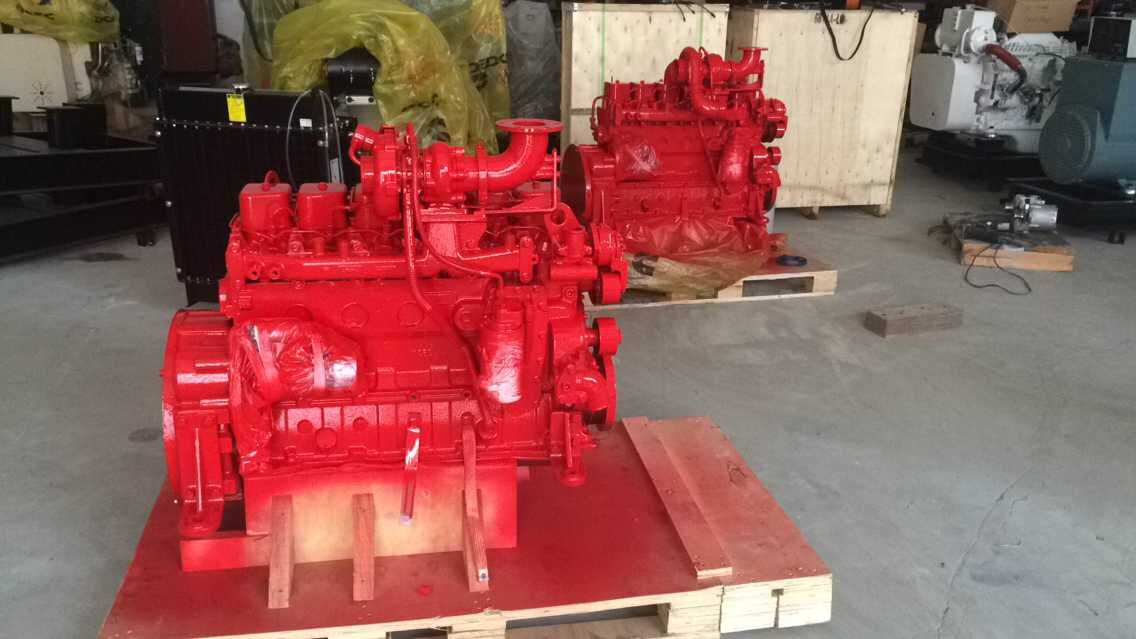

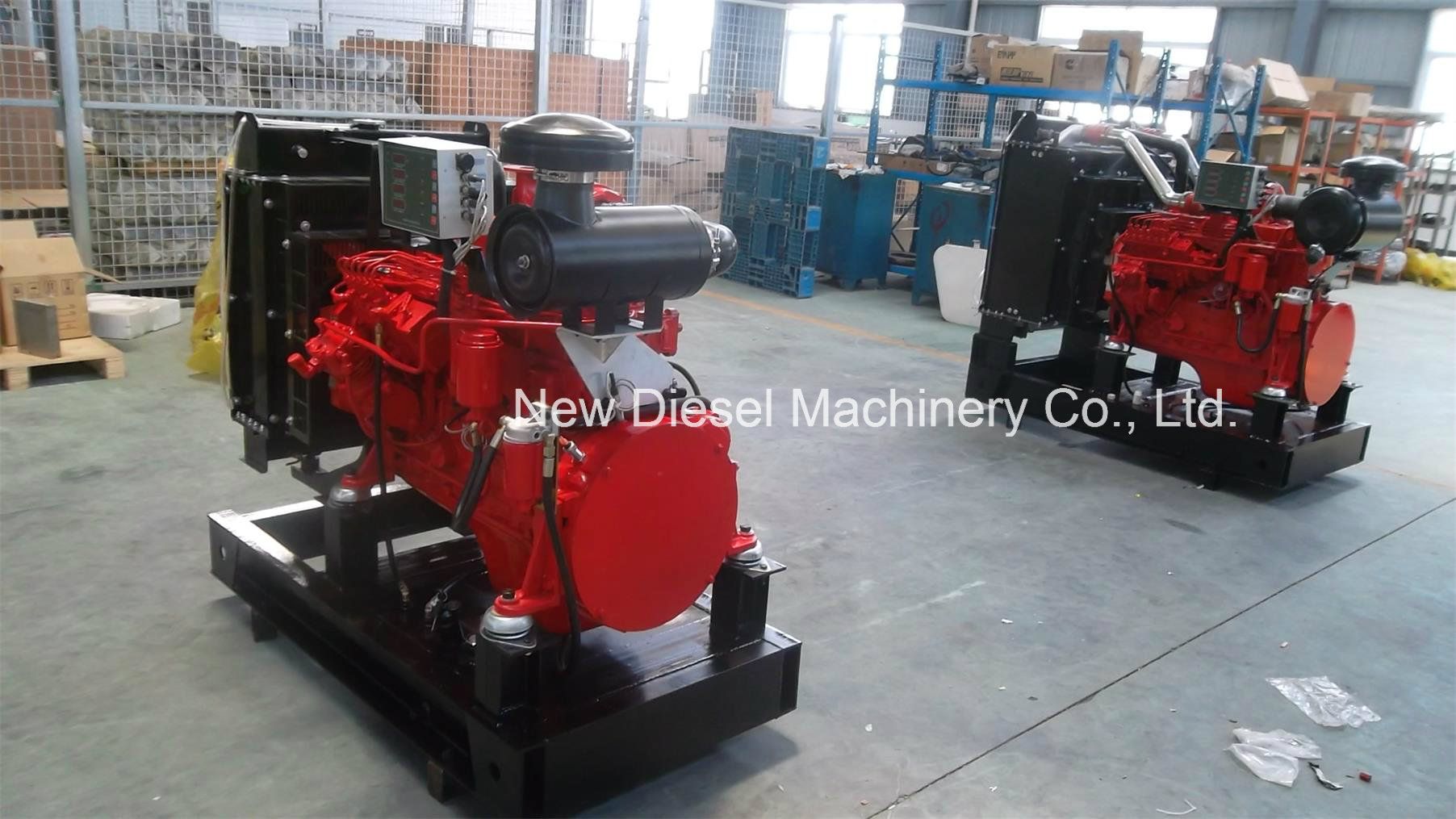

Cummins Engine for Generator Set (4BTA3.9-G11)

Name: Cummins Engine for Generator Set (4BTA3.9-G11)
Brand: China-Manufacturer-Directory.com
SKU: 702917512
Availability: InStock
Rating: 4.9 (35 reviews)

Supplier:	New Diesel Machinery Co., Ltd.
Price:	US $ 6500/Piece
Min Order:	1/Piece
Quantity::
Trade Terms:	FOB,CFR,CIF

Product Specifications

Prod Model:	4BTA3.9-G11
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Running Speed:	1800rpm/1500rpm
Capacity:	80kw/70kw
Fuel:	Diesel Engine

Product Description

Cummins diesel engine/engine/cummins engine supplier: Shanghai new diesel machinery co; Ltd can provide cummins engine 6BTA/cummins engine6BTA5.9/cummins engine6BTA5.9-G2(cummins diesel engine6bta
Engine Technical Datasheet
6\4\ In-line, 6 Cylinder, 4 Cycle, Turbo Diesel Engine
× Bore× Stroke 102mm× 120mm
Displacement 5.9 Liters
Compression Ration 17.0: 1
Cummins engine 6BTA/cummins engine6BTA5.9/cummins engine6BTA5.9-G2(cummins diesel engine6bta5.9)
Rated Speed 1500r/min(1800r/min)
Rated Power 70kW(80kW)
Standby Power 80kW(90kW)

6 \ 4 \ In-line, 4 Cylinder, 4 Cycle, Turbo Diesel Engine
× Bore × Stroke	102mm × 120mm
Displacement	3.9 Liters
Compression Ration	16.5 : 1
Rated Speed	1500r/min(1800r/min)
Rated Power	70kW(80kW)
Standby Power	80kW(90kW)
Genset Matching Power	65kW(65kW)
Fuel Injection Pump	AD AD Injection Pump
Governor	Electrical Governor RSV RSV Mechanical Governor
Steady Speed Droop	≤ 1% ( Electrical Governor ) ≤ 6% ( Mechanical Governor )
Lubricant Capacity	16 16 Liters
Coolant Capacity	14 ( ) 14 Liters ( Engine Only )
Net Weight	425 425kg
Wet Weight	450 450kg
Overall Dimension(L × W × H)	996mm × 711mm × 992mm
Coolant Intake Size	Φ 58mm
Coolant Outlet Size	Φ 45mm
/ Flywheel/Flywheel Housing	SAE3#/SAE3# or SAE2#/SAE2#
Cooling Way	Positive Water Cooling Cycle

New Diesel Machinery Co., Ltd. Has more than ten years experience in complete engine, power generator set, engine pump sets and spare parts.

We are the OEM factory of China Cummins(such as B series engines, C series engines, L series engines, and N series, K series, ISBe, ISDe, ISCe, ISLe etc. ); DEUTZ/KHD(912 series, 913 series, 413/513 series, TBD series, and 1013 series, 1015series, D302 series and so on ), ISUZU(4JB1, 4JA1 etc ), PERKINS(1003, 1004 series), CATERPILLAR(3306 series ), SOFIM and so on. With years experience, we also can supply power unit for the engine, design according to customer's special needs.

Meanwhile we manufacture power generator set (marine generator set /industrial generator set ) &engine pump set for all the customer over the world.

Our Goal: Customer-oriented service and quality products.

Our Tenet: Honest, Professional, and innovation-seeking.
