Cummins Series Diesel Generator Set Industrial Diesel Generator (GF1-65kVA)

Name: Cummins Series Diesel Generator Set Industrial Diesel Generator (GF1-65kVA)
Brand: china-manufacturer-directory.com
SKU: 674758835
Availability: InStock
Rating: 4.4 (132 reviews)

Supplier:	Changzhou Hi-Earns Mechanical & Electrical Co., Ltd.
Price:	Negotiable/Piece
Min Order:	1/Piece
Quantity::
Trade Terms:	FOB,CFR,CIF

Product Specifications

Prod Model:	GF1-65KVA
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Engine Model:	Dcec Cummins 4BTA3.9-G2
Engine Power:	88.4HP
Engine Speed:	1500rpm
Engine Cylinder:	4 in Line
Generator Output:	65kVA
Stroke:	Four Stroke
Type:	Self-Starting Diesel Generator
Cooling Method:	Water Cooling
Installation Method:	Portable
Output Type:	AC Three Phase

Product Description

65KVA open frame cummins generator set(GF1-65KVA)

1)Cummins engine, Stamford/Engga/Marathon alternator

2)Low fuel consumption

3)Good quality and after service

4)Silent type or openframe type are choosed by you

5)Also different famous water-cooled diesel engine can be choosed by you like

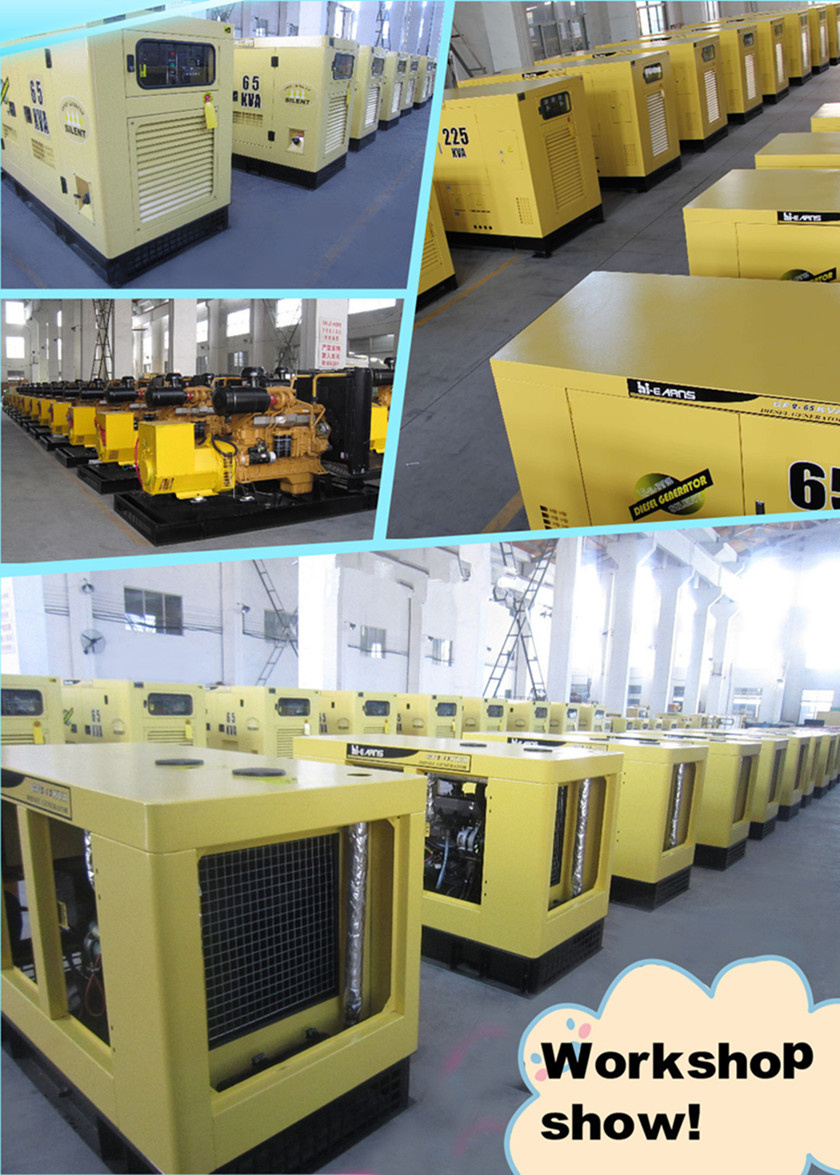

Workshop show:

Air-cooled diesel generator main product:

We are professional manufacture of diesel engine(4-22HP), diesel generator(1.8-1000KW), diesel water pump(1.5-4INCH), small construction machine and so on.
Just send us your inquiry with what u need, we will highly appreciate it!

MODEL				GF- 65KVA
Standby Power (50HZ )				54KW / 68KVA
Prime Power (50HZ )				50KW / 63KVA

Voltage	Frequency	Phase	P.F	Standby Amps	Standby Ratings	Prime Ratings
440/254	50	3	0.8	89	54/68	50/63
415/240	50	3	0.8	94	54/68	50/63
400/230	50	3	0.8	97	54/68	50/63
380/220	50	3	0.8	103	54/68	50/63
Standby Power Rating(ESP):The standby power rating is applicable for supplying emergency power for the duration of a utility power interruption.No overload,utility parallel or negotiated outage operation capability is available at this rating.
Prime Power(PRP) : Prime power is available for an unlimited number of annual hours in variable load application,in accordance with GB/T2820-97 (eqv ISO8528);A 10% overload capability is available for a period of 1 hour within a 12-hour period of operation.
ENGINE DATA
Engine Type / :				DCEC Cummins 4BTA3.9-G2,4-cycle
Air Intake System :				Turbo,Water/Air DC
Fuel System :				AD type fuel pump AD
Fuel Consumption ( ≤ g/kw.h)				≤ 216
Cylinder Arrangement :				4 in line
Displacement :				3.9L
Bore×Stroke × :				102×120(mm)
Compression Ratio :				16.5:1
Rated RPM :				1500rpm
Max.Standby Power at Rated RPM :				65KW / 88.4HP
Governor Type :				Electronic Speed Control System
Max Water Temperature :				100
ALTERNATOR DATA
General Data
Compliance with GB755,BS5000,VDE0530,NEMAMG1-22,IED34-1,CSA22.2 and AS 1359 standards. GB755,BS5000,VDE0530,NEMAMG1-22,IED34-1,CSA22.2 and AS 1359 .
Alternator Data
Number of Phase :				3
Connecting Type :				3 Phase and 4 Wires,"Y" type connecting
Number of Bearing :				1
Power Factor :				0.8 Lag
Protection Grade :				IP23
Altitude :				≤ 1000m
Exciter Type :				Brushless,self-exciting
Insulation Class,Temperature Rise				H/H
Telephone Influence Factor(TIF) :				< 50
THF :				< 2%
Voltage Regulation,Steady State :				≤ ±1%
Alternator Capacity :				62KVA
Alternator Efficiencies :				88.80%
Air Cooling Flow :				0.216m3/s
Dimension & Weight
Open Type				Soundproof Type
Overall Size :1.80(m)×0.75(m)×1.45(m)				Overall Size :2.40(m)×1.00(m)×1.45(m)
Weight : 930 kg				Weight : 1450kg
