Hangzhou Ualloy Material Co., Ltd. >> Cuni6 (NCO10) Alloy Strip/Low Resistance Alloy Strip

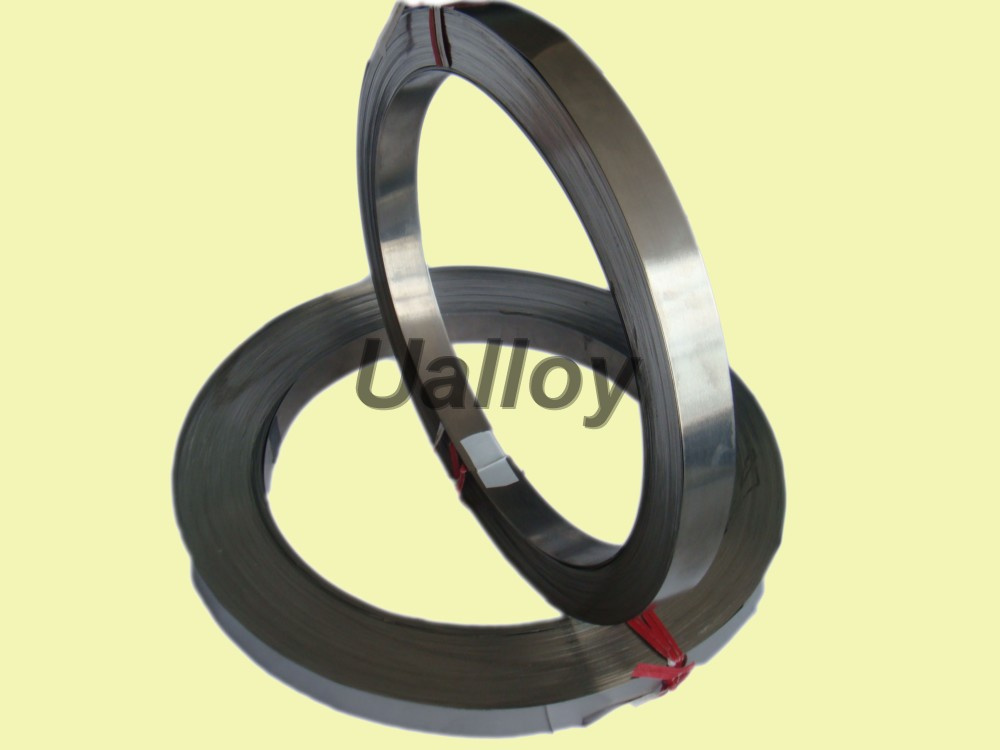

Cuni6 (NCO10) Alloy Strip/Low Resistance Alloy Strip

Name: Cuni6 (NCO10) Alloy Strip/Low Resistance Alloy Strip
Brand: china-manufacturer-directory.com
SKU: 697288415
Availability: InStock
Rating: 4.5 (113 reviews)

Supplier:	Hangzhou Ualloy Material Co., Ltd.
Price:	US $ 20KG
Min Order:	20kg
Quantity::
Trade Terms:	FOB

Product Specifications

Prod Model:	CuNi10
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
GB:	Nco10

Product Description

Constantan Ribbon/Constantan Flat Wire/Copper Nickel Alloys
Chemical Composition: 94 Copper, Nickel 6
Electrical Resistivity: 0.1 ohm mm2/m
Shape: Strip/Sheet/Tape
Dimension: Thickness 0.03mm-3mm
Width: 6mm-150mm
Corrosion protection and porcessing Material: CuNi10Fe, CuNi19, CuNi23, CuNi25, CuNi30MnFe, CuNi30Fe2Mn2 in form of strip/plate

Resistance material: CuNi1, CuNi2, CuNi2Si, CuNi4, CuNi6, CuNi10, CuNi23Mn, CuNi25, CuNi30Mn, CuNi44, CuMn12Ni in form of wire and strip

Characteristic	Resistivity ( 20° C μ Ω . m)	Max. working Temperature ( ° C)	Tensile Strength (Mpa)	Melting point (° C)	Density ( g/cm3)	TCR x10-6/ ° C (20~60 )	EMF vs Cu (μ V/ 0C) (0~100 0C)
Alloy Nomenclature	Resistivity ( 20° C μ Ω . m)	Max. working Temperature ( ° C)	Tensile Strength (Mpa)	Melting point (° C)	Density ( g/cm3)	TCR x10-6/ ° C (20~60 )	EMF vs Cu (μ V/ 0C) (0~100 0C)
NC003 (CuNi1)	0.03	200	210	1085	8.9	< 100	-8
NC005 (CuNi2)	0.05	200	220	1090	8.9	< 120	-12
NC010 (CuNi6)	0.10	220	250	1095	8.9	< 60	-12
NC012 (CuNi8)	0.12	250	270	1097	8.9	< 57	-22
NC015 (CuNi10)	0.15	250	290	1100	8.9	< 50	-25
NC020 (CuNi14)	0.20	300	310	1115	8.9	< 30	-28
NC025 (CuNi19)	0.25	300	340	1135	8.9	< 25	-32
NC030 (CuNi23)	0.30	300	350	1150	8.9	< 16	-34
NC035 (CuNi30)	0.35	350	400	1170	8.9	< 10	-37
NC040 (CuNi34)	0.40	350	400	1180	8.9	0	-39
NC050 (CuNi44)	0.49	400	420	1200	8.9	< -6	-43

Hangzhou Ualloy Material Co., Ltd is a high-tech enterprise which specialized in making all kinds of alloy strip such as high resistance alloy, low-resistance copper nickel alloy, precision alloy, FeCrAl alloy for exhaust purifier.

HangZhou Ualloy Material Co., Ltd have a full production line from melting, surface cleaning, rolling and slitting, full set of testing machine and can meet all kinds of technical requirement from customer. Our product is widely used in heating equipment, big steel mill, mineral, electrical equipment, food machinery, auto industry, aerospace industry. Our product not only is popular in domestic market, but also been exported to all over the world.

Our company aims to be the best-quality alloy strip producer in the world. We insist on developing the more advanced alloy strip technology, to serve all the customer, improve people's living level, make a more green earth in the future.
