Product Specifications
| Prod Model: |
BJHCS-LTS3 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Usage: |
Oil Pressure Sensor |
Product Description

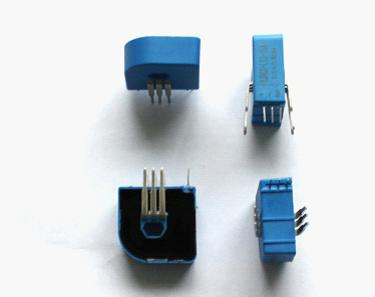

BJHCS-LTS3 series of closed-loop magnetic sensor is based on the principle of a balanced current sensor, can measure DC, AC, pulse, and various irregular current. Sensor output can be a true reflection of the true wave power conductor.
|
Product Characteristics |
Applications |
|
· High accuracy · Very good linearity · Small PCB mounting · Low power consumption · Good over-current capability |
· Frequency drive control home appliances · Solar power management system · Inverter Applications · UPS uninterruptible power supply · Current monitoring |
ELECTRICAL CHARACTERISTIC
|
|
BJHCS-LTS3-6A |
BJHCS-LTS3- 15A |
BJHCS-LTS3-25A |
BJHCS-LTS3-50A |
|
Nominal r. m. s current IPN(mA) |
6A |
15A |
25A |
50A |
|
Measuring range IP(mA) |
12A |
30A |
50A |
84A |
|
Sampling resistor |
100Ω |
50Ω |
50Ω |
25Ω |
|
Coil turns |
960± 1 |
1200± 1 |
2000± 2 |
2000± 2 |
|
Rated output |
0.625V± 0.5% |
0.625V± 0.5% |
0.625V± 0.5% |
0.625V± 0.5% |
|
Supply voltage |
+3.3VDC ± 5% |
|
Isolation voltage |
50Hz, 1min, 3kV |
|
Impulse withstand voltage |
1.2/50µ s, > 8kV |
DYNAMIC CHARACTERISTICS
|
Offset voltage at +25 ° C |
1.65 |
V |
|
Zero offset voltage at +25 ° C |
20 |
mV |
|
Offset voltage drift |
≤ ± 0.5 |
mV/° C |
|
Linearity error |
≤ 0.1 |
%FS |
|
Accuracy |
± 0.7 |
% |
|
Accurately followed di/dt |
> 50 |
A/µ s |
|
Response time tr |
< 1 |
µ s |
|
Bandwidth (-1db) |
DC ~ 200 |
kHz |
|
Creepage distance (shell) |
15.4 |
mm |
GENERAL CHARACTERISTIC
|
Operating temperature |
-40 ~ +85 |
° C |
|
Storage temperature |
-40 ~ +125 |
° C |
|
Static power |
10 |
mA |
|
Actual weight |
10 |
g |
OTHERS
|
Certification |
CE |
|
Quality System |
ISO9000 |
|
ISO14001 |
