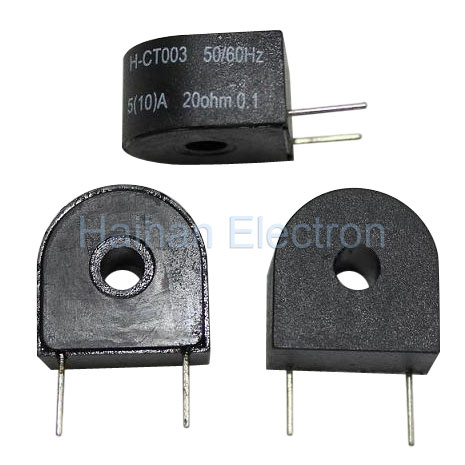

Product Specifications
| Prod Model: |
H-CT003A |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Model: |
H-CT003A |
| Current Ratio: |
5(10)a/2.5mA |
| Rate Primary Current: |
5A |
| Max Primay Current: |
10A |
| Secondary Current: |
2.5mA |
| Turn Ratio: |
1:2000 |
| Burden Resistance: |
20 Ohm |
| Accuracy: |
0.1class |
| Max Linerity Current: |
50A |
| Manufacturer: |
Jiaxing Haihan Electron Co.,Ltd |
| Application: |
Lighting |
| Type: |
Current Transformer |
| Phase: |
Three Phase and Single Phase |
Product Description
1, Mainly Feature
1), All enclosed design, good performance of mechanical and insulation.
2), Pin design, easy to installate in PCB.
3), This series of CTs have small size that can be used as separate.
4), Leaner output with high accuracy current.
5), Smalll size, light weight, standard hole easy to installation.
2, Application
1), Energy meter, power transducer, precision power meter and energy monitoring devices.
2), Over current protection circuit of moter and other electrical appliances.
3), Sensing overload current.
4), Ground fault detection.
5), Analog to digital circuit.
Model
| Rate Current | Max Current | Secondary Current | Coil Ratio | Burden Resistance | Accuracy | Temperature | Humidity |
H-CT003A
| 5A | 10A | 2.5mA | 1: 2000 | 20Ω | 0.1Class | - 40~+70º C | ≤ 95% |
Jiaxing Haihan Electronic Co., Ltd was established in 2011, We are a professional in designing and manufacturing electricity energy meter accessory and hotel supply.
Mainly electricity meter accessory including: Current transformer, stepper motor counter, Manganin shunt, magnetic latching relay, electricity energy meter case, DIN-Rail Watt-hour meter and precision components, Hotel utensil including: Hotel minibar, safe box and wine cooler.
Outstanding employees, advanced technology, superior equipment, and strict management are pivotal to a company's development and to win customers' trust on its products. "Accurate, reliable, and professional" is our belief in producing and servicing.
Since the establishment, It has been absorbing the advanced technology at home and abroad. At the same time we are also learning experience from the whole electronic industry, so we are producing products with precision, stability, reliability leading in Chinese market. With the advanced technology, excellent quality, perfect service, our products are selling through all around the world.
Jiaxing Haihan Electron Co., Ltd provides professional pre-sale, sale, after sale service which has won our customers' trusts and praises from domestics and overseas. We are focusing on the innovation of technology, the quality of management, and the improvement of services in different levels to achieve our development.
We are actively involved in activities of promoting and exchanging. During the long-term development the company will perfect the quality and performance of products, the technology, and establish long-term friendly cooperation relationship with companies from all around the world. We sincerely welcome all customers at home and abroad to visit our company and exchange the technology.
