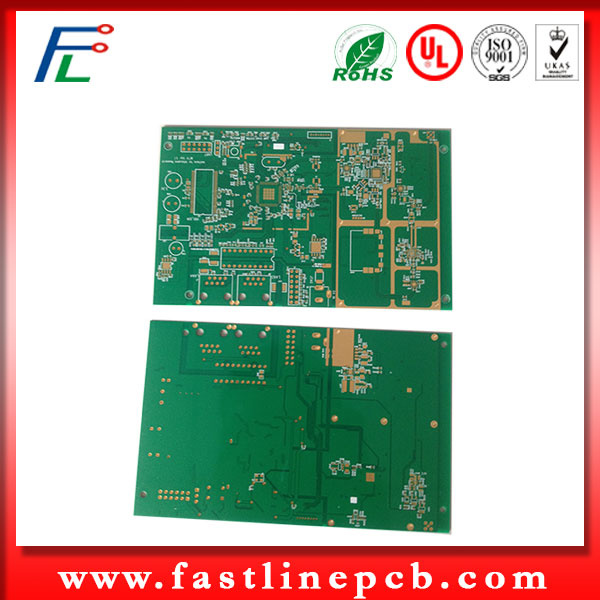

Custom Prototype Double Sided Circuit Board

Name: Custom Prototype Double Sided Circuit Board
Brand: China-Manufacturer-Directory.com
SKU: 764334375
Availability: InStock
Rating: 4.4 (102 reviews)

Supplier:	Fastline Circuits Co., Limited
Price:	US $ 0.12-0.21/Piece
Min Order:	1/Piece
Quantity::
Trade Terms:	FOB,EXW

Product Specifications

Prod Model:	FL935
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Board Thickness:	1.6mm
Copper Thickness:	1oz
Material Type:	Fr4
Surface Treatment:	HASL Lead Free
Solder Mask:	Green, Red, Blue, Black
Silk Screen Color:	White
Board Layer:	2 Layer
Shipping Type:	DHL, UPS, TNT, EMS, FedEx etc
Packing Type:	Carton + Vacumm
Lead Time:	5-7 Days
Type:	Rigid Circuit Board
Dielectric:	FR-4
Material:	Fiberglass Epoxy
Flame Retardant Properties:	V1
Base Material:	Fr4
Brand:	Fastline

Product Description

Product Description
Parameter & Data Sheet

Size of PCBA	8/0X 142.27mm
Number of Layers	4
Board Type	PCBA
Board Thickness	1.6mm
Board Material	FR-4 1.6mm
Board Material Supplier	Shengyi
Tg Value of Board Material	60ºC

PTH Cu thickness	≥20 µm
Inner Iayer Cu thicknes	35 µm
Surface Cu thickness	35 µm

Coverlay Colour	Yellow Coverlayer / Green solder mask
Number of Coverlay	2
Thickness of Coverlay	25 µm
Stiffener Material	no
Stiffener Thickness	N/A

Type of Silkscreen Ink	IJR-4000 MW300
Supplier of Silkscreen	TAIYO
Color of Silkscreen	White
Number of Silkscreen	2

Peeling test of Coverlay	No peelable
Legend Adhesion	3M 90ºC No peeling after Min. 3 times test

Surface Finish	Immersion Gold
Thickness of Nickle/Gold	Au: 0.03µm(Min.); Ni 2-4µm
RoHS Required	Yes
Famability	94-V0

Thermal Shock Test	Pass, -25ºC±125ºC, 1000 cycles.
Thermal Stress	Pass, 300±5ºC,10 seconds, 3 cycles. No delamination, no blistering.
Function	100% Pass electrical test
Workmanship	Compliance with IPC-A-600H & IPC-6013C Class 2

FR4 products show

High requency PCB assembly

FR4 PCB Assembly

Blind holes PCB assembly

PCBA@Machine Capability

Assembly line

FAQ

Q1: What's your minimum order quantity?
A1: Our MOQ is not the same based on different items. Small orders are also welcome.

Q2: what file we should offer?
A2: PCB:Gerber file is better,( Protel ,power pcb,PADs file), PCBA : Gerber file and BOM list.

Q3: What any other information should be offered except for file?
A3:Following specifications are needed for quotation:
a) Base material
b) Board thickness:
c) Copper thickness
d) Surface treatment:
e) color of solder mask and silkscreen
f) Quantity

Q4: I am very satisfied after I read your information, how can I start to purchase my order?
A4: Please send email to me or send trade massage to me .

Fastline is a Leading PCB manufacturer in China. It was found in 2003, serving customers in over 40 countries from various electronic industries, Over 70% of products are exported to America, Europe and other Asia Pacific countries.

Fastline could meet all your PCB manufacturing needs, including High multilayer PCB, Aluminum based PCB, HDI PCB, Rigid-flex PCB, heavy copper PCB, and PCB assembly as well. Our products are widely applied in telecom, industrial control, power electronics, medical instrument, security electronics, aerospace and so on.

And provides "PCB One-stop PCB solution" to meet customers' diverse demands.

Our factories with a facility area of more than 40, 000 square meters with 1000 professional staff, And we have got the approval of ISO9001 certificates. ULCertification and all Products Meet RoHS compliance.

Fastline Circuits is commited to provide superior quality products and services that consistently meet and exceed our customers requirements on time, every time!
