| Supplier: | Fastline Circuits Co., Limited |
|---|---|
| Price: | US $ 0.13-0.22/Piece |
| Min Order: | 1/Piece |
| Quantity:: | |
| Trade Terms: | FOB |
|
|
| Prod Model: | FL013 |
|---|---|
| Markets: | North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Board Material: | Fr4 Tg150 |
| Board Layer: | 2 |
| Board Thickness: | 1.6mm |
| Copper Thickness: | 1 Oz |
| Max PCB Size: | 650*650mm |
| Min Hole: | 0.15mm |
| Min Trace: | 0.15mm |
| Surface Finishing: | Enig |
| Solder Mask: | Any |
| Lead Time: | 4-5 Working Days |
| Type: | Rigid Circuit Board |
| Dielectric: | FR-4 |
| Material: | Fiberglass Epoxy |
| Flame Retardant Properties: | V0 |
| Base Material: | Fr4 |

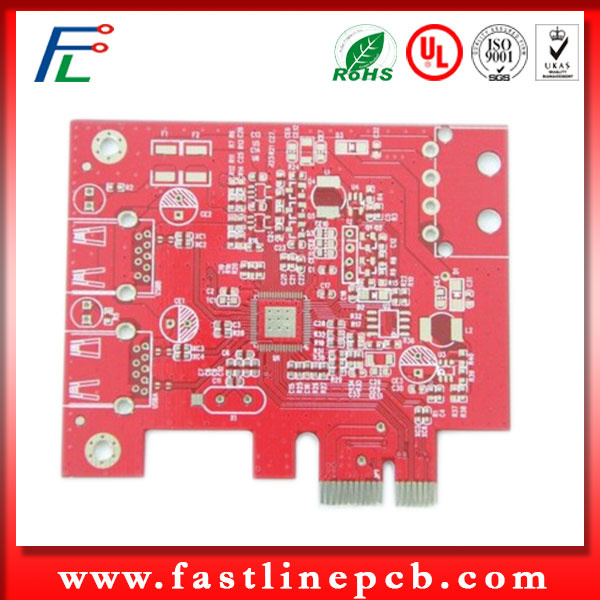

Customized ENIG Fr4 PCB Circuit Board with UL approved
PCB advantages:
1. R&D team support
2. UL, RoHS,ISO9001,SGS
3. IPC class2
4. Advanced production line and promtly delivery.
5. Honest Credibility in China.
6. Professional and abundant experience in PCB.
7. Competitive price and good quality.
8. Excellent after-sales service.
9. 1-26 layers PCB capability
10. 100% test

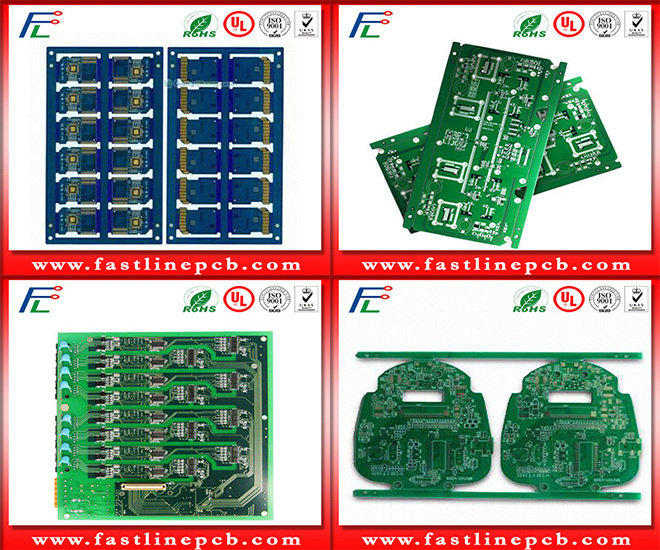

PCB product showcase:
PCB application:

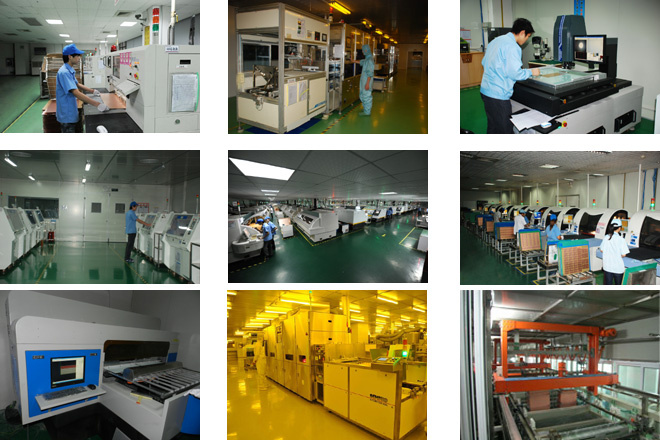

PCB production line:
| PCB Manufacture Capability | |
| Item | Manufacture Capability |
| Layers | 1-26 Layers |
| HDI | 2+N+2 |
| Material Types | Fr-4, Fr-5, High-Tg, Aluminum Based , Halogen Free, |
| Isola, Taconic, Arlon, Teflon, Rogers, | |
| Max. Panel Dimension | 39000mil * 47000mil (1000mm * 1200mm) |
| Outline Tolerance | ± 4mil (± 0.10mm) |
| Board Thickness | 8mil-236mil (0.2 - 6.0mm) |
| Board Thickness Tolerance | ± 10% |
| Dielectric Thickness | 3mil-8mil ( 0.075mm-0.20mm) |
| Min. Track Width | 3mil ( 0.075mm ) |
| Min. Track Space | 3mil ( 0.075mm ) |
| External Cu Thickness | 0.5 OZ - 10 OZ ( 17um - 350um) |
| Internal Cu Thickness | 0.5OZ - 6OZ ( 17um - 210um) |
| Drilling Bit Size ( CNC ) | 6mil-256mil ( 0.15mm - 6.50mm) |
| Finished Hole Dimension | 4mil-236mil(0.1mm - 6.0mm) |
| Hole Tolerance | ± 2mil (± 0.05mm) |
| Laser Drilling Hole Size | 4mil(0.1mm) |
| Aspect Ration | 16: 1 |
| Solder Mask | Green, Blue, White, Black, Red, Yellow, Purple, etc. |
| Min Solder mask Bridge | 2mil(0.050mm) |
| Plugged Hole Diameter | 8mil-20mil ( 0.20mm-0.50mm) |
| Beveling | 30o - 45o |
| V-scoring | +/-0.1mm, 15o 30o 45o 60o |
| Impedance Control | Min. 5% General ± 10% |
| Surface Finishing | HASL, HASL(lead Free), Immersion Gold |
| Immersion Silver, OSP, Hard Gold ( up to 100u" ) | |
| Certification | UL RoHS ISO9001: 2000 ISO14000: 2004 SGS |
| Testing | Flying probe, E-TEST, X-RAY Inspection , AOI |
| Files | Gerber Protel DXP Auto CAD PADS OrCAD Express PCB etc |
Q1: What's your minimum order quantity?
A1: Our MOQ is not the same based on different items. Small orders are also welcome.
Q2: what file we should offer?
A2: PCB:Gerber file is better,( Protel ,power pcb,PADs file), PCBA : Gerber file and BOM list.
Q3: What any other information should be offered except for file?
A3:Following specifications are needed for quotation:
a) Base material
b) Board thickness:
c) Copper thickness
d) Surface treatment:
e) color of solder mask and silkscreen
f) Quantity
Q4: I am very satisfied after I read your information, how can I start to purchase my order?
A6: Please click the "send" at the bottom of this page or contact our sales on Trade Manage online!
How to Contact Us?
Would like to know more about the product? Send us inquiry, click "Send" now!
More information about PCB, pls contact with us!
Cellphone: +8618244970526
